Stone Washing Machine Roller Stone Washer Drum Type Washing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-GTX 1542 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Export standard wooden case packing or full container loading |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Product Name: | Drum Washing Machine | Diameter: | 4.5x4.2m |
|---|---|---|---|
| Capacity: | 100t/h | Powder: | 11kw |
| Weight: | 5000kg | Condition: | New |
| Voltage: | 380V | Drum Rotary Scrubber: | Rotary Scrubber |
Product Description
Stone Washing Machine Roller Stone Washer Drum Type Washing Machine
Product Description:
Drum stone washing machine widely used in construction, road and railway construction, prefabricated component factories and other industries.
The drum stone washing machine is an autogenous rotating drum scrubber, utilizing pebbles and rocks within The feed source to fracture and disintegrate clays, Agglomerates and soft oxides.
The scrubber spins slowly, similar to a giant washing machine. It churns The fines and oversize and water together, Vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist 's and rock.
Specification:
| Model | Diameter | Capacity | Throughput | Cylinder speed | Powder | Weight |
| GTX 1542 | 4.5*4.2 | 100 | 40-80 | 30 | 11 | 8500 |
| GTX 2245 | 2.2*4.5 | 150 | 80-120 | 25 | 18.5 | 14500 |
| GTX 1880 | 1.8*8.0 | 180 | 100-250 | 21 | 22 | 21000 |
| GTX 2212 | 2.2*12 | 230 | 160-250 | 18 | 55 | 27630 |
| GTX 2514 | 2.5*14 | 260 | 250-380 | 16 | 75-90 | 32600 |
| GTX 3015 | 3.0*15 | 350 | 400-500 | 15 | 110-132 | 55860 |
Main structure of drum stone washing machine:
1. Drum:For washing the clay,stone etc.
2. Inner plate: separating the clay and ores.
3. Sieving screen: for sieving different sizes ores, the screen mesh size& layer quantity & screen materials can be made according to customer need.
4. Motor: electric or diesel according to your needs.
5. Carrier rollers: For support the drum
6. Gear, Reduction Box, coupling.
Advantage of drum type washing machine:
1.Good function of washing clay, screening ores.
2.High production capacity efficiency.
3.Low operating cost, easy maintenance and low noise.
4.The length &diameter of drum, screen mesh, layer quantity of screen can be customized.

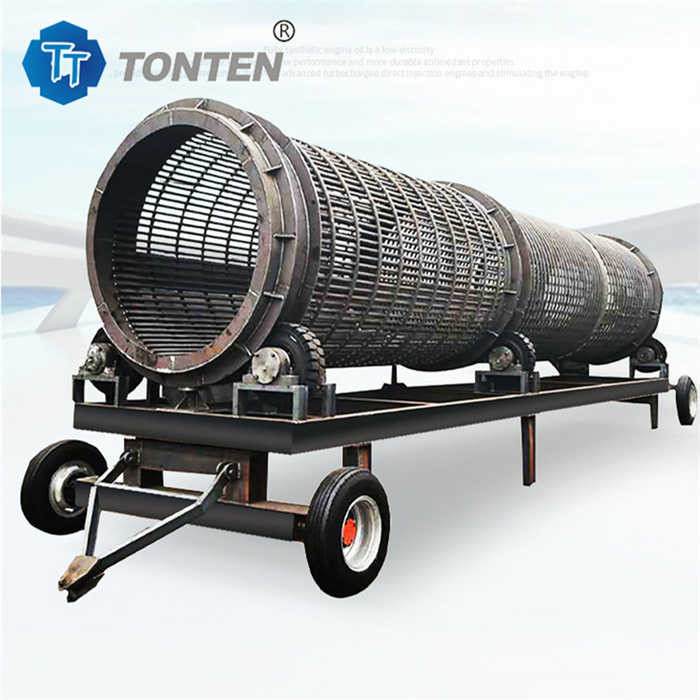

5.Can be make mobile type or stationary type.
6.Can Operating with other machines.
7.Can be with electic motor or diesel generator.

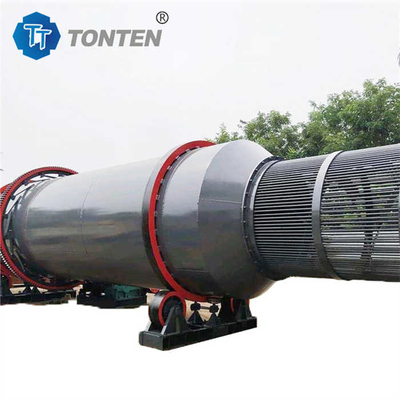

TONTEN drum stone washer machine uses the rotating cylinder and the internal scraper as well as the pebbles and rocks in the material to decompose clay, lumps and soft oxides. The drum of the drum stone washer rotates slowly, and the materials of different coarseness and fineness are stirred together at the same time, effectively releasing the useful minerals from the muddy soil and clay. After being evenly dispersed, the slurry-like material is sent to the tail end by the cylinder and discharged from the overflow port to the conical screen for screening. The conical screen excludes materials with a particle size larger than the useful minerals, and the slurry under the screen can directly enter various mineral processing equipment.
FAQ:
Q: What is the payment terms ?
A: prepayment by T/T , after the seller finish the production process and buyer verify the machine , balance should paid before delivery.
Q: How long is the delivery time of your machine?
A: The delivery time is within 20-30 working days. However, many machince we have many in stock!
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be
extened.
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
