Scrap Metal Crusher Multifunctional Metal Crusher Scrap Shredder Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-SC800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Export wooden packing/container |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Type: | Scrap Shredder,Scrap Metal Crusher | Max Feeding Size: | 2.0*0.8m |
|---|---|---|---|
| Dimension: | 4.2*3.6*2.8 | Output: | 8-10t/h |
| Power: | 75kw | Coverage: | 60m² |
| Weight: | 8900kg | Application: | Recycle Waste Metal |
Product Description

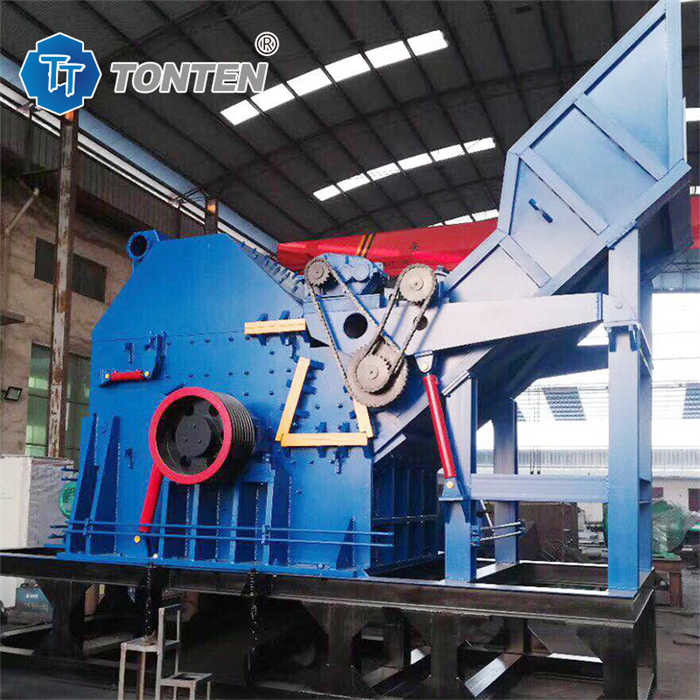

Scrap Metal Crusher Multifunctional Metal Crusher Scrap Shredder Machine
Product Description:
Scrap shredder scrap crusher machine suitable for crusher all kinds of large-scale scrap steel to achieve the effect of reducing volume and selecting scrap metal.This type of scrap shredder is impact crushing equipment, which can process all kinds of waste metal such as automobile shell and gasoline barrel into spherical particles. In terms of material purity, the application of this crusher will reduce the content of impurities in materials and realize high selection.
Working Principle
Steel crushing is a processing method that uses a crusher to crush scrap steel and uses a sorting system to sort the crushed scrap steel to obtain pure high-quality scrap steel. Its working principle is that under the continuous drive of a high-speed, high-torque motor, the hammers on the crusher rotor take turns to hit the scrap steel entering the cavity. Under the strong impact, the scrap steel is torn and squeezed into crushed steel of a certain specification, and then processed by the sorting equipment to obtain high-purity high-quality crushed steel.
Specification:
| Model | Power(kw) | Applied range | Speed |
Capacity (t/h) |
Dimensions(mm) |
| TT-SC800 | 37-55 | Can, sheet metal, light metal | 1250 | 0.7-1 | 3800*1600*1800 |
| TT-SC1000 | 45-75 | Small metal packing materials, cans, scrap iron sheet | 1250 | 0.8-1.5 | 2560*1800*2200 |
| TT-SC1300 | 90-150 | Medium sized scrap metal blocks such as bicycles and motorcycles | 860 | 2-4 | 4000*3500*3200 |
| TT-SC1600 | 200-280 | Automobile cutting pieces, paint barrels and other medium-sized scrap metal blocks | 750 | 4-6 | 4800*4000*3800 |
| TT-SC1800 | 220-450 | Scrap cars and other large scrap metal blocks | 650 | 6-10 | 4800*4100*4000 |
| TT-SC2000 | 315-630 | Scrap cars and other large scrap metal blocks | 650 | 8-12 | 5000*4500*4300 |
| TT-SC2200 | 500-900 | Scrap cars and other large scrap metal blocks | 650 | 15-20 | 5000*4500*4300 |
Features:
1.Hydraulic feeding and combined hammer head of throwing hammer and ring hammer are adopted to improve the efficiency compared with other crushers 5%-15%.
2.The unique roller kneading process is adopted to remove the dirt such as paint and form high-density pellet material, which can increase the value by more than 30%.
3.The safety door is set. After the non breakable material enters the crushing chamber, the operator can open the safety door and discharge it out of the machine body to avoid damaging the crusher.
4.PLC control system and hydraulic power system, intelligent production time-saving and labor-saving, to achieve a full set of production line stable, automatic, safe operation.
Application:
Scrap steel shredder crusher is designed to shred wide variety of light and thin material as discarded automobiles, tin plate, household appliances, bicycles, empty cans, etc, making the materials into pure charge for steelmakin.By smashing and compressing,the shredder will remove the impurities, raise density, lower transporting and smelting cost to offer good furnace charge for steel plant.
The effective recycling of scrap metal resources can greatly reduce the exploitation and consumption of natural mineral resources, thereby reducing land occupation, reducing total social energy consumption, saving investment, protecting the ecological environment, and improving labor productivity. Especially today when natural mineral resources are extremely consumed and increasingly scarce, scrap metal resources play an increasingly prominent role in the world economy and sustainable development strategies. Countries around the world are actively and effectively recycling scrap metal resources to appropriately curb the long-term excessive consumption of mineral resources and energy. Scrap steel is the only raw material that can replace iron ore in steel production. Maximizing the development and application of scrap steel resources is an important way for the steel industry to achieve energy conservation and emission reduction, clean production, circular economy, and alleviate the iron ore resource crisis. Scrap steel crushers play a vital role in the recycling of scrap steel resources and have good application development prospects.
Our service:
1) TONTEN offer the solution according to client’s requirement
2) We accept and respect client’s creative idea. We will try our best to integrate client’s idea into the machine with our years of experience into consideration.
3) We accept client’s sample materials sending for test and take videos.
4) We could offer our technical design before the purchase order.
