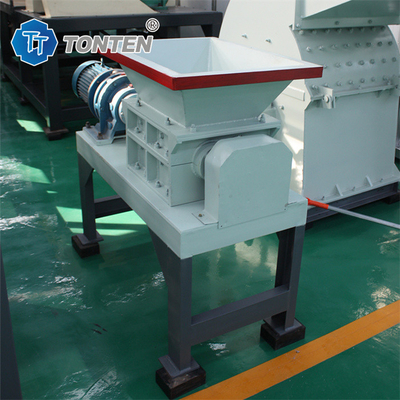

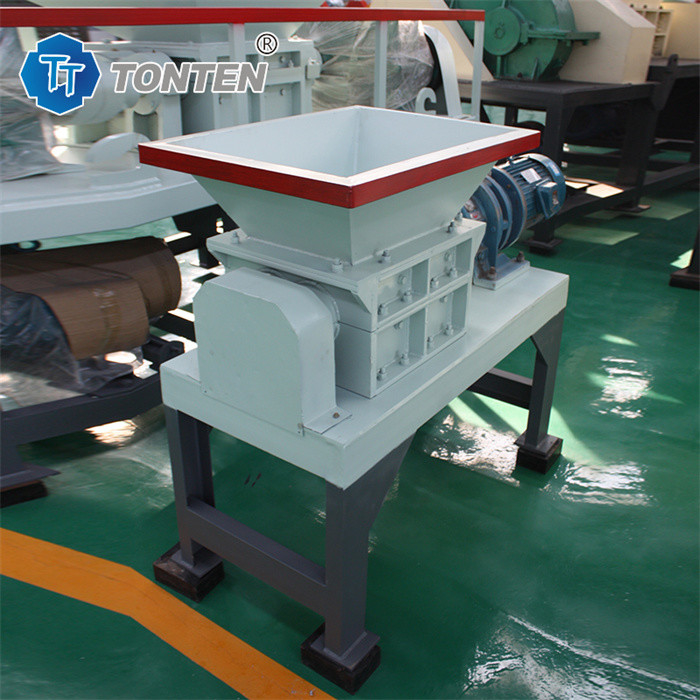

Metal Tire Shredding Machine Rubber Plastic Single Shaft Shredder Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-SS600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | export wooden packing or container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Product Name: | Single Shaft Shredder Machine,shredder Machine | Number Of Cutters: | 30 |
|---|---|---|---|
| Fixed Knife Size: | 300*100 | Number Of Fixed Knives: | 2 |
| Spindle Speed: | 75r | Diameter Of Cutter Plate: | 260mm |
| Rotary Diameter: | 300mm | Application: | Wood, Rubber, Tires, Glass, Plastic, Paper |
Product Description
Metal Tire Shredding Machine Rubber Plastic Single Shaft Shredder Machine
Product description:
The single-shaft shredder mainly composed of a blade spindle, a fixed blade, a bearing box, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an electrical control system. It is mainly used to shred waste materials such as wood, rubber, plastic, and paper.
Working Principle:
The material enters the shredding box through the feeding system. The box is equipped with shredding blades. The push box pushes the material to the vicinity of the blades. The material is torn into small pieces by the shredding blades, squeezed, and sheared, and then discharged from the screen holes.
Features:
1. Wide range of applications, can be used for shredding a variety of materials
2. Suitable for shredding materials with strong entanglement, allowing a small amount of light and thin metal objects in the material
Low tool use and maintenance costs
3. Relatively low price compared to double-axis shredders, three-axis shredders, and four-axis shredders at the same power
Easy to replace the tool
4. The material size can be adjusted according to the size of the screen aperture
Specification:
|
Model |
Movable tool size (mm) |
Number of cutters |
Fixed knife size (mm) |
Number of fixed knives |
Spindle speed |
Diameter of cutter plate (mm) |
Rotary Diameter (mm) |
|
600 |
40*40 |
30 |
300*100 |
2 |
75r |
260 |
300 |
|
800 |
40*40 |
38 |
400*107 |
2 |
75r |
300 |
350 |
|
1000 |
40*40 |
46 |
500*113 |
2 |
75r |
400 |
450 |
|
1200 |
40*40 |
58 |
600*120 |
3 |
75r |
400 |
450 |
Application:
The main materials crushed by single shaft plastic shredder are plastic, machine head material, rubber head material, water spout material, rubber block, plastic, film, agricultural film, mulch film, PP woven bag, ton bag, ton bag, stretch film, trellis film, pipe, PE bottle, daily miscellaneous plastic bottles, plastic tables and stools, foam and so on.
FAQ:
1.How long is your delivery time?
A:Inventory takes 7-10 days, mass production takes 15-30 days.
2.Can you promote our brand on your products?
A:Yes, we can print your logo on the product and packaging.
3.How to ensure the quality of your products?
1) Strict testing is carried out during the production process.
2) Strict sampling inspection shall be conducted on the products before shipment to ensure that the packaging is intact and undamaged.
4.How to obtain free solutions and quotes?
A:Please send us your enquiry, leave your phone number and email and our sales manager will contact you
