Magnetic Separator Iron Remover Drum Iron Sand Magnetic Separator
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-MS7518 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Export standard wooden packaging or container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Product Name: | Magnetic Separator Machine | Diameter: | 750mm |
|---|---|---|---|
| Length: | 1800mm | Rotation Speed: | <35r/min |
| Feeding Size: | 0-3mm | Capacity: | 20-45t/h |
| Power: | 2.2kw | Color: | Customized |
Product Description

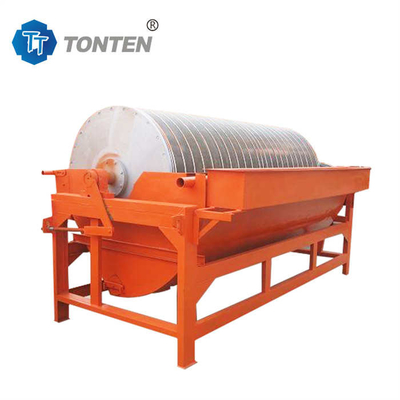

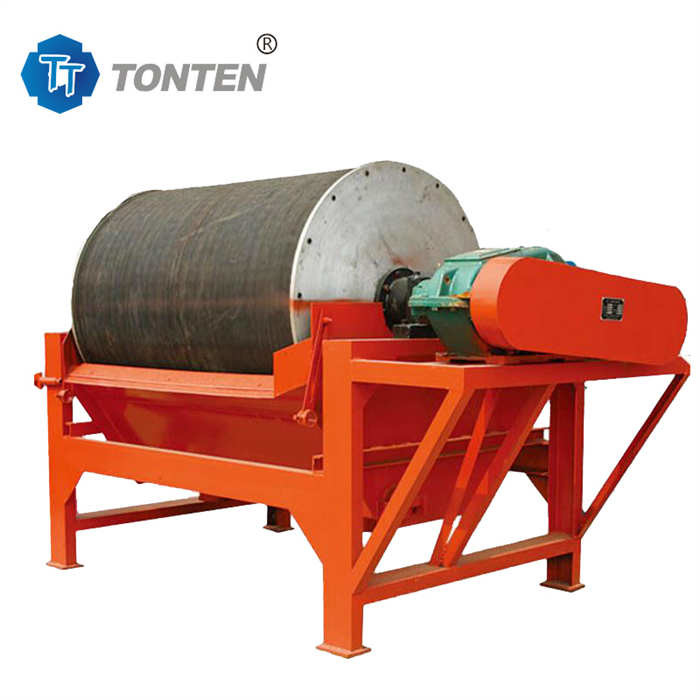

Magnetic Separator Iron Remover Drum Iron Sand Magnetic Separator
Product description:
Magnetic separator is a screening device used to remove iron powder from recycled powdery particles. Since the polarity of the magnetic poles of the ore is arranged alternately along the rotating direction of the cylinder and is fixed during operation, the "magnetic group" or "magnetic chain" produces magnetic stirring due to the alternating magnetic poles when the cylinder rotates. The non-magnetic minerals such as gangue mixed in the "magnetic group" or "magnetic chain" fall off during the turning. Magnetic separators are widely used in resource recycling, wood industry, mine industry, kiln industry, chemical industry, food and other factories. They are suitable for wet magnetic separation of materials such as magnetite, pyrrhotite, roasted ore, ilmenite, etc. with a particle size of less than 3mm. They are also used for iron removal operations of materials such as coal, non-metallic minerals, and building materials. They are suitable for the separation of materials with magnetic differences.
Specification:
|
Model
|
Shell diameter
(mm)
|
Shell lenght
(mm)
|
Shell rotation
speed(r/min)
|
Feeding
size(mm)
|
Processing
capacity(t/h)
|
Power
(kw)
|
|
MS6012
|
600
|
1200
|
<35
|
2-0
|
10-20
|
1.5
|
|
MS6018
|
600
|
1800
|
<35
|
2-0
|
15-30
|
2.2
|
|
MS7518
|
750
|
1800
|
<35
|
2-0
|
20-45
|
2.2
|
|
MS9018
|
900
|
1800
|
<35
|
3-0
|
40-60
|
3
|
|
MS9021
|
900
|
2100
|
<35
|
3-0
|
45-60
|
3
|
|
MS9024
|
900
|
2400
|
<28
|
3-0
|
45-70
|
4
|
|
MS1018
|
1050
|
1800
|
<20
|
3-0
|
50-75
|
5.5
|
|
MS1021
|
1050
|
2100
|
<20
|
3-0
|
50-100
|
5.5
|
|
MS1024
|
1050
|
2400
|
<20
|
3-0
|
60-120
|
5.5
|
|
MS1218
|
1200
|
1800
|
<18
|
3-0
|
80-140
|
5.5
|
|
MS1224
|
1200
|
2400
|
<18
|
3-0
|
85-180
|
7.5
|
|
MS1230
|
1200
|
3000
|
<18
|
3-0
|
100-180
|
7.5
|
|
MS1530
|
1500
|
3000
|
<14
|
3-0
|
170-280
|
11
|
Features:
1. The magnetic separator equipment integrates large cavity Kaizhuang high-performance physical magnet technology, new multi-pointed stainless steel wool material technology, high-power low-voltage high-current rectification technology, PLC electronic control technology and flow, temperature, pressure and other testing technologies. 2. The separation magnetic field is high (, the magnetic field gradient is high, and the magnetic field size can be freely adjusted according to needs.
3. The magnetic separator adopts programmable control, and the entire production process is fully automatically controlled, which is convenient for changing the process flow.
Application:
Magnetic separators can separate many minerals, such as magnetite, limonite, hematite, manganese siderite, ilmenite, wolframite, manganese ore, manganese carbonate ore, metallurgical manganese ore, manganese oxide ore, iron sand ore, kaolin, rare earth ore, etc. The magnetic separation process is achieved in the magnetic field of the magnetic separator by the action of magnetic and mechanical forces on the mineral particles. Mineral particles with different magnetic properties move along different trajectories, thereby being separated into two or several separate mineral processing products.
FAQ:
Q1. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q2. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q3.What about after-sale service?
24 months warranty for all kinds of products; and you will get our 7*24h online service.
