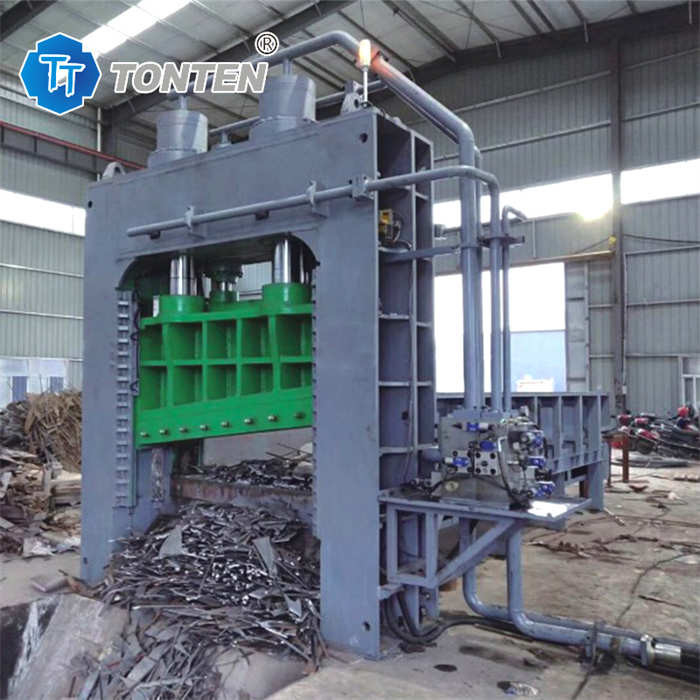

Automatic Scrap Metal Cutting Machine Scrap Car Hydraulic Gantry Shears
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-G91-1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden packaging or container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Features: | Energy Saving | Product Name: | Gantry Shears |
|---|---|---|---|
| Max Cutting Force: | 1250ton | Blade Length: | 2500mm |
| Press Box Size: | 10000x2400x900mm | Capacity: | 20-25t/h |
| Power: | 7x37kw | Application: | Sheet Metal |
Product Description
Automatic Scrap Metal Cutting Machine Scrap Car Hydraulic Gantry Shears
Product Description:
Gantry shears are used for shearing various metal plates and are ideal equipment for processing furnace materials in steel rolling mills, non-ferrous metal plants and smelters.
Specifications of Gantry Shears:
|
Model |
Max Cutting Force (ton)
|
Blade Length (mm)
|
Press Box Size (mm)
|
production Rate (t/h)
|
Power (kw )
|
|
Q91-320
|
320
|
1200
|
6000*1100*500
|
4-7
|
37
|
|
Q91-400
|
400
|
1400
|
6000*1300*500
|
5-8
|
2*30
|
|
Q91-500
|
500
|
1600
|
6000*1300*500
|
8-10
|
3*30
|
|
Q91-630
|
630
|
1800
|
8000*1700*600
|
12-15
|
4*37
|
|
Q91-800
|
800
|
2000
|
8000*1900*700
|
15-20
|
5*37
|
|
Q91-1000
|
1000
|
2200
|
8000*2100*800
|
18-22
|
6*37
|
|
Q91-1250
|
1250
|
2500
|
10000*2400*900
|
20-25
|
7*37
|
Features:
1.Gantry shear uses PLC automatic control and single control or continuous operation
2.Gantry shear can configure scrap metal feeding box with hydraulic motor or cylinder push
3.Gantry shear can configure remote control with high security
4.TONTEN gantry shear can configure feeding box cover. It's better for metal.
Working principle:

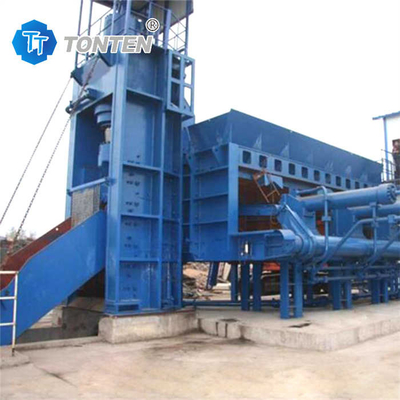

Gantry shear is composed of frame, hydraulic cylinderhydraulic power system and electrical system, In working principle, the wastematerial is automatically sent to the cutting position of the knife edge by conveyorbelt after the material is grabbed to the feeding box. The feeding speed can beadjusted by the speed regulating electric machine. Side extrusion cylinder isinstalled on both sides of the material box. lf large waste materials such as scrapcars cannot cut the knife edge through gantry shear, the waste can be squeezedand reduced by side extrusion cylinder, and then sent to the cutting edge throughthe conveyor platform for cutting.
Applied range:
Gantry shear suitable forcutting and crushing all kinds of scrap plates, bars, ferroalloy charge, special sheet,ship plate, automobile, metal briquette, scrap iron and other scrap steel.
FAQ:
Q1:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.If it is the men-made problems,we also send the spare parts,but you should pay.
Q2:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Q3:Can the machine be customized as our need, such as put on our logo?
A:Surely our machine can be customized as your need, Put on your logo is also available.
