Wet Gold Wet Pan Mill Machine Double Wheel Pan Mill For Gold Selection

Wet Gold Wet Pan Mill Machine Double Wheel Pan Mill For Gold Selection

Product Details:

Place of Origin: China
Brand Name: TONTEN
Model Number: TT-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Export standard wooden box packaging or container
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Wet Pan Mill Machine Power: 5.5kw
Weight: 4500kg Specification: 1000x200x80x250±20
Speed: 17-19r/min Type: Wet Pan Grinding Mill
Dimension: Drawing Is Available Test Report: Provided

Product Description

Wet Gold Wet Pan Mill Machine Double Wheel Pan Mill For Gold Selection



Product Description:
TONTEN Machinery Limited Wet Pan Mill Machine is also called wet mill or wheel mill. Wet Pan Mill Machine is widely used in cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal mineral processing, glass and ceramics and other production industries to perform wet fine grinding of various ores and other grindable materials. The gold grinding machine is an ideal equipment for mineral processing.



Introduce:
Wet pan mill machine is mainly composed of a power unit, a frame, a water basin, a grinding wheel, a disk and other components. It adopts a wheel-driven grinding working method: the electric motor transmits the power to the reducer, and driven by the reducer, the torque is transmitted to the large vertical shaft through the large vertical shaft. The upper horizontal axis is then transmitted to the grinding wheel through the tie rods installed at both ends of the horizontal axis, so that the grinding wheel generates driving force and rotates counterclockwise along the horizontal direction of the horizontal axis; during operation, the wheel can revolve around the large vertical axis of the wet machine. It can also rotate around the central axis of the grinding wheel, while the grinding plate is fixed. The added ore material is subjected to the squeezing force brought by the weight of the grinding wheel in the mill, and the huge friction force generated by the grinding wheel and the grinding plate when the grinding wheel revolves and rotates. After repeated extrusion, rubbing and grinding, it is crushed. Totally shattered. While rolling and kneading minerals, the grinding wheel also has the function of mixing and pulping, fully mixing the materials and water evenly to stabilize various grinding indicators such as slurry concentration; the monomer dissociated mineral fine particles after grinding , in the mixed slurry, is brought to the upper layer of the liquid surface, and is discharged through the overflow discharge port set on the water basin, and enters the next operation process for processing; the coarse-grained minerals settle at the bottom of the grinding plate and continue grinding Crush until fineness reaches standard



Working Principle:
Wet Pan Mill Machine mainly stirs, rolls, and crushes the raw materials. After repeated rolling, the water content is balanced and the proportion is uniform.The motor is driven to the gearbox through the V-belt, and then the gearbox drives the roller, so that the roller runs clockwise. When the raw materials in the water basin rotate with the roller, they will be mixed uniformly with the rotation of the roller. At the same time, the raw materials are rubbed with the grinding roller and the grinding disc, so that the raw materials are stirred-rolled-crushed -rolled repeatedly until they reach a certain fineness and are then discharged with water to achieve the purpose of beneficiation.



Features:
1. Improve the molding rate and molding quality,
2. The finished product has high density, good strength and no pores.
3. Wet Pan Mill Machine is efficient and energy-saving, with high output. Wet Pan Mill Machine used to recycle tailings in the iron ore process to prevent the loss of ore powder and make full use of effective resources.



Technical Parameters:

Model
Specification(mm)
Feed Size
Capacity
Power
Speed
Weight
(mm)
(t/d)
(kw)
(RPM)
(t)
TT-1600
1600×400×200×500±20
≤25
30-35
30
10-12
14.5
TT-1500
1500×350×200×460±20
≤25
20-25
22
10-12
12.3
TT-1400
1400×250×150×350±20
≤25
15
15
10-12
10
TT-1300
1300×250×150×350±20
≤25
10
11
10-12
8.5
TT-1200
1200×200×80×250±20
≤25
8
7.5
12.5
5.0
TT-1100
1100×180×80×250±20
≤25
5
5.5
12
4.0

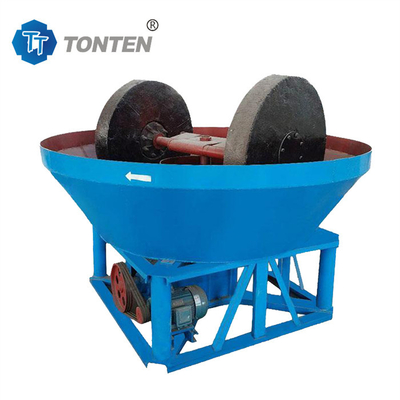

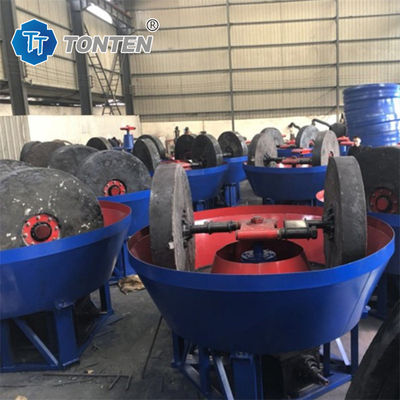

Wet Gold Wet Pan Mill Machine Double Wheel Pan Mill For Gold Selection 0Wet Gold Wet Pan Mill Machine Double Wheel Pan Mill For Gold Selection 1

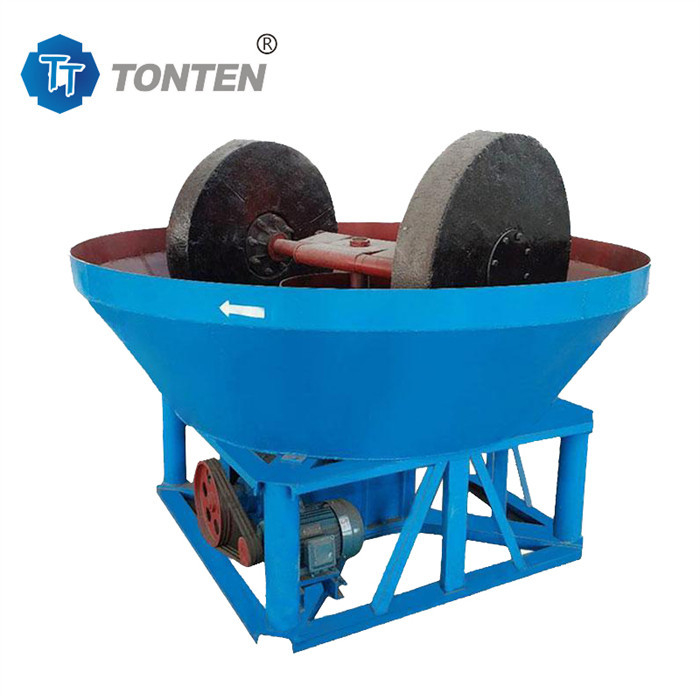

Wet Gold Wet Pan Mill Machine Double Wheel Pan Mill For Gold Selection 2
