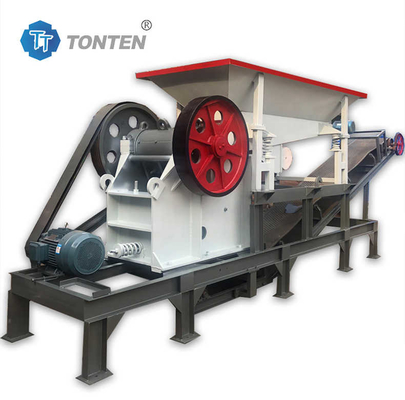

PE400x600 Stone Jaw Crusher Pebble Cement Jaw Crusher Machine
Product Details:
Place of Origin: | China |
Brand Name: | TONTEN |
Model Number: | TT-PE400x600 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Packaging Details: | Packing according to machine size |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T |
Supply Ability: | 30 sets/month |
Detail Information |
|||
Product Name: | Jaw Crusher | Capacity: | 16-65ton/h |
---|---|---|---|
Dimension: | 1730x1730x1630mm | Type: | Mobile Jaw Crusher Machine |
Voltage: | 380v Or Customized | Power: | Diesel,motor |
Advantage: | High Efficiency Low Energy | After Sale Service: | 2 Years |
Product Description
PE400x600 Stone Jaw Crusher Pebble Cement Jaw Crusher Machine
Product Description:
Jaw crusher is common crushing equipment and is widely used in metallurgy, building materials, chemical industry and other industries. The working principle of the jaw crusher is to drive the belt and pulley through the motor, so that the eccentric shaft drives the movable jaw plate to move up and down, thereby crushing the material. After the material enters the crushing chamber, it is crushed into smaller particles by the extrusion and friction of the jaw plate.
Jaw crusher introduction:

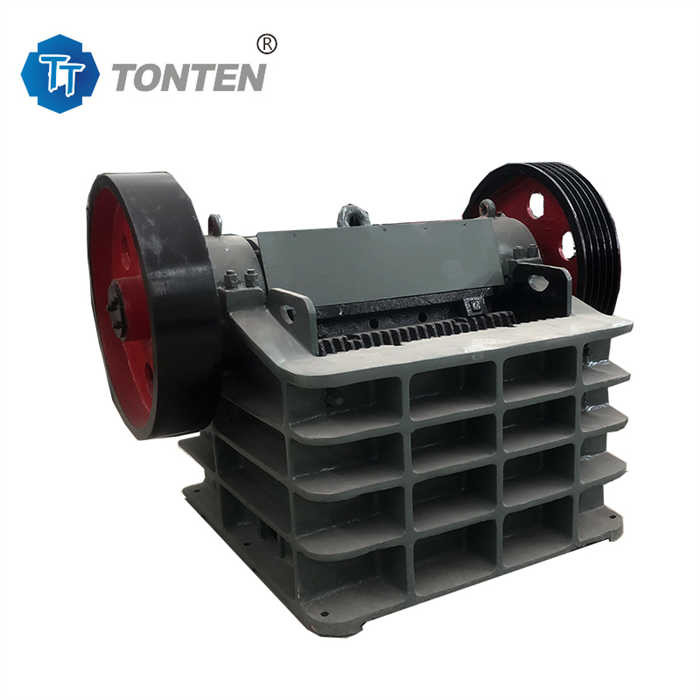

Jaw crusher is a crushing equipment that uses the relative movement of jaw plates to crush materials. It consists of a fixed jaw plate and a movable jaw plate, and the materials are crushed and broken through the relative movement of the jaw plates.
Working principle:
1. After the material enters the jaw crushing cavity, it is squeezed and rubbed by the movable jaw plate and the fixed jaw plate.
2. Through the rotation of the eccentric shaft, the movable jaw moves up and down, causing the material to be crushed and broken.
3. The crushed materials are discharged through the discharge port.
Applicable materials:
Jaw crusher is suitable for crushing ores, rocks,brick and other materials of various hardness and strength, including but not limited to limestone, quartz stone, gypsum, coal, ore, etc.
Features:
1. Simple structure: The jaw crusher consists of a small number of parts, has a simple structure, and is easy to manufacture and maintain.
2. Low energy consumption: The energy consumption of the jaw crusher is relatively low, saving energy.
3. Large crushing ratio: Jaw crusher has a high crushing ratio and can break materials into smaller particles.
4. Strong adaptability: Jaw crusher is suitable for materials of various hardness and strength and has strong adaptability.
Advantage:
1. Good stability: The jaw crusher has a stable structure, small vibration and low noise during operation.
2. Efficient crushing: Jaw crusher has high crushing efficiency and can quickly break materials into the required particle size.
3. Easy maintenance: The maintenance of the jaw crusher is relatively simple, and it is easy to clean and replace worn parts.
Specification:
Model | Max feed size | Inlet size | Capacity | Weight | Dimension |
PE-150x250 | 125mm | 150x250 | 1-3t/h | 0.8T | 720x680x850mm |
PE-250x400 | 210mm | 250x400 | 5-21t/h | 2.8T | 1300x1090x1270mm |
PE-400x600 | 340mm | 400x600 | 16-64t/h | 7T | 1730x1730x1630mm |
PE-600x900 | 500mm | 600x900 | 50-160t/h | 17T | 2790x2206x2300mm |
PE-900x1200 | 750mm | 900x1200 | 220-380t/h | 52T | 3380x2870x3300mm |
PE-1000x1200 | 850mm | 1000x1200 | 315-500t/h | 88T | 3480x2876x3500mm |
PE-1200x1500 | 1500mm | 1200x1500 | 400-800t/h | 120T | 4200x3300x3500mm |
