Cement Quartz Ball Mill Ceramic Non-Ferrous Metal Drum Ball Mill

Cement Quartz Ball Mill Ceramic Non-Ferrous Metal Drum Ball Mill

Product Details:

Place of Origin: China
Brand Name: TONTEN
Model Number: BM-900x1800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Export wooden packing or in container
Delivery Time: 7-10work days
Payment Terms: T/T
Supply Ability: 20 Sets per month
Get Best Price Contact Now

Detail Information

Key Words: Ball Grinding Mill Machine Power: 18.5kw
Feed Size: ≤20mm Machine Weight: 3100kg
Applicable Material: Ore, Gold, Silver, Copper And Various Metal Mineral Processing, Cement, Fertilizers, Silicate Products, Refractory Materials, Glass Spare Parts Supply: Lifelong Provide
Color: Customer Requirement Our Market: Africa, America, Italy, Australia, Turkey, Indonesia, India, Mexico, Etc.

Product Description

Cement Quartz Ball Mill Ceramic Non-Ferrous Metal Drum Ball Mill



Product Description:
Ball mills are mainly composed of a simplified body, grinding media, transmission devices and feeding devices. Ball mills are widely used in powder processing in cement, steel, ceramics and other industries. The basic principle is to drive the grinding media (such as steel balls, limestone, etc.) through the rotation of the cylinder. ) movement, thereby impacting and grinding the material to achieve the purpose of refining particles and improving material performance.



Classification Of Ball Mill:
Depending on whether the cylinder rotates or not, ball mills can be divided into two types: horizontal ball mills and vertical ball mills. Horizontal ball mills are a common type in which the barrel is placed horizontally and can rotate, while vertical ball mills have a barrel that is placed vertically and can rotate.
According to the different grinding media, ball mills can be divided into two types: steel ball mills and baseball ball mills. The steel ball ball mill uses steel balls as the grinding medium and is suitable for grinding harder materials; the baseball ball mill uses baseballs as the grinding medium and is suitable for grinding soft materials.



Advantage:
1. TONTEN Machinery Limited ball mill can greatly improve grinding efficiency and reduce production costs.
2. The ball mill adopts a new energy-saving design to minimize energy consumption.
3. During the grinding process, the ball mill will not produce any pollutants and waste gas, and meets environmental protection requirements.

4. Ball mills have high capacity can process large amounts of raw materials in batches, thereby improving production efficiency and reducing labor costs.

5.The ball mill can grind the raw materials into the required fineness, with high grinding precision and high grinding effect.

6.Ball mill can operate normally under different conditions such as temperature, humidity and altitude, and is adaptable to a variety of materials

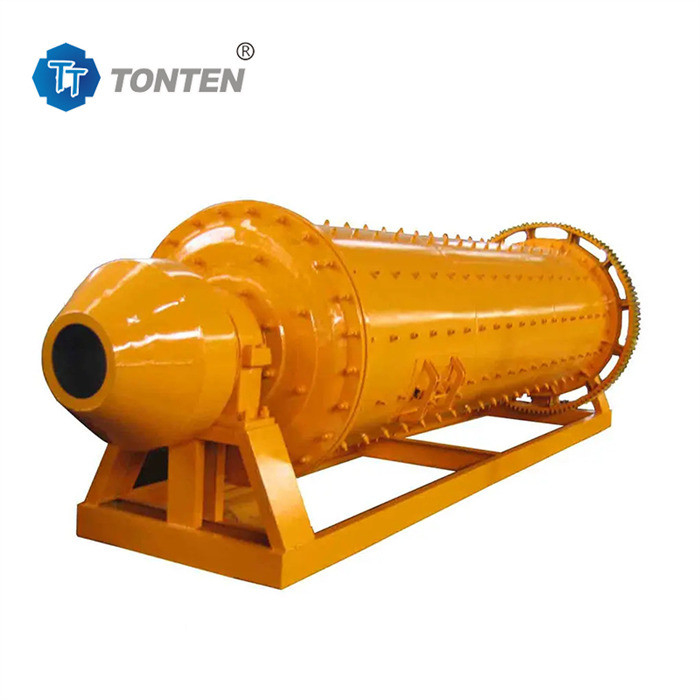

Cement Quartz Ball Mill Ceramic Non-Ferrous Metal Drum Ball Mill 0



Application:
In the cement industry, the ball mill is one of the key equipment for preparing cement. It is used to finely grind limestone, clay and other raw materials into cement clinker; in the steel industry, the ball mill is used to finely grind iron ore and iron concentrate to prepare sinter and Pellets; In the ceramic industry, ball mills are used to finely grind ceramic raw materials to prepare ceramic products.
Ball mills are widely used in cement, steel, ceramics, mineral processing, chemical and other industries. They are mainly used to finely grind various ores and rocks.



Parameters:

Model Speed
(r/min)
Ball load(t) Feeding size(mm) Discharging size(mm) Capacity(t/h) Power(kw) Weght(t)
BM900x1800 36-38 1.5 mm
≤20
0.075-0.89 0.65-2.5 18.5 5.85
BM900x3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.98
BM1200x2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 13.6
BM1200x3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 14.3
BM1200x4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 15.6
BM1500x3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 19.5
BM1500x4500 27 11 ≤25 0.074-0.4 3-6 110 22
BM1500x5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
BM1830x3000 25.4 11 ≤25 0.074-0.4 4-10 130 34.5
BM1830x4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 38
BM1830x6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
BM1830x7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
BM2100x3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 45



Ball Mill Shipping:

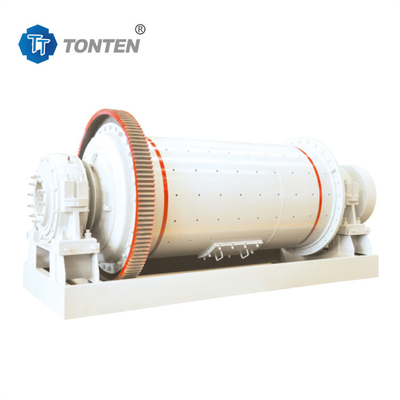

Cement Quartz Ball Mill Ceramic Non-Ferrous Metal Drum Ball Mill 1Cement Quartz Ball Mill Ceramic Non-Ferrous Metal Drum Ball Mill 2
