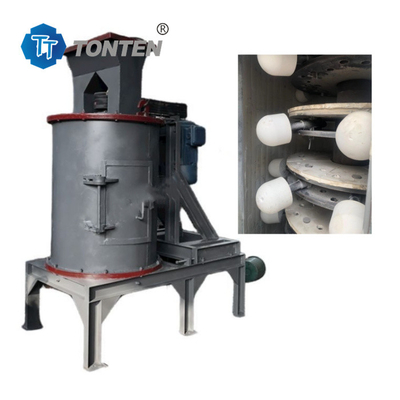

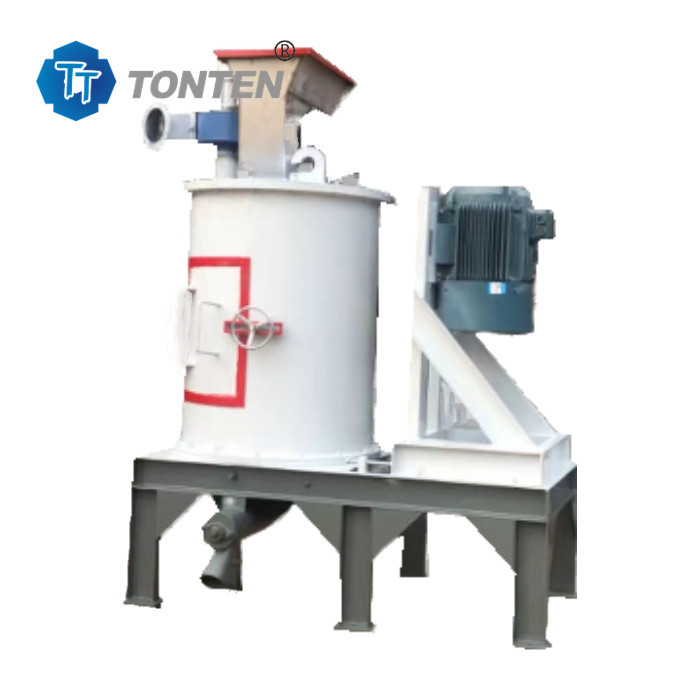

Glass Ceramic Quartz Crushing Machine Iron Free Quartz Rock Crusher
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-IC1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
|
Detail Information |
|||
| Production Capacity: | 25-40t/h | Output Size: | 0.5-5mm |
|---|---|---|---|
| Feed Particle Size: | 100mm | Spindle Speed: | 780r/min |
| Macine Power: | 30kw | Motor Speed: | 980r/min |
| Dimensions: | 2600×1400×1900mm | Name: | Ceramics Crusher Machine,Iron-Free Crusher Machine |
| Highlight: | Glass Ceramic quartz crushing machine,Iron Free quartz crushing machine,Ceramic quartz rock crusher |
||
Product Description
Glass Ceramics Iron-Free Crusher Machine Quartz Crushing Sand Machine
Product Description:
Iron-free crusher is mainly used to crush ceramics, glass, stones, etc. The iron-free crusher is a new type of fine crushing and coarse grinding products developed by optimizing the main technical parameters. It has the characteristics of large crushing ratio, low energy consumption, smooth operation, simple structure, easy operation and maintenance. It is a multi-purpose, high-efficiency, low-cost new crushing equipment, used to crush various medium-hard materials,after crushed material don't contain iron.and ceramic iron-free crusher machine widely used in mining, metallurgy, refractory materials, cement, coal, glass, ceramics, electric power and other industries.
Ceramic crusher machine that uses high-speed rotating hammer to crush ceramic materials. It is crushed into small particles through strong impact force to achieve the purpose of dispersion and granulation.
Working Principle:
Large pieces of iron-free raw materials such as glass or quartz sand fall vertically from the upper part of the machine into the high-speed rotating impeller. Under the action of high-speed centrifugal force, they collide and crush at high speed with other materials that are shunted around the impeller in the form of an umbrella. After impacting each other, the materials will form eddy currents between the impeller and the casing. They will impact, rub and crush each other multiple times, and then be discharged straight from the bottom to form a closed circuit for multiple cycles. The screening equipment will control it to achieve the required finished product granularity.
Features Of Iron-free Crusher:
1. One machine is multi-purpose and has both fine crushing and coarse grinding functions.
2. Simple structure, low operating cost and easy operation,less dust pollution
3. High crushing efficiency and energy saving.
4. It is less affected by the moisture content of the material and can crush moisture-containing materials.
5. The impeller of the iron-free crusher has small self-lining wear, low loss and easy maintenance.
Parameter:
|
Model |
TT-IC600 |
TT-IC800 |
TT-IC1000 |
TT-IC1200 |
TT-IC1600 |
|
|
Spindle speed(r/min) |
1080 |
980 |
780 |
560 |
495 |
|
|
Feed size(mm) |
50 |
70 |
100 |
150 |
200 |
|
|
Discharge size(mm) |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
|
|
Capacity(t/h) |
3-5 |
10-20 |
25-40 |
45-70 |
70-110 |
|
|
Size |
1600×700×1420 |
2200×1230×1760 |
2600×1450×1900 |
2800×1600×2100 |
3100×1900×2200 |
|
Advantage:
1. High production efficiency and can crush a variety of materials
2. No sieve bottom design, the discharge granularity can be adjusted
3. The equipment has a simple structure, stable operation, and easy maintenance. Wearing parts can be replaced by opening the hatch.
