Mining Stone Mobile Portable Crushing Line Diesel Granite Crusher Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-DL1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets per month |
|
Detail Information |
|||
| Vibrating Feeder: | TF360x95 | Crusher: | According To Material:jaw Crusher,hammer Crusher,cone Crusher,etc |
|---|---|---|---|
| Belt: | B1000x11m | Circular Vibrating Screen: | TD1860 |
| Material: | Stone,brick | Power: | 90kw |
| Capacity: | 150-200t/h | Mobile: | Yes |
Product Description
Mining Stone Mobile Portable Crushing Line Diesel Granite Crusher Plant
Product description:

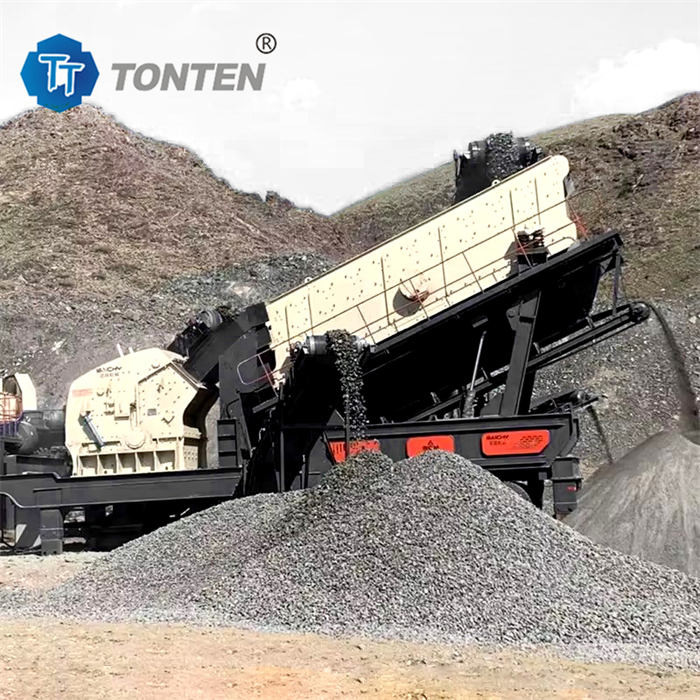

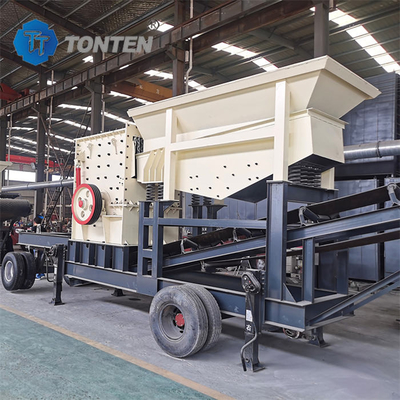

The mobile crushing production line can carry out crushing and screening operations on different construction sites. It has the characteristics of high flexibility and easy movement, and is suitable for scenarios such as mines, construction sites, and waste disposal.
The mobile crushing production line is a mobile crushing equipment that integrates crushing, screening and conveying.
The materials are evenly transported to the crusher through the feeder. After the primary crushing, the materials are sent to the impact crusher for secondary crushing through the conveyor. It can crush more than 200 kinds of materials to meet a variety of finished product specifications.
Work process:
1. Feeding: The raw materials to be crushed enter the crusher feed port through a loader or conveyor.
2. Crushing: The raw materials are crushed into the required particle size through a jaw crusher or other crushing equipment.
3. Screening: The crushed materials are screened through the vibrating screen to separate the materials that meet the requirements. At the same time, the materials that do not meet the standards are returned to the crusher for crushing again.
4. Conveying: The screened finished products are transported to the designated location through the conveyor.
Working principle:
The working principle of the mobile crushing production line is to feed the raw materials into crushing equipment such as a hammer crusher, and crush the raw materials through the high-speed rotation of the crusher to break them into the required particle size. The crushed materials are screened by the vibrating screen to separate the aggregates that meet the requirements. At the same time, the materials that do not meet the standards are returned to the crusher for re-crushing. Finally, the screened aggregate is transported to the designated location through the conveyor
Features:
1. The production line has a compact structure, low requirements for road transportation and loading conditions, and is convenient and quick to change and enter and leave the site.
2. The crushing space environment is sealed to reduce dust spillage and create a green and low-carbon site.
3. Can be matched with dozens of machine models to meet various hardness stone and material crushing requirements
Applicable materials:
1. Stone: such as granite, marble, limestone, etc.
2. Ore: such as iron ore, copper ore, gold ore, etc.
3. Construction waste: such as concrete, bricks, tiles, etc.
4. Coal: including coal gangue and coal residue.
5. Metallurgical slag: such as steel slag, aluminum slag, etc.
Specification:
|
Model |
Circle Vibrating screen |
Crusher |
Belt |
Capacity(t/h) |
Power(kw) |
Lx WxH(mm) |
|
1848x1210 |
3TD1800 |
TF-1210 |
650×7M |
70-300 |
128.5-150.5 |
12500×3000×6500 |
|
1860x1214 |
5TD1860 |
TF-1214 |
650×8M |
90-400 |
154-190 |
13500×3000×6500 |
|
2160x1315 |
6TD2180 |
TF-1315 |
800×8M |
120-450 |
210-297 |
14000×3200×6800 |
