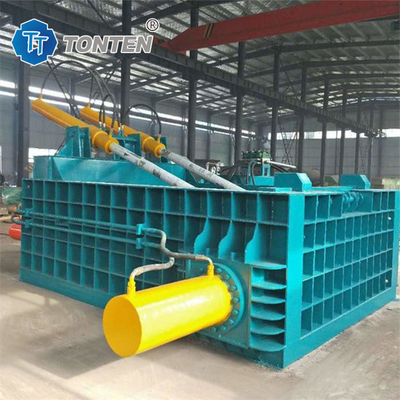

Metal Scrap Paint Bucket Hydraulic Briquetting Machine For Sawdust 4000kg
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT52-4967 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| Minimum Packing Matter: | 450*450*200 (mm) | Packaging Ability: | 3-5tons/hour |
|---|---|---|---|
| Baler Weight: | 4000kg | Motor Power: | 22(kw) |
| Suitable: | Cereals, Sawdust, Wood Shavings | Type: | Pressure Machine |
| Applicable Scene: | Scrapyard Recycling Bin | Custom Processing: | Yes |
| Highlight: | Metal Scrap Hydraulic Briquetting Machine,Sawdust Hydraulic Briquetting Machine,4000kg metal scrap briquetting machine |
||
Product Description
Hydraulic Briquetting Machine Metal Paint Bucket Metal Scrap Briquetting
Hydraulic Briquetting Machine Details
1. Oil cylinder and oil tank: Galvanized oil cylinder will not rust or leak oil. Enlarge the oil tank to improve efficiency.
2.Pure copper motor: Use national standard copper core motor to ensure smooth operation of the machine.
3.Frame welding: the welded appearance is neat and beautiful, the body is strong and does not need to be welded.
4.Thickened plate: The spaced pressure plate is thickened and packed, strong and long-lasting.
5.Operating the electrical cabinet: easy and effortless operation to prevent accidents, safe and convenient one-click start, saving time and effort.
Hydraulic Briquetting Machine Product Introduction
Scrap steel briquetting machine can squeeze various metal scraps (leftovers, shavings, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, scrap cars, etc.) into qualified materials of various shapes such as rectangles, octagons, cylinders, etc. The furnace charge can not only reduce transportation and smelting costs, but also increase the furnace charging speed.
Hydraulic Briquetting Machine Working Principle
Utilizing the property of metal materials that can produce plastic deformation under the action of external forces, the metal materials are given sufficient external forces that can gather and produce permanent deformation, thereby forming tight bundles. Therefore, metals that cannot produce plastic deformation or have very small plastic deformation cannot be directly packaged.
Hydraulic Briquetting Machine Application Scope
Widely used in cans, paint buckets, iron cans, scrap iron, scrap steel, iron sheets, bicycles, color steel tiles, light materials, pig iron, thin iron, Lulu curtain red bull cans, scrap aluminum, scrap copper, iron buckets, car shells, One-time pressing and molding of scrap metals such as car frames, metal scraps, and aluminum alloys.
Hydraulic Briquetting Machine Five Features
1.Various specifications to meet various needs
2.Can be powered by diesel engine
3.Hydraulic drive and all-steel plate welding
4.The size of bales and bins can be customized according to customer requirements
5.Simple and convenient installation without foundation
Hydraulic Briquetting Machine Product Parameters
| model | Nominal thrust (KN) |
Box size (mm) |
Pack size (mm) |
bale weight (Kg) |
Yield (t/h) |
Equipped with power (kW) |
| 63 | 630 | 1000*600*500 | 190*190 | 15~30 | 0.4~0.8 | 7.5 |
| 100 | 1000 | 1000*700*550 | 230*230 | 30~40 | 0.6~1.2 | 11 |
| 125 | 1250 | 1200*700*600 | 300*300 | 50~75 | 1.2~1.5 | 15 |
| 135 | 1350 | 1400*600*600 | 600*240 | 60~80 | 1.5~2.8 | 22 |
| 160 | 1600 | 1600*1000*800 | 400*400 | 110~150 | 2.2~3.0 | 22 |
| 200 | 2000 | 1800*1400*900 | 450*450 | 210~300 | 3.0~5.0 | 22*2 |
| 250 | 2500 | 2000*1750*1000 | 500*500 | 250~280 | 5.0~6.3 | 22*2 |
| 315 | 3150 | 2500*2000*1200 | 500*500 | 250~360 | 4.0~6.5 | 37*2 |
| 400 | 4000 | 3000*2000*1200 | 500*600 | 250~380 | 6.8~8.0 | 45*2 |
