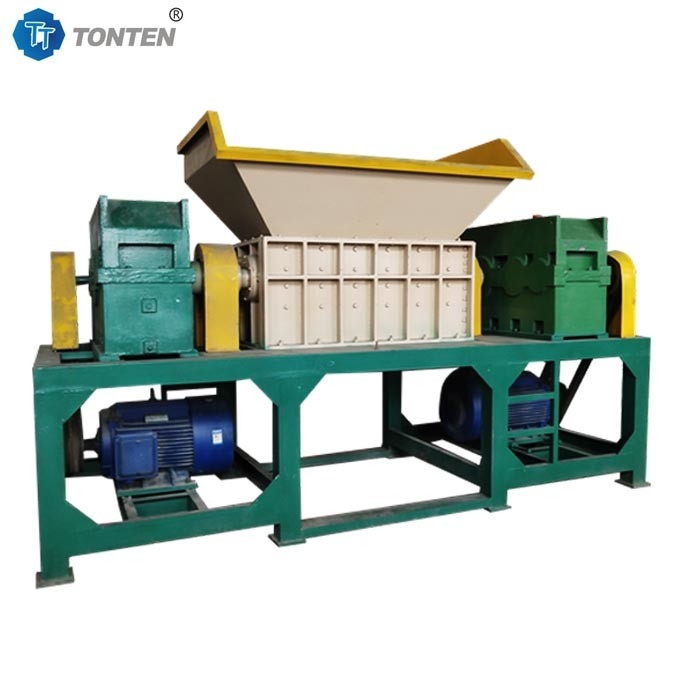

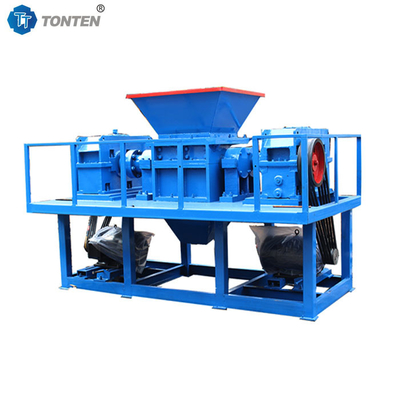

Scrap Metal Double Shaft Shredder Rubber Tire Plastic Shredder Machine
Product Details:
Place of Origin: | China |
Brand Name: | TONTEN |
Model Number: | TT-DS1000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Small models are packed in wooden boxes, large models load in containers |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per month |
Detail Information |
|||
Capacity: | 800-1200kg/h | Installed Power: | 30x2kw |
---|---|---|---|
Shaft Diameter: | 400x50mm | Rotary Blade Number: | 20 |
Fixed Blade Number: | 4 | Dimension: | 3750x1560x3200mm |
Applicable: | Scrap Metal | Item: | Double Shaft Shredder Machine |
Product Description
Scrap Metal Double Shaft Shredder Rubber Tire Plastic Shredder Machine
Shredder machine introduction:
The main structure of TONTEN machinery shredder machine includes motor, reduction gearbox, dual-axis cutter, fixed cutter, cutter shaft, frame, etc. The working principle is: the motor drives the reduction gearbox to drive the cutter shaft to rotate, so that the dual-axis cutter and the fixed cutter are arranged alternately, squeezing the material entering the machine cavity, tearing the material into small pieces, and achieving the purpose of crushing.
Main components of the shredder:
1. Main body: The shredder body is welded with high-quality steel plates to eliminate stress/integrated machining to ensure the stability of the equipment under long-term heavy loads
2. Moving knife/fixed knife: The moving knife material is forged with special alloy tool steel. The overall toughness and hardness are consistent and can be repeatedly repaired and used to ensure cutting performance and service life. The fixed knife is installed in a hook-type manner, making tool maintenance and replacement more efficient.
3. Bearing/seal: The bearing seat adopts a spliced and easy-to-disassemble type, which can quickly remove the moving knife, fixed knife, bearing and other components, making it easy to maintain and replace the tool. The sealing structure of the shredder effectively blocks the contact between the crushed material and grease, and can also protect bearings and gears when handling liquid materials.
4. Knife shaft: Made of high-strength steel, it provides powerful power for cutting with the tool.
5. The output torque of the reducer is higher under the rated load
Features:
1. Bearings are branded bearings, with sealing and blocking effects, and it is easy to replace the cutter
2. Iron frame is thick, can resist high torque, and is very strong
3. Heavy moving knives, high crushing efficiency. Both the moving knives and fixed knives are cast with alloy steel,is strong and durable
4. Blades of the shredder are forged, annealed, heat treated, tempered and heat-insulated, and the shredding effect is remarkable
5. The material is evenly discharged, the size is controllable, the output is large, and the noise is low
Shredder machine parameters:
Model |
DS-800 |
DS-1000 |
DS-1200 |
DS-1500 |
DS-1800 |
Capacity(KG/H) |
400-800 |
600-1200 |
1000-1600 |
1500-2000 |
2000-3000 |
Motor power(KW) |
37 |
30(37)*2 |
45*2 |
55(75)*2 |
75(90)*2 |
Rotary blade number |
16 |
20 |
24 |
30 |
36 |
Fixed blade number |
4 |
4 |
4 |
4 |
4 |
Dimension(mm) |
2200x1480x 2450 |
3750x1560x3400 |
4000x1800x3600 |
5000x2000x4000 |
5200x2200x4200 |
