Cable Shredding Machine Electronic Waste Motorcycle Shredder Clothes
Product Details:
Place of Origin: | China |
Brand Name: | TONTEN |
Model Number: | TT-DS600 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Small models are packed in wooden boxes, large models load in containers |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 30 sets per month |
Detail Information |
|||
Feed Size: | 1000mm | Production Capacity: | 600-800kg/h |
---|---|---|---|
Power Consumption: | 37x2kw | Weight: | 7800kg |
Fixed Blade Number: | 4 | Size: | 3250x1500x2800mm |
Material: | Cable Waste Motorcycle | Type: | Shredder |
Product Description

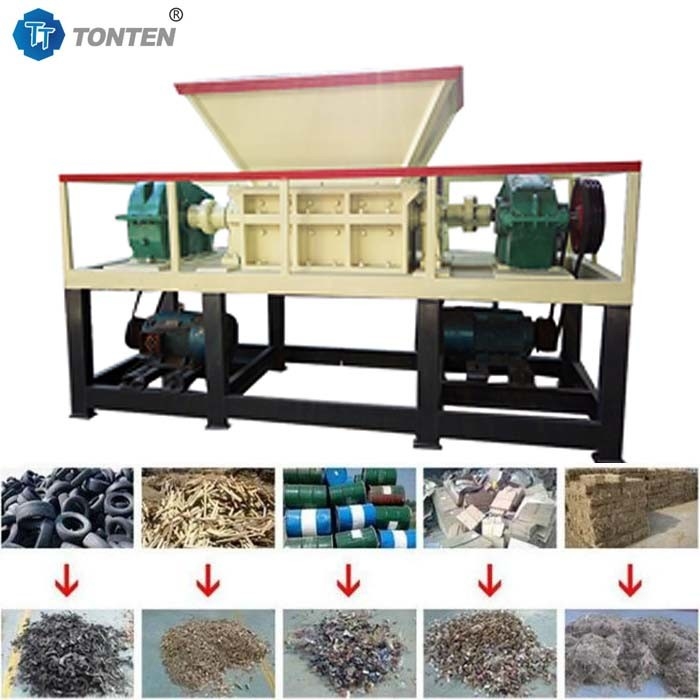

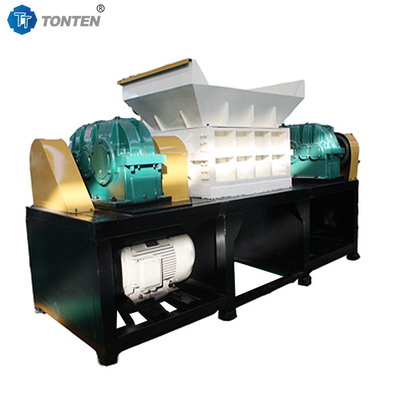

Cable Shredding Machine Electronic Waste Motorcycle Shredder Clothes
Product introduction:
TONTEN machinery double shaft shredder machine is industrial shredder, mainly used for shredding various granular, blocky and fibrous solid wastes. Shredder is an industrial shredder with reliable performance and simple operation, and plays an important role in the recycling of various solid wastes.
Features of shredder machine:
1. Wide applicability: It can be used to shred various plastics, rubber, wood, paper, metal and other wastes. Suitable for factories, waste recycling stations and other occasions.
2. Double-shaft structure: It consists of two high-speed rotating shafts, both of which are equipped with spikes or blades, which can tear and cut the materials in two directions. This structure can shred materials more effectively.
3. Efficient shredding: Through two high-speed rotating shafts, combined with the tearing action of blades or spikes, various solid wastes can be quickly and efficiently shredded into smaller particles.
4. Safe and reliable: Equipped with safety protection devices to avoid material blockage or accidental contact with moving parts.
5. The double-shaft mechanism uses multiple multi-claw knives and cooperates with the knife shaft to change at multiple angles. It saves effort when cutting, has strong cutting force, and exhibits strong crushing ability.
6. The large transmission wheel is made of high-quality steel, hardened by heat treatment, and has a long service life.
7. The double-shaft mechanism uses multiple multi-claw knives and cooperates with the knife shaft to change at multiple angles. It saves effort when cutting, has strong cutting force, and has strong crushing ability.
Working principle of shredder machine:
1. Put the material to be crushed into the double shaft shredder machine feed port.
2. The blades on the two high-speed rotating shafts tear and shear the material to crush it into smaller particles.
3. The crushed material falls into the collection bin through the screen.
4. The whole process is driven by a motor, and the control device automatically monitors the operation.
Shredder machine parameters:
Model |
DS-800 |
DS-1000 |
DS-1200 |
DS-1500 |
DS-1800 |
Capacity(KG/H) |
400-800 |
600-1200 |
1000-1600 |
1500-2000 |
2000-3000 |
Motor power(KW) |
37 |
30(37)*2 |
45*2 |
55(75)*2 |
75(90)*2 |
Rotary blade number |
16 |
20 |
24 |
30 |
36 |
Fixed blade number |
4 |
4 |
4 |
4 |
4 |
Dimension(mm) |
2200x1480x 2450 |
3750x1560x3400 |
4000x1800x3600 |
5000x2000x4000 |
5200x2200x4200 |
