Construction Concrete Crushing Plant Waste Limestone Crusher Cement Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-1800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1. Single machine will be packed in wooden. 2. Whole production line will be loaded into the container directly. |
| Delivery Time: | 15-25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets/Month |
|
Detail Information |
|||
| Feed Size: | ≤800mm | Discharge Size: | 0-10mm |
|---|---|---|---|
| Weight: | 13000kg | Applicable Materials: | Construction Waste |
| Name: | Limestone Concrete Construction Waste Crushing Plant | Processing: | Crushing, Screening |
| Use: | Limestone Concrete | Customized: | Logo,Color |
| Highlight: | Cement concrete crushing plant,Limestone concrete crushing plant,Waste limestone crusher cement plant |
||
Product Description
Limestone Concrete Construction Waste Mobile Crushing Plant Manufacturer
Product introduction:
TONTEN machinery mobile construction waste crushing station is a new type of mobile crushing equipment, which integrates crushing and screening. The whole process runs smoothly, safely and reliably, and can be combined with a variety of equipment to meet different material needs. The mobile construction waste crushing station reasonably solves the current situation of construction waste siege, and reasonably processes construction waste into reusable construction aggregates. It is one of the important basic construction equipment in urban development.
Working principle:

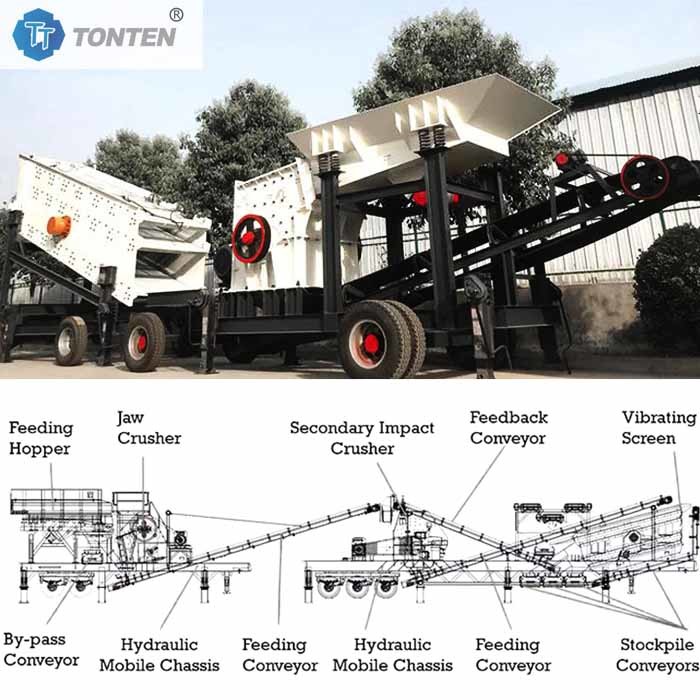

The raw materials are directly fed into the silo by the loader, and then enter the vibrating feeder through the silo. The feeder evenly transports the materials to the crusher for construction waste treatment. The materials crushed by the construction waste crusher are sent to the vibrating screen through the belt conveyor and the iron remover; the crushed materials are screened into three types of materials by the vibrating screen: 0~10 mm materials are transported to the finished product yard through the belt conveyor. Wood and other debris are transported to the waste yard through the conveyor belt. Large materials are sent back to the crusher through the conveyor belt for further crushing.
Features:
1. TONTEN mobile construction waste crushing plant can complete the processing of various needs, integrating feeding, crushing, transmission and other process equipment. Through the optimization of the process flow, it has excellent rock crushing, aggregate production, and open-pit mining crushing performance. The mobile crushing station can form a crushing operation line through the combination of different models to complete the processing operations of multiple needs.
2. Integrated series of mobile crushing stations can be used independently, or they can provide more flexible process configurations according to the customer's requirements for material types and products in the process, meet the user's various requirements such as mobile crushing and mobile screening, make the generation organization and logistics transportation more direct and effective, and reduce costs.
3. Reasonable and compact spatial layout of the mobile crushing station for construction waste improves the flexibility of site stationing.
4. The sorting equipment is equipped with high-sorting capacity iron remover to automatically remove metal impurities, better screen different materials, and protect downstream equipment
Construction waste crushing plant specification:
|
Item
|
TT-1000
|
TT-1200
|
TT-1500
|
TT-1800
|
|
Capacity(tph)
|
80-180
|
100-200
|
200-260
|
300-400
|
|
Crusher Power(kw)
|
55-75
|
110-132
|
110-132
|
160
|
|
Feed Opening(mm)
|
750x500
|
1060x700
|
1060x750
|
1200x800
|
|
Max. Feed Size(mm)
|
500
|
630
|
800
|
980
|
|
Engine Power(kw)
|
75
|
93
|
132
|
175
|
|
Weight(tons)
|
8 |
12
|
20 |
26
|

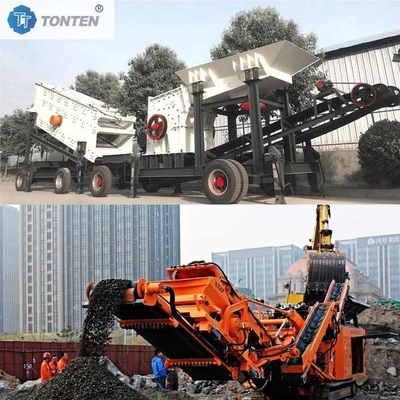

Customer site:
