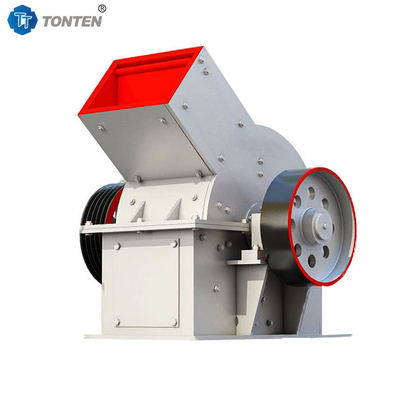

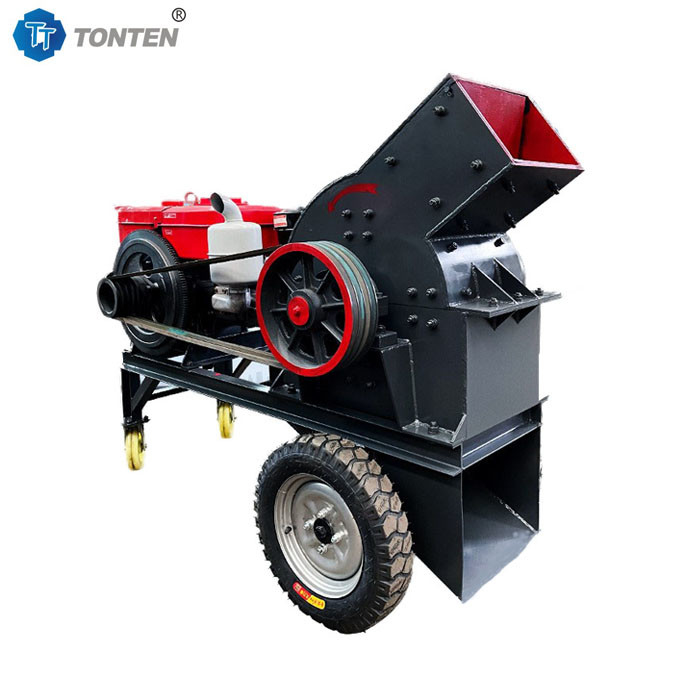

Diesel Hammer Crusher Machine Stone Tile Plaster Crusher Machine

Diesel Hammer Crusher Machine Stone Tile Plaster Crusher Machine

Advantages:
1. The hammer head is cast with a new process, which is wear-resistant and impact-resistant, with few vulnerable parts and easy maintenance.
2. The process is simplified, with one-time feeding, no need for primary and secondary crushing, high output, reliable performance, and large processing capacity.
3. The large-scale hammer crusher is equipped with a hydraulic hammer shaft device, which is convenient for replacing the hammer head and hammer shaft, saving time and effort.
4. The hammer crusher can crush wet materials, and the work is not affected on rainy days, solving the problem of easy blockage, easy jamming, and low output of traditional hammer crushers.

Working principle:
The working principle of hammer crusher relies on the high-speed rotation and impact force of the hammer head,crushes material into required particle size through continuous impact and crushing. The gravity of material itself causes material to rush from the high-speed rotating hammer head to the baffle and screen bar in the frame. The material larger than size of the screen hole is retained on the screen plate and continues to be hit and ground by the hammer until it is crushed to the required discharge particle size and finally discharged from the machine through screen.

Hammer crusher machine specification:
