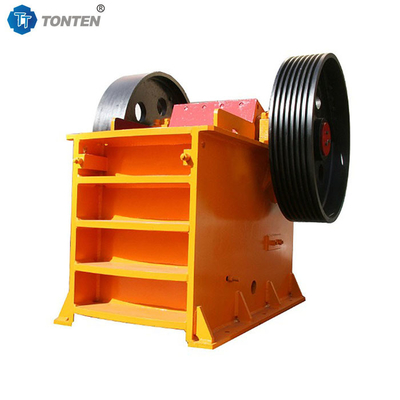

PE Stone Jaw Crusher Machine Mining Ore Pebble Jaw Crusher Portable
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-PE600x900 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing according to machine size |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Processing Capacity: | 110-320t/h | Feed Size: | 600mm |
|---|---|---|---|
| Discharge Size: | 70-200mm | Power: | 45kw |
| Weight: | 18500kg | Application: | Mining Ore Pebble |
| Spindle Speed: | 300r/min | Warranty: | 24 Month |
Product Description
PE Stone Jaw Crusher Machine Mining Ore Pebble Jaw Crusher Portable
Working principle:

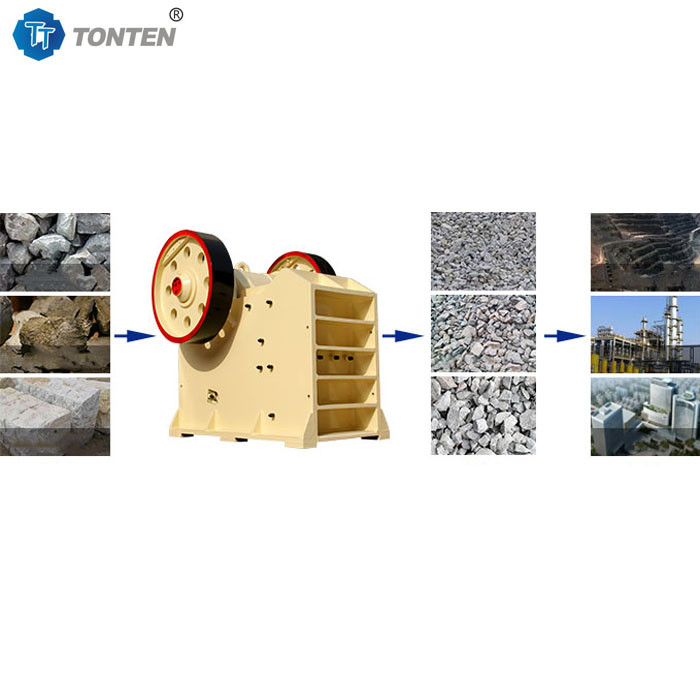

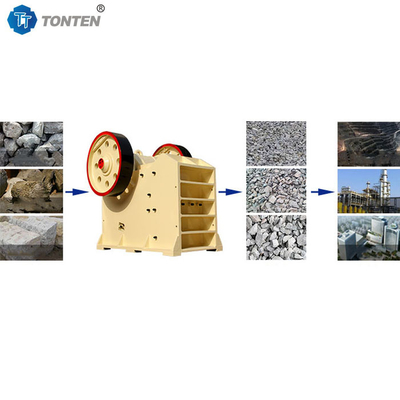

TONTEN machinery jaw crusher machine relies on the periodic reciprocating motion of the movable jaw plate to crush the material between the two jaw plates. The working mode is extrusion type. The motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the plate and the jaw increases, thereby pushing the jaw plate closer to the fixed jaw plate. At the same time, the material is crushed to achieve the purpose of crushing. When the movable jaw moves downward, the angle between the toggle plate and the movable jaw decreases. Under the action of the pull rod and spring, the movable jaw plate leaves the fixed jaw plate. At this time, the crushed material is discharged from the crushing cavity. As the motor rotates continuously, the movable jaw of the crusher periodically crushes and discharges materials
Jaw crusher machine features:
1. Manganese steel material is more wear-resistant and prolongs service life
2. Diesel engine power is suitable for sites where electricity is inconvenient.
3. The steep toggle plate inclination design makes the stroke at the bottom of the crushing chamber larger, the throughput capacity is stronger, and the crushing efficiency is high
4. The flywheel design of the jaw crusher effectively reduces vibration, makes the machine run smoothly, and improves work efficiency
5. Wide range of applications: jaw crushers are suitable for crushing various ores and rocks, such as limestone, coal, iron ore, cement, etc.
6. The parts of the jaw crusher are easy to disassemble and replace, and maintenance and repair are convenient, which can shorten downtime and improve production efficiency.
7. The jaw crusher has high crushing efficiency quickly crush large pieces of material into small pieces,improving production efficiency.
8. Jaw crusher has low energy consumption, less noise and dust generated during operation, meets environmental protection require.
Specification:
Model | Feeding size(mm) | Capacity(t/h) | Discharge size(mm) | Power(kw) | Weight(kg) |
pe150x250 | 125 | 1-3 | 10-40 | 5.5 | 1180 |
pe200x300 | 180 | 2-6 | 15-50 | 7.5 | 1250 |
pe200x350 | 180 | 3-10 | 18-60 | 11 | 2560 |
pe250x400 | 210 | 5-20 | 20-80 | 15 | 3570 |
pe400x600 | 340 | 14-36 | 40-100 | 37 | 5800 |
pe500x750 | 425 | 30-80 | 50-120 | 45 | 9000 |
pe600x900 | 500 | 56-192 | 75-200 | 75 | 18500 |
