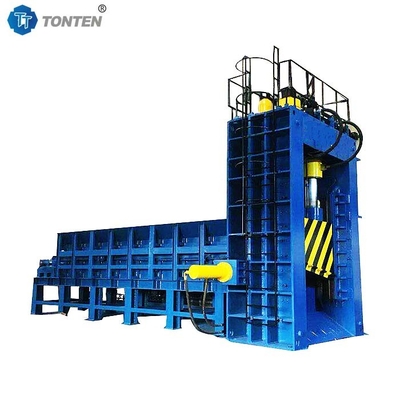

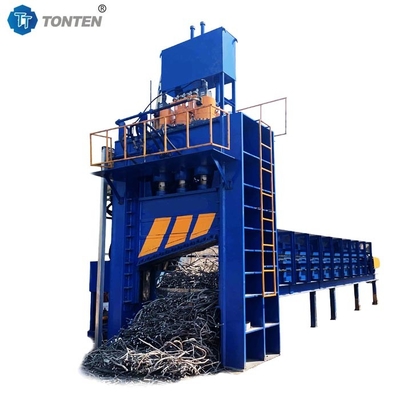

Scrap Metal Iron Cutting Hydraulic Gantry Shears Machine Gantry Shearing
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-G180x600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packaging or container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Capacity: | 15-20t/h | Length Of Knife Edge: | 2000mm |
|---|---|---|---|
| Inside Diameter Of Shear Cylinder: | 360mm | Tank Size: | 8000x1560x700mm |
| Power: | 55x4kw | Shear Range: | Scrap Metal Iron |
| Shear Frequency: | 3-4times/min | Item: | Gantry Shears |
Product Description
Scrap Metal Iron Cutting Hydraulic Gantry Shears Machine Gantry Shearing
Product introduction:
Gantry shears suitable for various metal plates and heavy scrap steel shearing. suitable for crushing heavy scrap and entangled materials that cannot be processed by scrap steel crushing, such as steel, steel bars, steel plates, nickel plates, steel plates, round steel, steel pipes, scrap copper, scrap steel, scrap iron, light metal structural parts, stainless steel, metal briquettes, aluminum alloys, copper materials, iron filings, steel wires, automobiles, metal briquettes, etc. The gantry shears use new electro-hydraulic control system and a reinforced oil cylinder.
Working principle
The hydraulic transmission device of the gantry shear drives the punching mechanism and the shearing mechanism. After the material is grabbed into the feeding box through the automatic feeding box, the waste material is automatically sent to the cutting position of the blade by the conveyor belt. The feeding speed can be adjusted by the speed regulating motor. The shearing mouth of the steel plate cutter is composed of two blades, the lower blade is mostly fixed blade, upper blade is mostly movable blade. After the scrap iron enters the blade, the stamping device presses the scrap iron down and fixes it, and then the upper blade moves downward to cut the scrap iron. After cutting, the upper blade and the punching mechanism return to their original positions and wait for the next shearing process.
Specifications of Gantry Shears:
|
Shear cylinder
|
The inside diameter of the cylinder
|
360MM
|
route
|
1100MM |
640T
|
|
full thrust
|
320KN
|
quantity
|
2
|
||
|
Press cylinder
|
The inside diameter of the cylinder
|
160MM
|
route
|
1200MM
|
120T
|
|
full thrust
|
60KN
|
quantity
|
2
|
||
|
Fast cylinder
|
The inside diameter of the cylinder
|
180MM
|
route
|
1100MM
|
80T
|
|
full thrust
|
80KN
|
quantity
|
1
|
||
|
Tank cover cylinder
|
The inside diameter of the cylinder
|
100MM
|
route
|
400MM
|
240T
|
|
full thrust
|
20KN
|
quantity
|
12
|
||
|
Tank size
|
8000X1520X600MM (L X W X H) can be lengthened
|
||||
|
Application material
|
aluminum alloys, copper, iron, steel,automobiles,metal
|
||||
