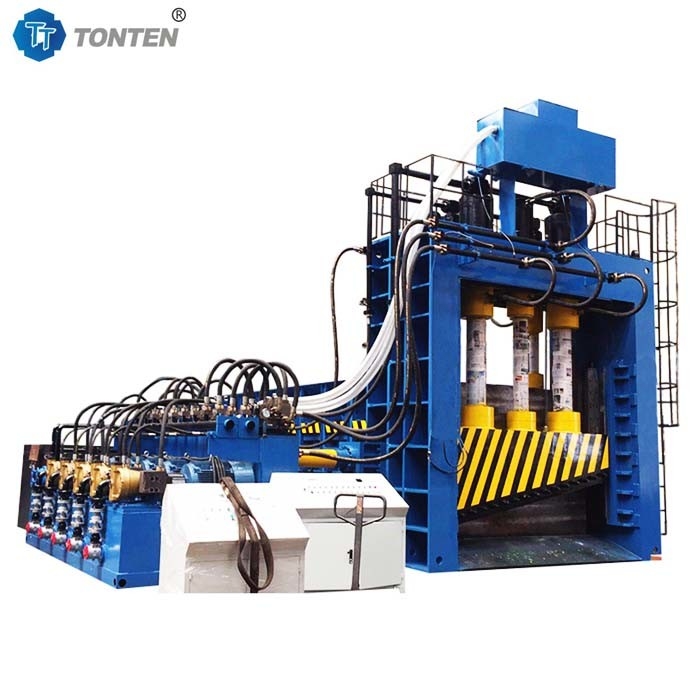

Gantry Shear Machine Hydraulic Scrap Metal Shear Cutting Guillotine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-G15x90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packaging or container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Production Rate: | 12-15t/h | Rated Powe: | 45x3kw |
|---|---|---|---|
| Max Cutting Force: | 250t | Color: | Customer Choose |
| Cutting Material: | Metal Stainless Steel Carbon Steel | Max Thichness Of Shearing Plate: | 28×1200mm |
| Shearing Time: | 3-4times/min | Product: | Gantry Shear Machine |
Product Description

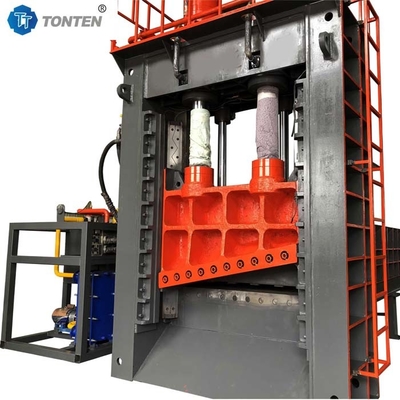

Gantry Shear Machine Hydraulic Scrap Metal Shear Cutting Guillotine
Product introduction
TONTEN machinery gantry shears are mechanical equipment used to cut and shear thick metal plates. They are mainly used for assembly line operations of thick plates such as steel billets and steel plates. The body structure of the gantry shear is similar to that of a gantry crane, consisting of a gantry frame, a scissor body, an electrical system, and a transmission system. It adopts a cantilever structure or a closed structure. The large hydraulic gantry shear is a high-precision metal material cutting equipment, mainly composed of a mechanical part and an electrical control system.
Gantry shears are scrap metal shearing equipment. The equipment hopper automatically pushes the material, and the automatic shearing has high production efficiency, is easy to operate, has high shearing efficiency, and has a wide range of shearing materials. The operator controls the operation of the entire machine through remote control.Gantry shears machine is a crushing device for recycling scrap iron and scrap metal.
Advantages:
1. Hydraulic gantry shear adopts hydraulic-electric integrated control, which can realize single and automatic work conversion, and can start and stop at any working position. It is easy to realize overload protection.
1. TONTEN machinery gantry shear machine is equipped with a large air volume air cooler to effectively control the hydraulic oil temperature. At the same time, the air cooler solves the problem of large footprint and inconvenient water source of the water cooler
2. When the material of the push chute with pressure cover is too loose, the waste material can be squeezed and reduced by the side extrusion cylinder, and then sent to the shearing blade through the conveyor table for cutting
3. The hydraulic gantry shear machine adopts hydraulic transmission. Compared with the mechanical transmission shearing machine, it has the characteristics of small inertia, low noise, stable movement, flexible operation, and large shearing section.
4. The slideways on both sides of the knife frame are lubricated with white oil, and the slideway material is made of high-radium steel wear-resistant material, which is durable.
5. Hydraulic gantry shearing machine has compact structure, the fuselage is welded with steel plates, and the mechanical performance is stable. The gantry shear adds a front plate guide device to improve the stress condition of the whole machine. Adopting electro-hydraulic control, it can realize inching and linked automatic circulation.
Gantry shear parameters:
|
Rated Powe
|
45x3kw
|
|
Cutting Frequency
|
3-4times/min
|
|
Max cutting force
|
250T
|
|
Production rate
|
12-15t
|
|
Color
|
Customized
|
|
Cutting material
|
Metal Stainless Steel Carbon Steel
|
