Hydraulic Gantry Shear Scrap Metal Motorcycle Cutting Gantry Shear
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-G20x680 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packaging or container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Capacity: | 25-30t/h | Motor Power: | 45x2kw |
|---|---|---|---|
| Material Thickness Range: | 0-600mm | Slice Thickness: | 50mm |
| Cutting Speed: | 2-6m/s | Dimensions: | 5000x2100x2600mm |
| Applied Materials: | Scrap Metal Motorcycle | Manufacturer Support: | Color, Output Customization |
Product Description

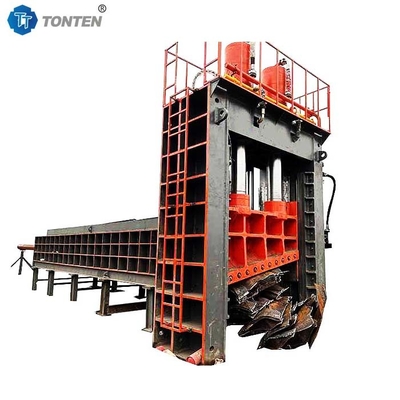

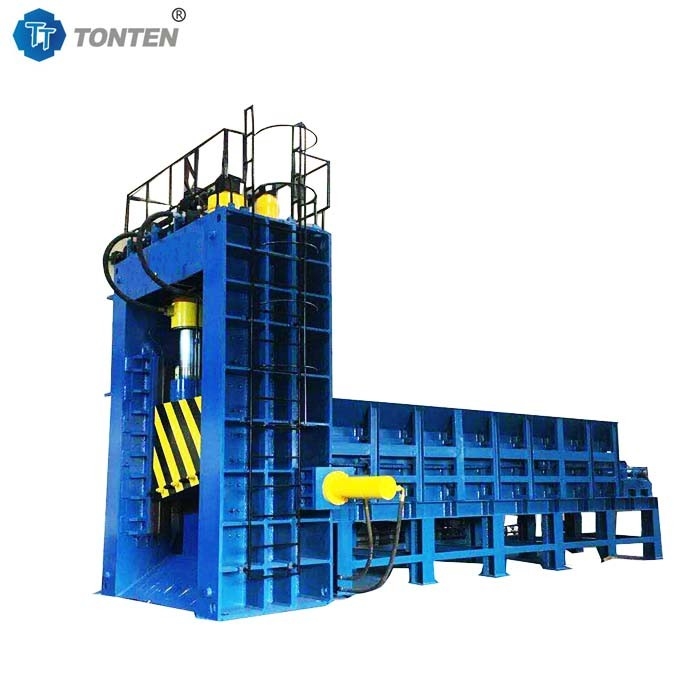

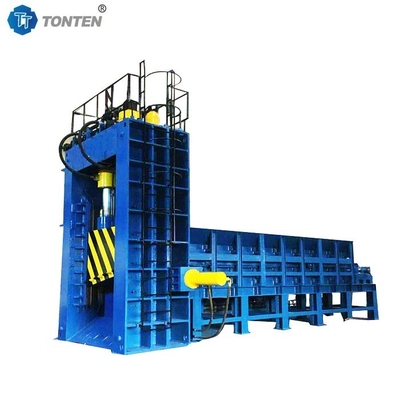

Hydraulic Gantry Shear Scrap Metal Motorcycle Cutting Gantry Shear
Definition of gantry shears:
Gantry shears are mechanical metal cutting equipment, mainly composed of gantry structure, cutting components and control system. The working principle of gantry shears is to cut metal materials through the up and down moving tool holder and the forward and backward moving workbench. It can be used to accurately cut a variety of metal materials such as steel plates, aluminum plates, copper plates, etc. The gantry shears are hydraulically driven, with strong cutting force and precise control system. They can achieve high-precision cutting and are suitable for processing large quantities of scrap steel. They can shear steel plates, nickel plates, copper plates and various profiles into various small sizes. They can completely replace flame cutting and reduce processing costs.
Scope of application
1. Construction industry: Gantry shears can cut steel structure materials to meet the needs of construction.
2. Automobile manufacturing industry: Gantry shears can cut automobile parts to improve production efficiency and product quality.
3. Machinery manufacturing industry:can cut steel plates, aluminum plates and other metal materials to a fixed length, which plays an important role in the machinery manufacturing process.
4. Sheet metal processing industry: can accurately cut various metal materials and is widely used in sheet metal processing.
5. Electronic manufacturing industry: can cut shell of electronic products to ensure product accuracy and aesthetics.
Specifications of Gantry Shears:
|
Shear cylinder
|
The inside diameter of the cylinder
|
360MM
|
route
|
1100MM |
640T
|
|
full thrust
|
320KN
|
quantity
|
2
|
||
|
Press cylinder
|
The inside diameter of the cylinder
|
160MM
|
route
|
1200MM
|
120T
|
|
full thrust
|
60KN
|
quantity
|
2
|
||
|
Fast cylinder
|
The inside diameter of the cylinder
|
180MM
|
route
|
1100MM
|
80T
|
|
full thrust
|
80KN
|
quantity
|
1
|
||
|
Tank cover cylinder
|
The inside diameter of the cylinder
|
100MM
|
route
|
400MM
|
240T
|
|
full thrust
|
20KN
|
quantity
|
12
|
||
|
Tank size
|
8000X1520X600MM (L X W X H) can be lengthened
|
||||
|
Application material
|
aluminum alloys, copper, iron, steel,automobiles,metal
|
||||
