Mining Gold Wet Pan Mill Gold Grinding Machine Gold Ore Separator
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-1500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box packaging or container |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Powder: | 22kw | Specification: | 1500×350×150×460±20mm |
|---|---|---|---|
| Rotate Speed: | 20-22r/min | Weight: | 12500kg |
| Input Size: | 30mm | Diameter: | 1500mm |
| Processing: | 7-8t/h | Name: | Mining Gold Wet Pan Mill |
Product Description

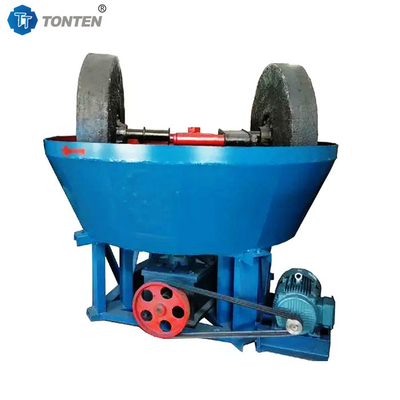

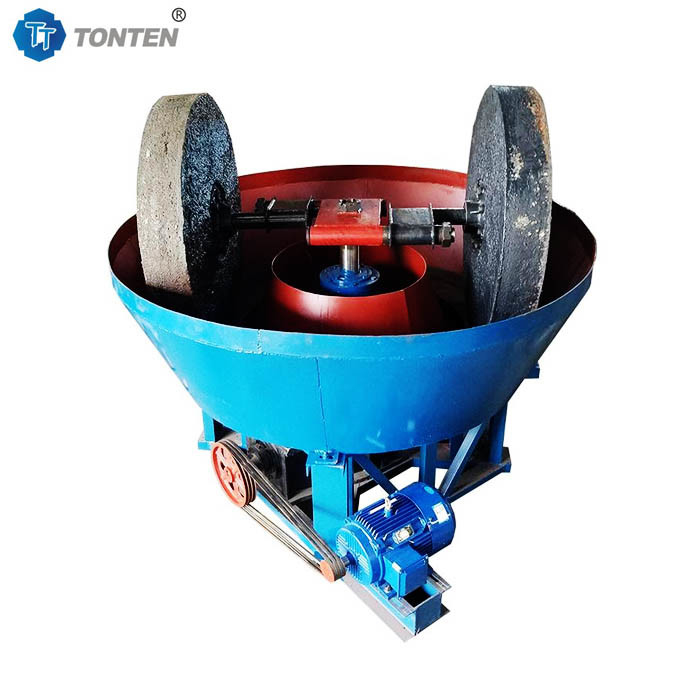

Mining Gold Wet Pan Mill Gold Grinding Machine Gold Ore Separator
Wet pan mill machine introduction:
Gold mill is also called wet mill, wheel mill.Wet pan mill mainly used for equipment that crushes materials after they are crushed. . It is widely used in the production industries of gold, iron, molybdenum, copper, zinc, antimony, cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation, glass and ceramics, etc., for dry or wet grinding of various ores and other grindable materials. All ores that can be selected by ball mills can be used for gold grinding machines. The gold grinding machine is easy to install and maintain, with low investment and high output. The full name of the wet grinding machine is wet grinding machine. According to different operating methods, it is divided into gold grinding machine, mercury mixing mill, iron grinding machine, and electric mill; according to different structural methods, it is divided into wheel mill, double roller mill, and triple roller mill. The wet grinding machine is developed on the basis of the ancient stone mill through modern improvements. It is used for grinding operations of various ferrous metals, non-ferrous metals, and non-metallic minerals, as well as grinding, selecting, and processing of rare and precious metals such as gold and silver.
Features:
1. It can disassembled and assembled, which is convenient for transportation in areas with narrow roads.
2. Grinding wheel is heavy and runs smoothly, can crush ore into finer particles in shorter time and achieve monomer dissociation of mineral.
Specification:
| Model | Specification(mm) | Feed Size(mm) | Speed(r/min) | Power(kw) | Weight(T) |
| 1600A | 1600*400*200*500±20 | <25 | 20-22 | 6-30 | 14.2 |
| 1500A | 1500*350*200*460±20 | <25 | 20-22 | 6-22 | 13.5 |
| 1500B | 1500*350*150*460±20 | <25 | 20-22 | 6-22 | 12.6 |
| 1500C | 1500*300*150*420±20 | <25 | 20-22 | 6-22 | 11.2 |
| 1400A | 1400*250*150*350±20 | <25 | 16-18 | 6-18.5 | 8.6 |
| 1400B | 1400*250*150*350±20 | <25 | 21-23 | 6-18.5 | 8.5 |
| 1350A | 1350*250*150*350±20 | <25 | 16-18 | 6-18.5 | 8.2 |
| 1350B | 1350*250*150*350±20 | <25 | 21-23 | 6-18.5 | 8 |
| 1300A | 1300*250*150*350±20 | <25 | 16-18 | 6-15 | 7.6 |
| 1300B | 1300*200*150*350±20 | <25 | 21-23 | 4-15 | 7.5 |
| 1200A | 1200*220*80*270±20 | <25 | 17-19 | 6-7.5 | 5.5 |
| 1200B | 1200*200*80*250±20 | <25 | 23-25 | 6-7.5 | 5.5 |
| 1100A | 1100*200*80*250±20 | <25 | 17-19 | 6-7.5 | 5 |
| 1100B | 1100*180*80*250±20 | <25 | 23-25 | 4-7.5 | 5 |
| 1000 | 1000*200*80*250±20 | <25 | 13-15 | 4-7.5 | 4.5 |
