Aluminum Plastic Separation Eddy Current Separator Copper Zinc Separator
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-E800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard international export packing, container or as required |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets/Month |
|
Detail Information |
|||
| Name: | Eddy Current Separator | Yield: | 800-1000kg/h |
|---|---|---|---|
| Power: | 7.2kw | Size: | 3600x1500x1600mm |
| Type: | Aluminum Plastic Separation | Material: | Aluminum Plastic Copper Zinc |
| Application: | Metal Purification | Suitable: | Electronic Waste |
Product Description

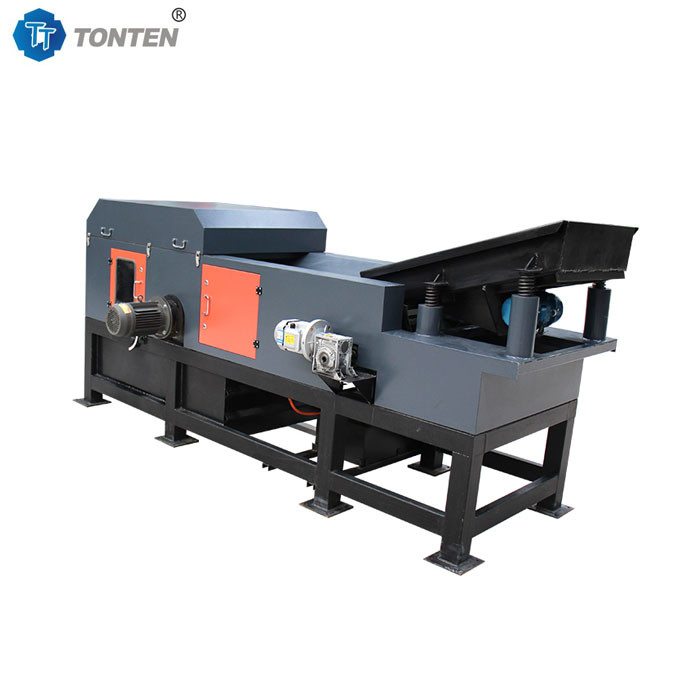

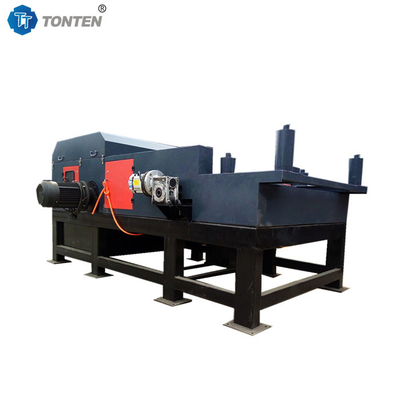

Aluminum Plastic Separation Eddy Current Separator Copper Zinc Separator
Working principle of eddy current separator:
The eddy current separator is designed based on the principle that a conductor generates an induced current in a high-frequency alternating magnetic field. When working, a high-frequency alternating magnetic field is generated on the surface of the separation magnetic roller. When the conductive non-ferrous metal passes through the magnetic field, an eddy current is induced in the non-ferrous metal. This eddy current itself will generate a magnetic field in the opposite direction of the original magnetic field. Non-ferrous metals (such as copper, aluminum, zinc, etc.) will leap forward along their transportation direction due to the repulsive force of the magnetic field, and achieve separation from other non-conductors or non-metallic substances, thus achieving the purpose of separation.
Eddy current separator application scope:
Eddy current separator is mainly used to recover copper, aluminum and other non-ferrous metals from domestic garbage, industrial waste, electronic waste, glass scraps, waste plastic doors and windows, boiler bottom ash, and waste car slices. It can be widely used in environmental protection fields such as garbage disposal and waste electrical appliance recycling, as well as material processing in non-ferrous metal processing industries.
Features:
1. Metal recycling is in line with the development trend of green and low carbon. The eddy current separator solves the time-consuming and labor-intensive problem of manual sorting and the technical difficulties of recycling.
2. The reliable single power supply design makes the system compact and reliable. The use of high-gradient rare earth permanent magnet system has low energy consumption and easy maintenance
3. The eddy current separator is easy to operate and automatically separates metals and non-metals
4. Applicable to a variety of materials, wide range of sorting particle sizes, long service life
5.The magnetic source is stable, high-strength permanent magnet NdFeB is used as magnetic source, the magnetic system is stable and does not fall off.
Specification:
|
Model
|
Motor
(kw)
|
Belt motor
(kw)
|
Capacity(kg/h)
|
|
400
|
5.6
|
0.75
|
100-300
|
|
600
|
7.2
|
0.75
|
300-600
|
|
800
|
7.2
|
0.75
|
600-800
|
|
1000
|
10
|
0.75
|
800-1000
|
|
1200
|
12
|
1.5
|
1000-1200
|
|
1500
|
15 |
1.5
|
1200-1500
|
