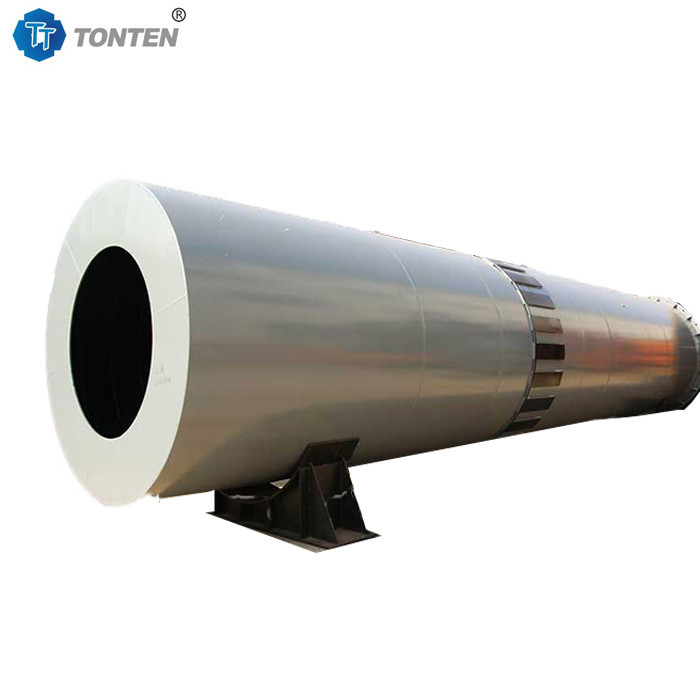

Cement Gypsum Titanium Dioxide Industrial Rotary Kiln Calcination
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-R1845 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard international export packing, container, wooden box or as required |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets per month |
|
Detail Information |
|||
| Name: | Rotary Kiln | Processing Capacity: | 4.5-5t/h |
|---|---|---|---|
| Diameter: | 1800mm | Length: | 45000mm |
| Motor: | 37kw | Rotate Speed: | 0.65-1.95r/min |
| Tilt: | 4% | Weight: | 80T |
| Highlight: | Cement industrial rotary kiln,Titanium Dioxide industrial rotary kiln,Industrial calcination rotary kiln |
||
Product Description
Cement Rotary Kiln Gypsum Titanium Dioxide Rotary Kiln Calcination

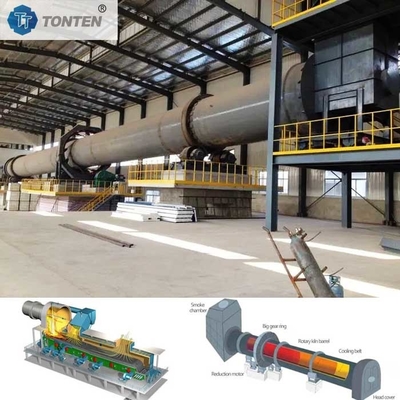

Working principle of rotary kiln:
Rotary kiln cylinder with refractory lining inlaid inside the cylinder and specified inclination to horizontal line. A large gear ring is fixed on the span inner cylinder near wheel belt at feeding end with tangential spring, and small gear meshed with it below. During normal operation, the main drive motor transmits power to the open gear device through the main reducer to drive the rotary kiln. The material enters kiln from kiln tail for calcination. Due to inclination and slow rotation of cylinder, the material rolls in circumferential direction and moves in axial direction, continuing to complete decomposition and sintering process. Finally,mature material enters cooler through kiln head cover for cooling.
Rotary kiln parameters:
|
Type |
Cylinderdiameter(mm) |
CylinderLength(mm) |
Rotating speed(r/min) |
Slope(%) |
Capacity(t/h) |
Motor power(kw) |
Weight(t) |
|
TT-R1225 |
1200 |
25000 |
0.5-1.6 |
3 |
3 |
22 |
34 |
|
TT-R1632 |
1600 |
32000 |
0.2-0.3 |
3 |
3.5 |
22 |
46.8 |
|
TT-R1636 |
1600 |
36000 |
0.26-2.6 |
4 |
1.2-1.9 |
22 |
50 |
|
TT-R1828 |
1800 |
2800 |
0.5-1.5 |
3.5 |
4 |
30 |
58.6 |
|
TT-R1845 |
1800 |
45000 |
0.65-1.95 |
4 |
4.5 |
37 |
78 |
|
TT-R1939 |
1900 |
39000 |
0.31-2.83 |
4 |
1.6-3.4 |
37 |
70 |
|
TT-R2044 |
2000 |
44000 |
0.22-2.26 |
4 |
2.4-4 |
37 |
98.2 |
|
TT-R2245 |
2200 |
45000 |
0.23-2.25 |
3.5 |
3.2-5.3 |
45 |
125.5 |
|
TT-R2550 |
2500 |
50000 |
0.68-1.45 |
3.5 |
6.2-7.4 |
55 |
179.63 |
|
TT-R2555 |
2500 |
55000 |
0.79-2.38 |
3.5 |
7.3-9.8 |
55 |
191.18 |
|
TT-R2820 |
2800 |
20000 |
0.8-1.45 |
3 |
15-18 |
75 |
186.45 |
|
TT-R3028 |
3000 |
28000 |
0.8-1.45 |
4 |
18-23 |
75 |
180.72 |
|
TT-R3060 |
3000 |
60000 |
0.49-2.42 |
4 |
16-20 |
90 |
272.5 |
|
TT-R3226 |
3200 |
26000 |
0.8-1.45 |
3.5 |
17-23 |
90 |
185.2 |
|
TT-R3255 |
3200 |
55000 |
0.1-1.52 |
4 |
22-27 |
110 |
271.58 |
