Industrial Strong Waste Wood Crusher Machine Chipper Shredder Tree Pulverizing

Industrial Strong Waste Wood Crusher Machine Chipper Shredder Tree Pulverizing

Product Details:

Place of Origin: China
Brand Name: TONTEN
Model Number: TT-W460

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export wooden packing or in container
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 50 Sets per month
Get Best Price Contact Now

Detail Information

Machine Weight: 160kg Spindle Speed: 2800r/min
Number Of Blades: 4 Processing Efficiency: 1200-3000kg/h
Orifice Diameter: 170x150mm Blade Size: 120x70x8mm
Cutter Head Size: 520mm Model: Strong Wood Chipper Shredder Machine
Highlight:

Pulverizing waste wood crusher machine

,

Chipper waste wood crusher machine

,

industrial wood crusher Shredder

Product Description

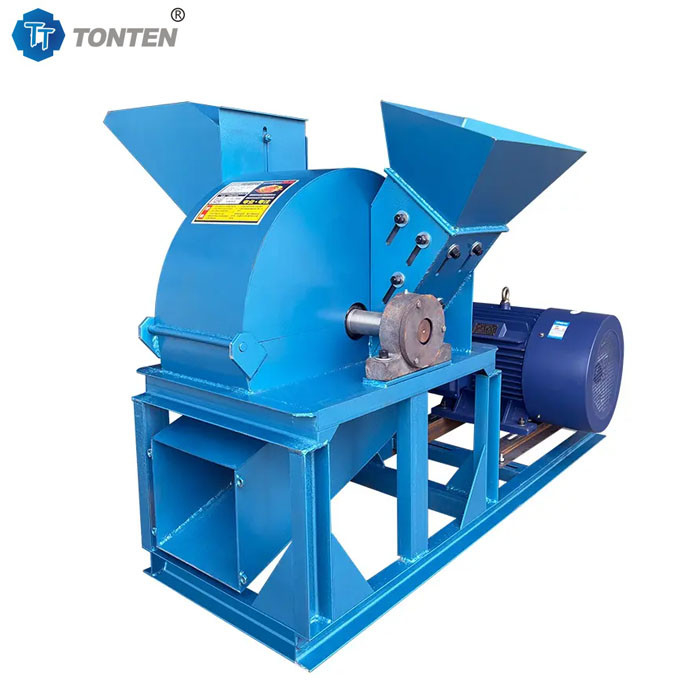

Strong Wood Chipper Shredder Machine Wood Crusher Tree Pulverizing



Product introduction:
The wood crusher can crush various branches, leaves, logs, bamboo and other plants, and can quickly cut the raw materials into small wood chips. The hydraulic forced feeding system saves labor and increases the feeding speed; the service life is three times that of traditional blades; the chain plate design makes the work efficiency higher. There are two power modes: electric and diesel, and there is no problem with field operations. The discharge port can rotate 360 ​​degrees, and the tires are made of high-quality tires and thickened steel plates, with reliable quality! Wood materials such as wood and branches can be processed into sawdust. The feed port is large and the blade is fixed. One person can complete the entire process of wood crushing, which also greatly saves labor input.



Wood chipper shredder machine features:

1.wood chipper shredder curshing machine has new inflated rubber tires, making it stable for outdoor climbing and walking. Customized brand tires are available
2.wood crusher machine use tungsten steel, wear-resistant,lifespan 3 times longer than conventionalblades, one-piece molding without breakage.
3.The forestry whole tree drum chipper entire series is equipped with a hydraulic automatic feeding system, which can intelligently control the feeding speed without jamming materials and is safer.
4. TONTEN machinery wood chipper crusher machine has a high discharge design, and the discharge direction is 360° adjustable. The crushed wood chips can be directly loaded onto the vehicle, saving manpower and time.

5. Wood chippers crusher machine have two power types can choose: electric chipper and diesel chipper, which can be customized according to your needs.



Specification:

Items

TT-W460

TT-W500

TT-W600

TT-W800

Machine Weight

160

230

320

450

Spindle speed

2800r/min

2800r/min

2700r/min

2100r/min

Number of blades
(alloy steel)

4

4

4

6

Processing efficiency

1200KG

1500KG

2000KG

2500KG

Orifice diameter

170x150

200x170

230x190

230x200

Blade size(mm)

90x60x8

120x70x8

150x70x8

150x80x8

Cutter head size(mm)

420

500

520

610

Power(kw)

11

18.5

22

37

Diesel horsepower

15

25

32

4-cylinder 4102

Diameter(cm)

12

15

18

20



Industrial Strong Waste Wood Crusher Machine Chipper Shredder Tree Pulverizing 0Industrial Strong Waste Wood Crusher Machine Chipper Shredder Tree Pulverizing 1
