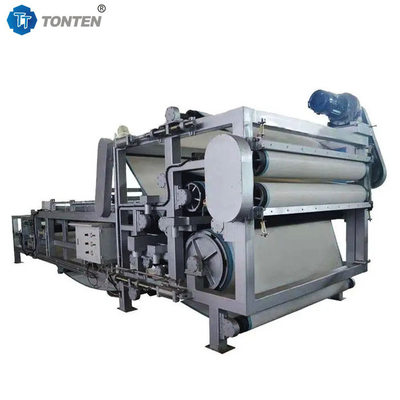

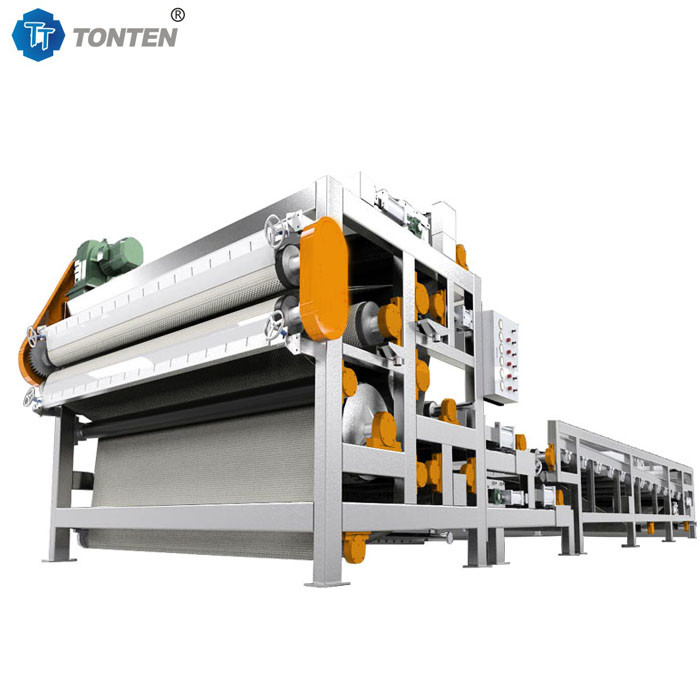

Mining Sludge Belt Press Dewatering Filter Machine For Wastewater Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or load in container |
| Delivery Time: | 7-10work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Belt Width: | 2000mm | Capacity: | 12-20m3/h |
|---|---|---|---|
| Inlet Concentration: | S.S. 1-5 | Sludge Cake Moisture Content: | 75-85% |
| Driving Motor: | 0.75kw | Drum Thickening Motor: | 0.55kw |
| Agitator Motor: | 0.55kw | Type: | Belt Filter Press Machine |
| Highlight: | Sludge belt press dewatering,Wastewater belt press dewatering,Mining belt filter press for wastewater treatment |
||
Product Description
Belt Filter Press Machine Sludge Dewatering Filter For Wastewater
Product introduction:
Belt filter press is widely used in mining, papermaking, chemical industry, slaughtering, printing and dyeing, coal mining, etc. It is used for mechanical dehydration of industrial sludge and sludge produced by municipal sewage plants. It is a solid-liquid separation equipment for resource recovery and environmental governance. Belt filter press has low noise and less chemical agents; good dehydration effect, low filter cake moisture content; variable frequency speed regulation, low power consumption
Working principle:
The low concentration of mud and sludge can be removed by gravity through the belt filter press. After entering the extrusion section, after multiple "S"-shaped extrusions, all the water on the sludge surface is squeezed out. The sludge is pressed into a mud cake, and the treated filter cake cannot be touched by hand.
Performance and structure overview:
The belt filter press is designed and manufactured based on the actual situation at home and abroad. The belt filter press is mainly composed of a chassis, an active roller, a driven roller, a water tank, a filter belt deviation correction device, a filter belt washing device, a filter belt tensioning device, a main motor, a side leakage prevention device, a water scraper, a mud flocculation tank and a mud distributor, etc.
Belt filter press parameters:
|
Items |
TT-1000 |
TT-1500 |
TT-2000 |
|
|
Belt width(mm) |
1000 |
1500 |
2000 |
|
|
Capacity(m3/h), inlet concentration(S.S. 1-5) |
5-10 |
8-15 |
12-20 |
|
|
Sludge cake moisture content(%) |
75-85 |
75-85 |
75-85 |
|
|
Motor power(kw) |
Driving motor( frequency control) |
0.35 |
0.75 |
0.75 |
|
Drum thickening motor( frequency control) |
0.37 |
0.55 |
0.55 |
|
|
Agitator motor |
0.37 |
0.55 |
0.55 |
|
|
Lower collecting tray for filtrate |
YES |
YES |
NO |
|
|
External dimension(mm) |
L |
2600 |
3220 |
3400 |
|
W |
1550 |
2130 |
2750 |
|
|
H |
2540 |
2360 |
3105 |
|
|
Base dimension L1xL2(mm) |
2100x1300 |
2450x1720 |
2720x2420 |
|
|
Reference weight(kg) |
1100 |
1680 |
2930 |
|
