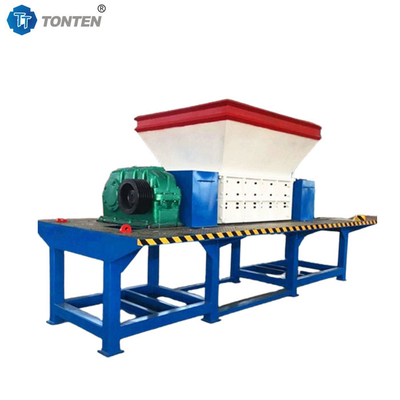

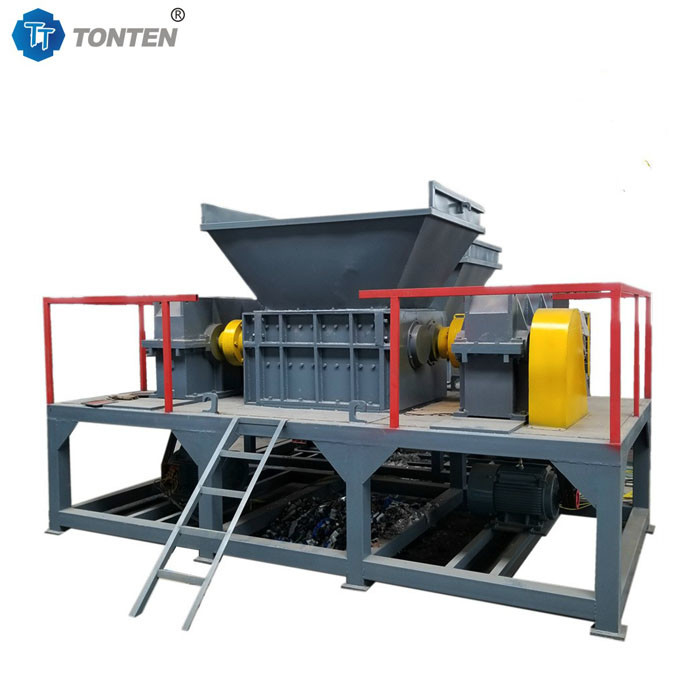

Waste Timber Wood Double Shaft Shredder Machine Manufacturer Automatic
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-S800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Small models are packed in wooden boxes, large models load in containers |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Tool Specification: | 400x40 | Power: | 30x2kw |
|---|---|---|---|
| Number Of Tools: | 20 | Reducer: | 2 Pieces |
| Dimensions: | 3700x1560x2200mm | Blade Shaf Diameter: | 260mm |
| Bearing: | 170x280x90mm | Type: | Double Shaft Shredder Machine Manufacturer |
Product Description
Waste Timber Wood Double Shaft Shredder Machine Manufacturer Automatic
Shredder machine structure:
The main components of the double-shaft shredder are: motor, reducer, cutter shaft, shredding blade, chassis, electronic control, and frame.
Feed hopper: Feed the waste material into the shredder for crushing. We can customize the size, shape and color according to your needs.
Blade: Generally, the blade diameter is 160-700mm, and the size after crushing is related to the thickness and number of teeth of the crushing blade. Send us your needs and we can customize it for you.
Motor and reducer: Meet energy efficiency standards and export standards. Before shipment, we will conduct load tests to ensure the stability of the power system.
Advantages:
1. Low speed and high torque design, low noise, less dust, improve the working environment.
2. Gearbox adopts oil-intake pulley, which runs smoothly, has low noise, high torque and can withstand long-term operation
3. Double knife shaft mechanism, with knife shaft for multi-angle change, labor-saving cutting, strong cutting force and strong crushing ability.
4. Motor is driven by the gear box to form a transmission structure, which runs at low speed and high torque to achieve a crushing effect.
Specification:
|
Items |
Specification |
Power |
Number of tools |
Reducer |
Dimensions(mm) |
|
TT-S400 |
250x20 |
15kwx2 |
30 |
ZQ400 series |
2800x1400x1900 |
|
TT-S600 |
300x30 |
18kwx2 |
20 |
ZQ500 series |
3200x1500x1980 |
|
TT-S800 |
350x25 |
22kwx2 |
32 |
ZQ650 series |
3700x1560x2200 |
|
TT-S1000 |
400x40 |
37kwx2 |
25 |
ZSY315 series |
4100x1700x2350 |
|
TT-S1200 |
400x40 |
45kwx2 |
30 |
ZSY355 series |
4600x1900x2450 |
|
TT-S1400 |
500x40 |
52kwx2 |
35 |
ZSY400 series |
5200x2100x2600 |
|
TT-S1500 |
550x60 |
75kwx2 |
23 |
ZSY450 series |
5300x2200x2700 |
|
TT-S1600 |
500x40 |
75kwx2 |
40 |
ZSY450 series |
5500x2100x2750 |
|
TT-S1800 |
650x50 |
90kwx2 |
36 |
ZSY500 series |
6000x2420x2960 |
