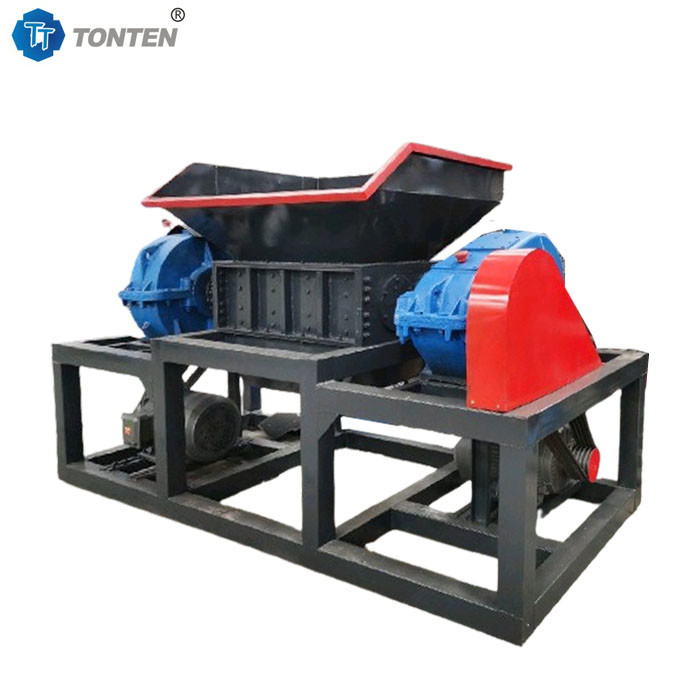

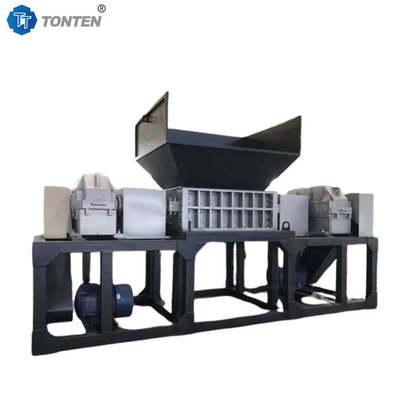

Organic Waste Shredder Car Shell PE Pipe Shredding Machine Crusher
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-DS1800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Small models are packed in wooden boxes, large models load in containers |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Crushing Chamber Size: | 1800x1260mm | Output: | 10-50t/hour |
|---|---|---|---|
| Power: | 80x2kw | Outline Size: | 5800x2300x3300mm |
| Weight: | 22000kg | Blade Diameter: | 550mm |
| Blade Hardness: | HB210 | Name: | Shredder Shredding Machine Crusher |
Product Description
Organic Waste Shredder Car Shell PE Pipe Shredding Machine Crusher
Introduction for shredder machine:
The shredder has strong shredding force. The classic roller-type knife and knife shaft design of the shredder does not require a pressing device. You can choose to feed manually or with a conveyor belt according to your needs. The material is transported by a conveyor belt. The shredder uses alloy steel blades with a long service life. The shredder consists of a motor, a hard-toothed reducer, a rotating knife shaft, a moving knife, a fixed knife, a frame, a base, a box, and other main structures.The components coordinate with each other to jointly realize the various functions of the shredder, providing important technical support for the reuse and treatment of waste materials.
Features:
1. The heavy moving knife has high crushing efficiency, and the knives are all cast with alloy steel, which is strong and has a long service life.
2. The frame plate is thick, can resist high torque, and is very strong, the dust can meet environmental protection standards
Shredder parameters:
|
Model |
Crushing chamber size |
Processing capacity |
Power |
Dimensions |
Weight |
|
TT-DS400 |
400x430mm |
0.2-0.5 t/h |
7.5x2 kw |
2100x1000x1500mm |
1300kg |
|
TT-DS600 |
600x450mm |
0.8-1.5 t/h |
15x2 kw |
2800x1600x1720mm |
1800kg |
|
TT-DS800 |
800x650mm |
1.5-3 t/h |
22x2 kw |
3500x1700x1800mm |
3600kg |
|
TT-DS1000 |
1000x780mm |
2.5-4 t/h |
30x2 kw |
4000x1800x2000mm |
5500kg |
|
TT-DS1200 |
1200x800mm |
4-5 t/h |
37x2 kw |
4200x2060x2300mm |
8500kg |
|
TT-DS1400 |
1400x1000mm |
5-6.5 t/h |
45x2 kw |
4600x2200x3100mm |
12500kg |
|
TT-DS1600 |
1600x1200mm |
8-50 t/h |
75x2 kw |
5300x2260x3160mm |
16000kg |
|
TT-DS1800 |
1800x1300mm |
10-50 t/h |
80x2 kw |
5800x2300x3300mm |
22000kg |
|
TT-DS2000 |
2000x1600mm |
20-60 t/h |
90x2 kw |
6200x2500x3500mm |
28000kg |
Shredder customer site and workshop:
