Mining Powder Process Ball Mill Grinding Ball Mill Cement Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | BM-1200x2400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-10work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets per month |
|
Detail Information |
|||
| Capacity: | 1.6-5.8t/h | Power: | 37kw |
|---|---|---|---|
| Ball Load: | 4.6ton | Dimension: | 5560x2300x1860mm |
| Cylinder Rotating Speed: | 35r/min | Feeding Size: | ≤25mm |
| Discharging Size: | 0.075-0.6mm | Name: | Powder Process Ball Mill Grinding Ball Mill |
Product Description

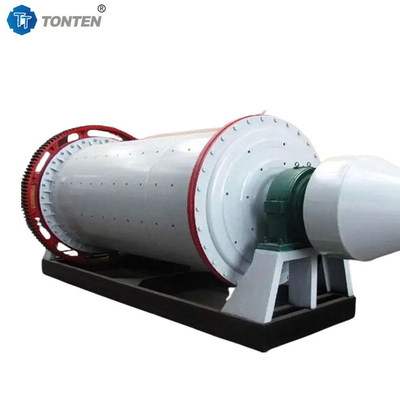

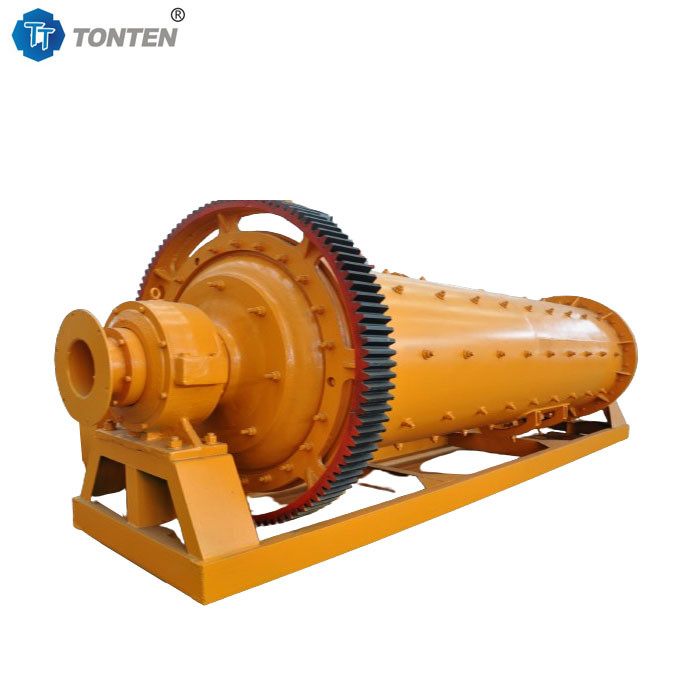

Mining Powder Process Ball Mill Grinding Ball Mill Cement Plant
Product introduction:
Ball mill is also called grinding machine, mineral grinder or ore grinder. Ball mill is a grinding machine that uses balls to reduce the size of materials. It is used in new building materials, refractory materials, mineral processing, cement plants, fertilizer plants, fertilizers, ferrous and non-ferrous metal beneficiation, etc. Ball mill can grind various ores and other materials dry and wet. Due to different unloading methods, there are two types of ball mills, grate type and overflow type.
Ball mill parameters:
|
Model |
Revolution |
Balls |
Max size |
Capacity |
Power |
Dimension |
Weight |
|
r/min |
t |
mm |
t/h |
kw |
(LxWxH)mm |
kg |
|
|
TT-BM900x1800 |
41.6 |
1.5 |
25 |
0.3-0.9 |
11 |
3850*1850*1400 |
5850 |
|
TT-BM900x3000 |
41.6 |
2.7 |
25 |
0.6-1.5 |
15 |
4753*1860*1400 |
6980 |
|
TT-BM1200x2400 |
41.6 |
3. |
25 |
1.5-4.8 |
30 |
5963*1890*1420 |
7770 |
|
TT-BM1200x3000 |
35.1 |
4.0 |
25 |
1.6-5.0 |
37 |
5540*2300*1850 |
10020 |
|
TT-BM1200x4500 |
35.1 |
5.3 |
25 |
2.2-5.5 |
45 |
6360*2320*1850 |
11230 |
|
TT-BM1500x3000 |
30.2 |
4.5 |
25 |
1.5-3.5 |
37 |
5235*2370*1880 |
10210 |
|
TT-BM1500x4500 |
30.7 |
9.0 |
25 |
3.5-8.0 |
80 |
7530*2930*2060 |
16843 |
|
TT-BM1830x3000 |
25.4 |
13.0 |
25 |
3.0-17.0 |
130 |
9535*3960*2250 |
29490 |
|
TT-BM2100x4500 |
23.7 |
20.0 |
25 |
4.0-30.0 |
180 |
8475*4060*3400 |
41965 |
|
TT-BM2200x6500 |
21.7 |
25.0 |
25 |
5.6-42.0 |
280 |
9985*4160*3400 |
49230 |
