OEM Mineral Processing Equipment Gold Ore Grinding Mill Machine 900x1800
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | BM-900x1800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-10work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets per month |
|
Detail Information |
|||
| Processing Capacity: | 0.65-2.5t/h | Motor Power: | 18.5kw |
|---|---|---|---|
| Spinning Speed: | 36-38r/min | Item: | 900x1800 Grinding Ball Mill |
| Ball Load Weight: | 1.5t | Ball Mill Machine Weight: | 3650kg |
| Input Size: | ≤20mm | Output Size: | 0.075-0.89mm |
| Highlight: | 900x1800 Mineral Processing Equipment,Mineral Processing Equipment Grinding Mill,Gold Ore ball grinding machine |
||
Product Description

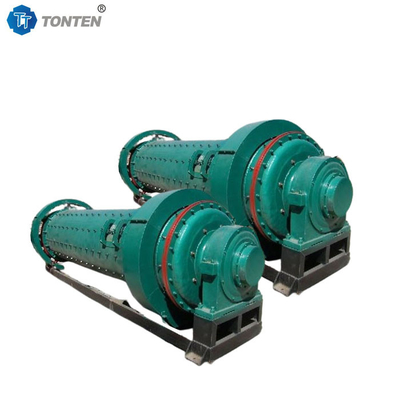

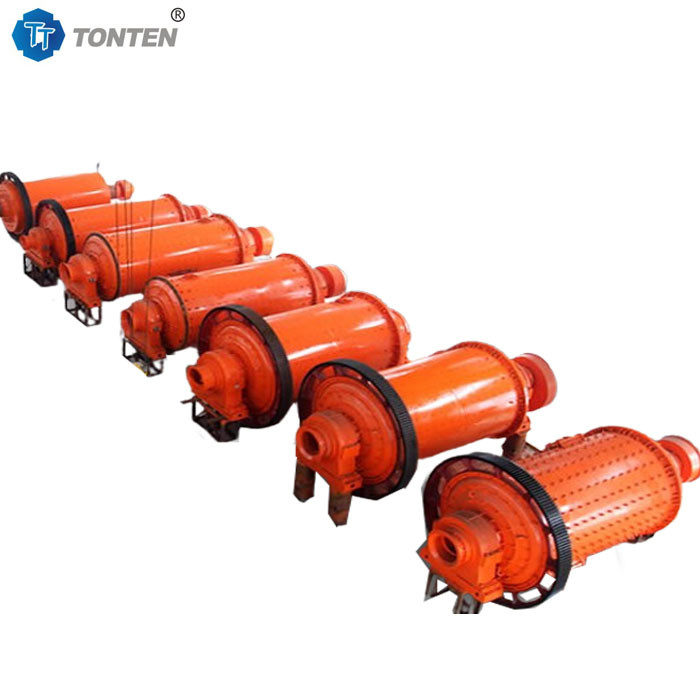

Grinding Ball Mill Gold Ore Grinding Mill 900x1800 Ball Mill Machine
The ball mill is a horizontal cylindrical rotating device, which is driven by an outer gear ring. The material is evenly fed into the grinding chamber through the hollow shaft. The grinding chamber is equipped with stepped linings and corrugated linings, and contains steel balls of different specifications. The centrifugal force generated by the rotation of the cylinder brings the steel balls to a certain height to hit and grind the materials. After the material reaches the initial grinding in the first chamber, it enters the second chamber through the ore dressing screen. The second chamber is equipped with flat linings and steel balls. After the material is secondary ground, it is discharged from the discharge screen. It can be used to process gold ore, marble, feldspar, quartz, calcite, limestone, copper ore, iron ore, etc.
Grinding ball mill machine parameter:
|
Model |
Shell rotation speed(r/min) |
Ball load weight (t) |
Feeding size (mm) |
Discharge size (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Weight (t) |
|
BM-900x1800 |
36-38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2.5 |
18.5 |
3.65 |
|
BM-900x3000 |
36 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
|
BM-1200x2400 |
36 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
13.6 |
|
BM-1200x3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
14.3 |
|
BM-1200x4500 |
32.4 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
15.6 |
|
BM-1500x3000 |
29.7 |
7.5 |
≤25 |
0.074-0.4 |
2.0-5.0 |
75 |
19.5 |
|
BM-1500x4500 |
27 |
11 |
≤25 |
0.074-0.4 |
3.0-6.0 |
110 |
22 |
|
BM-1500x5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
|
BM-1830x3000 |
25.4 |
11 |
≤25 |
0.074-0.4 |
4.0-10.0 |
130 |
34.5 |
Ball mill customer site:
Our services:
According to the customer's requirements and budget, we will provide equipment pictures, work site videos, factory processing drawings, assembly drawings, foundation drawings and factory layouts. According to customer requirements, we will send technicians to the mine site to guide installation, commissioning tests and train operators until the plant is operating normally.
