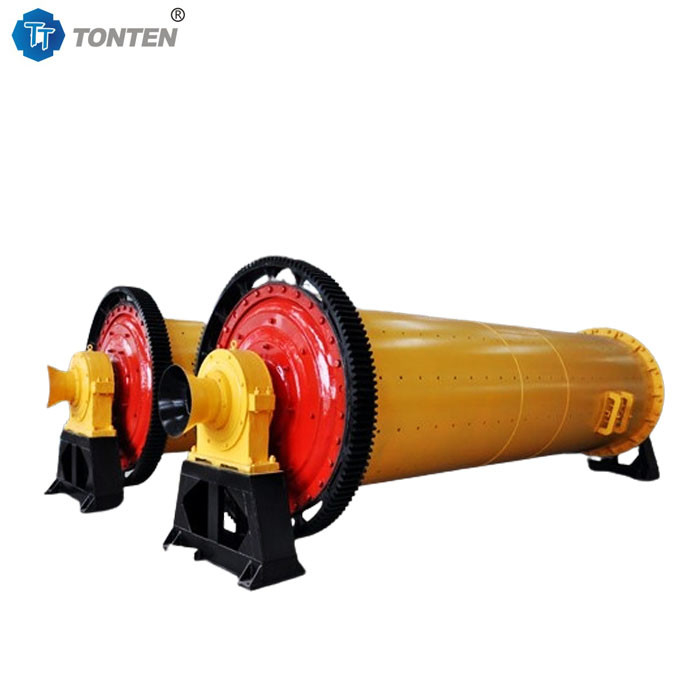

Mining Rock Gold Ball Mill Grinder Cement Ball Mill Grinding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | BM-1200x4500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-10work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Capacity: | 2-5t/h | Ball Load: | 5t |
|---|---|---|---|
| Power: | 75kw | Output Size: | 0.074-0.4mm |
| Feed Size: | ≤25mm | Rotating Speed: | 32.4r/min |
| Weight: | 15.6t | Item: | Mining Rock Gold Ball Mill Grinder |
Product Description
Mining Rock Gold Ball Mill Grinder Cement Ball Mill Grinding Machine
Working principle of ball mill:
Because the gear transmission of the ball mill will generate axial force, a hollow shaft neck is designed with two convex shoulders, and the distance between the convex shoulders is exactly equal to the length of the bearing shell, so as to prevent axial movement. The gears are driven by the motor or the cylinder is driven by the low-speed synchronous TV through the peripheral gear transmission. The material is loaded into the cylinder from the hollow shaft at the feed end. When the cylinder of the ball mill rotates, the grinding body is attached to the cylinder lining due to inertia, centrifugal force and friction, and is carried away by the cylinder. When it is brought to a certain height, it is thrown down due to its own gravity. The falling grinding body crushes the material in the cylinder like a projectile. When the material enters the cylinder, it is crushed by the grinding medium, thus achieving the crushing and grinding effect.
Features:
1. Simple structure, stable and reliable operation, suitable for fine grinding and medium grinding, with good screening effect and strong controllability.
2. The ball mill liner design adopts a grooved annular liner, which increases the contact area between the steel ball and the ore, strengthens the grinding effect of the steel ball on the ore, and enhances the lifting capacity of the ore, and also achieves the purpose of energy saving and consumption reduction,liner material includes high manganese steel, high chromium cast iron, medium manganese ductile iron, etc. for customers to choose.
Grinding ball mill machine parameter:
|
Model |
Rotating speed(r/min) |
Ball load (t) |
Feeding size (mm) |
Discharge size (mm) |
Processing capacity (t/h) |
Power (kw) |
Weight (t) |
|
BM-900x1800 |
36-38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2.5 |
18.5 |
3.65 |
|
BM-900x3000 |
36 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
|
BM-1200x2400 |
36 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
13.6 |
|
BM-1200x3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
14.3 |
|
BM-1200x4500 |
32.4 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
15.6 |
|
BM-1500x3000 |
29.7 |
7.5 |
≤25 |
0.074-0.4 |
2.0-5.0 |
75 |
19.5 |
|
BM-1500x4500 |
27 |
11 |
≤25 |
0.074-0.4 |
3.0-6.0 |
110 |
22 |
Ball mill customer site:
