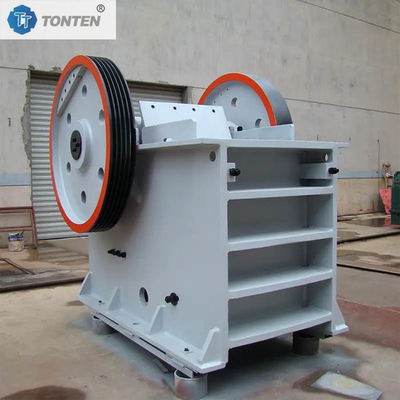

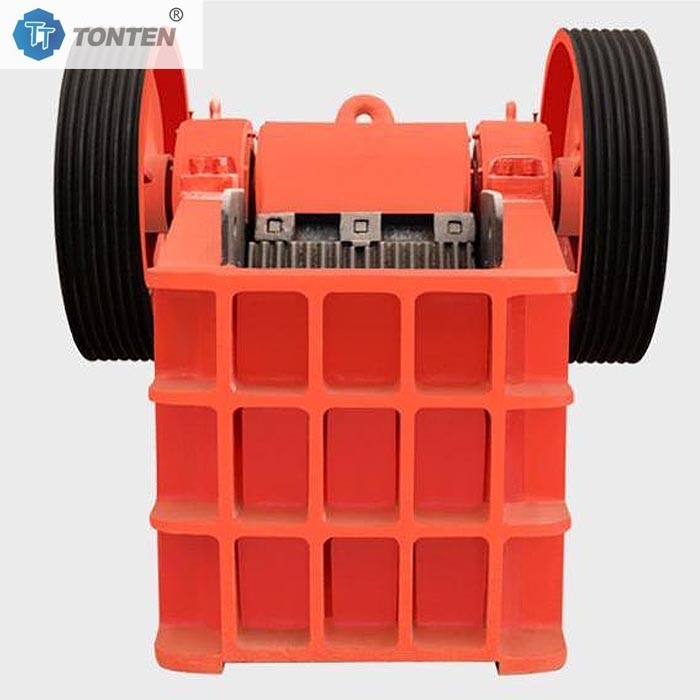

Stone Gravel Rock Jaw Crusher Machine Mobile PE Jaw Crusher For Sale
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-PE750x1060 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
|
Detail Information |
|||
| Capacity: | 110-260t/h | Power: | 90kw |
|---|---|---|---|
| Feed Port: | 750x1060mm | Discharge Size: | 80-235mm |
| Type: | Jaw Crusher Machine | Dimension: | 2380x2550x2800mm |
| Weight: | 30.5ton | Name: | Mobile PE Jaw Crusher Machine |
Product Description
Stone Gravel Rock Jaw Crusher Machine Mobile PE Jaw Crusher For Sale
Working principle:
The jaw crusher is mainly composed of fixed jaw plate, movable jaw plate, support frame and other components. When working, the movable jaw plate swings back and forth under the drive of the motor, forming a crushing chamber between the fixed jaw plate and the movable jaw plate. After the material is fed into the crushing chamber, it is gradually crushed into smaller particles under the crushing action of the two jaw plates.
Application scope and applicable materials:
Jaw crushers are widely used for primary crushing in mining, metallurgy, building materials and other industries. They are mainly suitable for crushing ores with medium hardness or below, construction waste and other materials. Such as pebbles, limestone, granite, quartzite, iron ore, coal gangue, bricks, etc.
Jaw crusher machine specification:
|
Model |
Feed Size |
Discharging |
Max Feed |
Capacity |
Power |
Dimensions |
Weight |
|
PE-100x150 |
100x150 |
5~20 |
80 |
0.5-2 |
2.2 |
780x600x800 |
0.82 |
|
PE-150x250 |
150x250 |
10-40 |
125 |
2~6 |
5.5 |
875x745x935 |
1.2 |
|
PE-200x350 |
200x350 |
10-50 |
160 |
6~10 |
7.5 |
1080x1060x1288 |
1.6 |
|
PE-250x400 |
250x400 |
20-60 |
210 |
8~16 |
15 |
1108x1290x1392 |
3 |
|
PE-250x500 |
250x500 |
20-80 |
210 |
13-21 |
18.5 |
1360x1450x1440 |
4.1 |
|
PE-400x600 |
400x600 |
40-100 |
350 |
14-36 |
30 |
1650x1748x1520 |
7.2 |
|
PE-500x750 |
500x750 |
50-125 |
400 |
30-80 |
45 |
1900x1980x1821 |
11.3 |
|
PE-600x900 |
600x900 |
75-200 |
480 |
56-192 |
75 |
2280x2235x2395 |
17.5 |
|
PE-750x1060 |
750x1060 |
80-235 |
630 |
108-256 |
90 |
2380x2550x2800 |
22 |
|
PE-900x1200 |
900x1200 |
95-265 |
750 |
186-398 |
110 |
2960x2930x3865 |
26 |
|
PE-1200x1500 |
1200x1500 |
160-320 |
1000 |
280-700 |
160 |
3800x3240x4250 |
30 |
|
PE-1500x1800 |
1500x1800 |
220-350 |
1200 |
400-1000 |
315 |
5100x4700x4500 |
36.5 |
