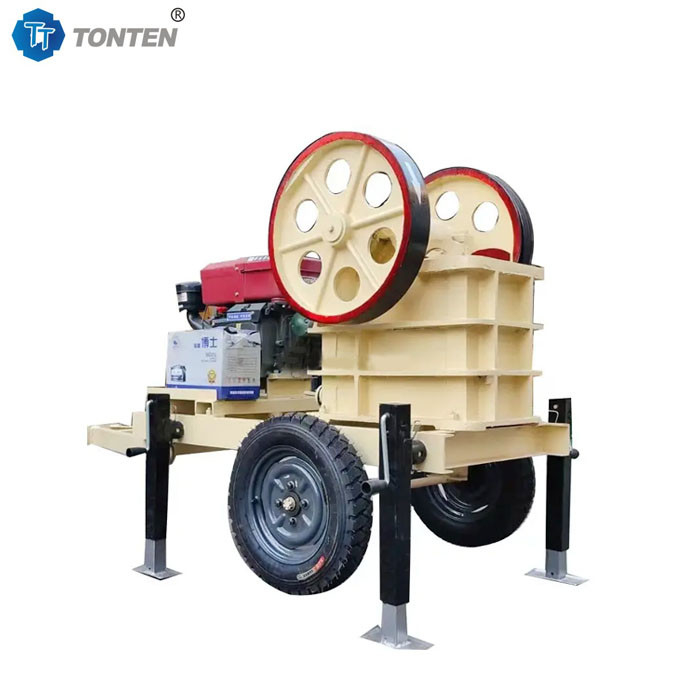

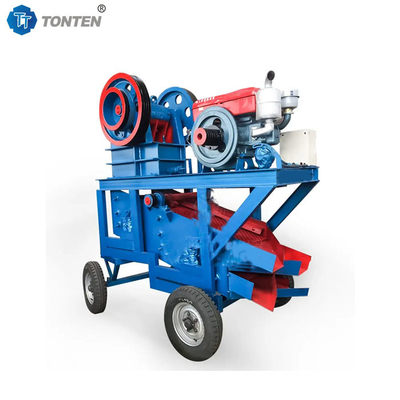

Diesel Mobile Jaw Crusher Concrete Stone Crusher Machine For Mineral
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-PE600x900 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing, container or as required |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 60 sets/month |
|
Detail Information |
|||
| Feeding Size: | 550mm | Discharge Opening: | 65-160mm |
|---|---|---|---|
| Capacity: | 90-180tph | Motor: | 55 |
| Weight: | 17ton | Overall Dimension: | 2190×2216×2300mm |
| Use: | Concrete Stone | Type: | Diesel Mobile Jaw Crusher |
Product Description
Diesel Mobile Jaw Crusher Concrete Stone Crusher Machine For Mineral
Introduction:
Jaw crusher is common crushing used to crush into required particle size. It consists of fixed jaw plate and swinging jaw plate,the maintenance of the jaw crusher is also relatively convenient,and no complicated maintenance procedures are required. The jaw crusher is suitable for crushing a variety of materials:stone,ore,limestone, quartz sand, concrete, etc.
Jaw crusher machine specification:
|
Model
|
Discharge Opening size (mm) |
Capacity (tph) |
Motor power (kW) |
Weight (t) |
Dimension (mm) |
|
PE150x250 |
10-40 |
1-3 |
5.5 |
0.8 |
820x660x850 |
|
PE 200x300 |
20-50 |
2-6 |
7.5 |
1.2 |
920x780x990 |
|
PE200x350 |
30-70 |
3-10 |
11 |
1.6 |
1000x870x990 |
|
PE250×400 |
30-80 |
5-20 |
15 |
2.8 |
1300×1090×1260 |
|
PE400×600 |
40-100 |
16-60 |
30 |
7 |
1730×1730×1580 |
|
PE500×750 |
50-100 |
40-110 |
55 |
12 |
1980×2080×1830 |
|
PE600×900 |
65-160 |
90-180 |
55 |
17 |
2190×2206×2300 |
|
PE750×1060 |
80-140 |
110-320 |
110 |
23 |
2660×2430×2710 |
|
PE800×1060 |
80-150 |
130-330 |
110 |
29.8 |
2710×2430×2880 |
|
PE900×1060 |
80-150 |
230-390 |
110 |
33 |
2870×2420×2960 |
|
PE900×1200 |
95-165 |
220-450 |
110-132 |
36 |
3380×2870×3330 |
|
PE1000×1200 |
195-280 |
300-500 |
110-160 |
42 |
3480×2876×3380 |
|
PE1200×1500 |
150-300 |
400-600 |
160-220 |
51 |
4200×3300×3500 |
Customer site:
