Mining Limestone Jaw Crusher Machine Ore Crusher Portable Type
Product Details:
Place of Origin: | China |
Brand Name: | TONTEN |
Model Number: | TT-PE250x750 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | standard export packing, container or as required |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T |
Supply Ability: | 60 sets/month |
Detail Information |
|||
Feed Port Size: | 250x750mm | Maximum Feed Size: | 210mm |
---|---|---|---|
Discharge Port Adjustment Range: | 25-60mm | Processing Capacity: | 13-35ton/hour |
Eccentric Shaft Speed: | 330r/min | Motor: | 30kw |
Boundary Dimension: | 1400x1800x1600mm | Name: | Mining Limestone Jaw Crusher Machine |
Product Description

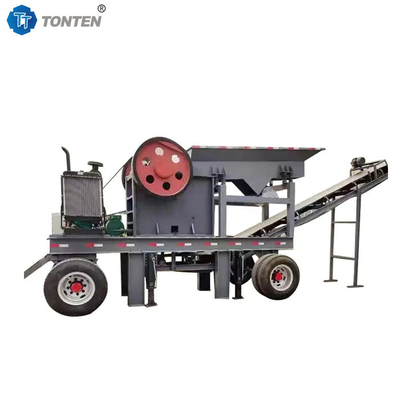

Mining Limestone Jaw Crusher Machine Ore Crusher Portable Type

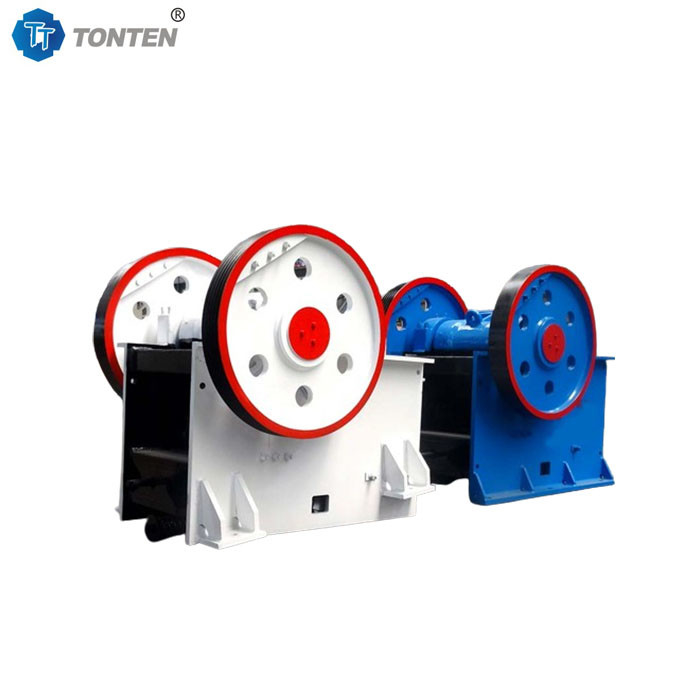

Introduction to jaw crusher:
Jaw crusher is the key equipment to realize the initial crushing of various raw materials. Jaw crusher is an important crushing equipment in the coarse crushing link of stone production line and sand production line. Due to the large feed inlet of jaw crusher, it belongs to the first-level crushing in the crushing production line. PE series jaw crusher is a tooth plate extrusion type reciprocating crushing, and the crushed materials can only meet the requirements of entering the impact crusher and fine crusher for crushing production. Therefore, it is usually crushed at the highest point in the stone production line.
Advantage:
1. Widely used in various industrial fields. It plays an important role in medium and fine crushing in the metallurgical and mining industries, and can handle various medium-hard ores and rocks to ensure the smooth progress of the production process. Jaw crushers are also of great benefit to the chemical, cement, construction and refractory materials, ceramics and other industries, and can efficiently handle the ore and rock raw materials in these fields.
2. Jaw crusher can crush large pieces of ore into small pieces, improving the efficiency of subsequent processing; in fine crushing operations, the jaw crusher can further crush small pieces of ore into smaller particles, and adopts impact crushing method, so that the material is less mechanically damaged during the crushing process, which is conducive to the subsequent processing and treatment of the material.
3. Simple structure, large crushing force, the adjustment device adjust size of crushing size, transmission device provides power for entire crusher.
4.Movable jaw is made of cast steel, and the eccentric shaft is made of forged blanks, etc., is efficient and durable.
Jaw crusher machine specification:
Model |
Feed port size (mm) |
Maximum feed size (mm) |
Discharge port adjustment range (mm) |
Machine capacity (T/H) |
Speed |
Power (KW) |
Weight |
PE-250X400 | 250X400 | 210 | 20-60 | 5-20 | 300r/min | 15 | 2.8T |
PE-400X600 | 400X600 | 360 | 40-100 | 16-50 | 260r/min | 30 | 7.5T |
PE-500X750 | 500X750 | 450 | 50-100 | 40-100 | 275r/min | 55 | 12T |
PE-600X900 | 600X900 | 500 | 65-160 | 50-150 | 250r/min | 75 | 18T |
PE-750X1060 | 750X1060 | 650 | 80-140 | 110-300 | 250r/min | 90-110 | 29T |
PE-900X1200 |
900X1200 |
780 | 90-165 | 220-350 | 200r/min | 110-132 | 36T |
PE-1200X1500 | 1200X1500 | 1100 | 150-300 | 400-500 | 180r/min | 160-180 | 52T |
PEX-250X750 | 250X750 | 210 | 25-60 | 13-50 | 300r/min | 30 | 5.5T |
PEX-250X1000 | 250X1000 | 210 | 25-80 | 20-80 | 330r/min | 42 | 7.1T |
