Gantry shears steel metal recycling and processing manufacturer direct sales
Product Details:
Place of Origin: | China |
Brand Name: | TONTEN |
Model Number: | TTG56-66 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1SET |
---|---|
Price: | Negotiable |
Packaging Details: | Container |
Delivery Time: | 10-15 work days |
Payment Terms: | T/T |
Supply Ability: | 3 units/month |
Detail Information |
|||
Brand: | TONTEN | Name: | Gantry Shears |
---|---|---|---|
Automation Level: | Fully Automatic | Usage: | Industrial |
Advantage: | Easy To Operation | Max. Cutting Force(ton): | 315-630 |
Main Motor: | 4*22 Kw、4*30 Kw、4*45 Kw | Place Of Origin: | China |
Product Description

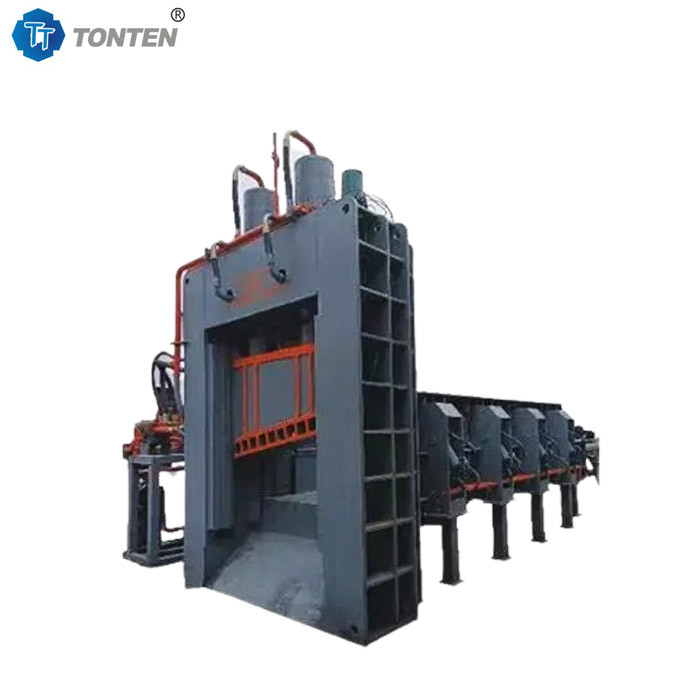

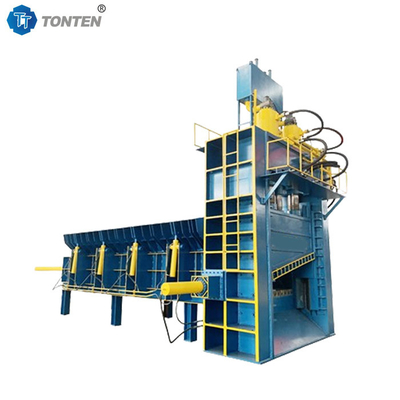

Gantry Shears Steel Metal Recycling And Processing Manufacturer Direct Sales
Product Introduction
The gantry shearing machine, also known as the gantry shearing machine, is used for cutting various metal sheets and is an ideal equipment for material processing in steel mills, non-ferrous metal plants, and smelters. The gantry shear adopts hydraulic drive, which has the characteristics of smooth movement, flexible operation, and large cutting section. Hydraulic electric integrated control, capable of single and continuous action conversion, simple and convenient to use, can stop and run at any working position, and is easy to achieve overload protection. Widely applicable, it can be used as processing equipment for metal recycling and processing units, as well as for furnace material processing in factory casting workshops and metal cutting and processing equipment in the mechanical construction industry.
Structural Characteristics
1. The blade width is optional, making it easy to cut wide materials and feeding more convenient.
2. The silo automatically presses materials, pushes them forward automatically, and cuts them automatically. Users do not need to perform any operations, improving productivity.
3. The cutting speed is adjustable, and the stroke length can be adjusted by the user.
4. The silo is large, with a front and rear length of 7 meters and a width of 1.5 meters. It can load 2-4 tons or more at once. After the loading is completed, the material will be automatically pressed and pushed forward.
5. The cutting blade material is H13, and blades of different materials can be customized according to user requirements.
6. The guide rails on both sides of the tool holder are lubricated with automatic grease, and the guide rails are made of durable high manganese steel wear-resistant materials.
7. The minimum length of the cut material is 10 centimeters, and the length can be adjusted freely.
Applicable Scope
This equipment is suitable for continuous and neat cutting of various types of steel scrap. At the same time, multiple specifications and models of products can be provided according to the user's usage situation, in order to adapt to the needs of different customers. During the operation process, it is necessary to pay attention to safety and maintain the correct posture to ensure personal safety.
Its main function is to ensure the integrity of the material, or to perform plastic and/or other forms of pressure processing on its local parts to improve the shape of the workpiece and ultimately meet the specified technical requirements.
We prioritize quality based on integrity and reasonable pricing. Our machines are manufactured strictly in accordance with national and international standards, and we conduct testing on each device before delivery. We will make every effort to meet the needs of our customers and provide efficient and high-quality Gantry sheets. We pursue small profits and high sales, and we can offer you a lower price than other trading companies. If the product is really suitable and can benefit you, the price can be negotiated. Please call or contact us through other means for further discussion.
Parameter Table
Model | Max. cutting force(ton) | Press box size(mm) | Cutting frequency(times/min) | Main motor |
TTG56-66-24 | 315 | 3500X2000X1100 | 3 | 4X22Kw |
TTG56-66-25 | 500 | 5000X2000X1100 | 3 | 4X30Kw |
TTG56-66-26 | 630 | 6000X2200X1500 | 3 | 4X45Kw |
Note: The above parameters are for reference only, please refer to the actual product for details. |
