Intelligent Multifunctional Drum Stone Washing Machine Used In Chemical Industry

Intelligent Multifunctional Drum Stone Washing Machine Used In Chemical Industry

Product Details:

Place of Origin: China
Brand Name: TONTEN
Model Number: TTD91-90

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Container
Delivery Time: 5-11 work days
Payment Terms: T/T
Supply Ability: 13 units/month
Get Best Price Chat Now

Detail Information

Brand: TONTEN Article Number: TTD91-90
Marketing Type: New Product 2024 Production Capacity: 5-200t/h
Size: Custom Simplified RPM: 17-20
Application: Alluvial Gold,placer Gold,river Gold Supply Ability: 13 Set/Sets Per Month

Product Description

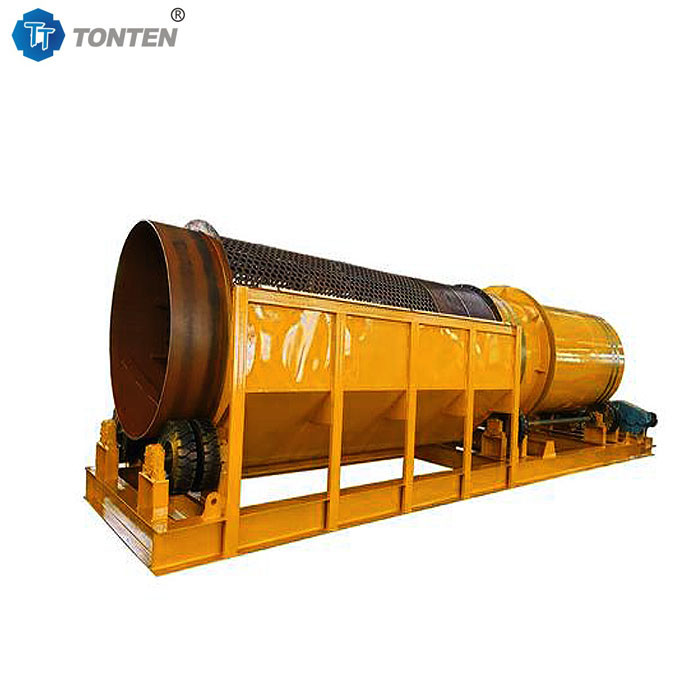

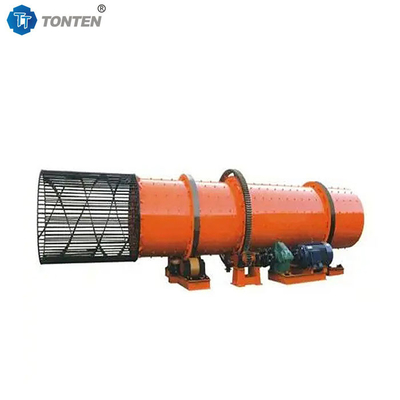

Intelligent Multifunctional Drum Stone Washing Machine Used In Chemical Industry



Product Overview

The drum stone washing machine mainly consists of a drum device, a support device, a transmission device, and a feeding and discharging device. The stone to be cleaned is fed into the inclined installation drum through the feeding device. The drum rotates slowly around its own axis under the drive of the motor through the transmission device. During the rotation of the drum, the stones are constantly lifted, dropped, and rolled inside the drum. There are certain lifting plates or cutting plates inside the cylinder to further strengthen the mixing and flipping of stone materials. At the same time, water continuously flows into the drum to flush the stones. Under the combined action of gravity, friction, and water flow, the soil, impurities, and dust on the surface of the stone are gradually washed away. The cleaned stone is discharged from the discharge port at the other end of the drum, completing the entire stone washing process.



Product Features

1. Thickened channel steel. Has good welding and riveting performance as well as comprehensive mechanical properties, with a sturdy and durable overall structure, and refuses to cut corners.

2. The feeding port is large. The larger the loading port capacity, the fewer times the loader loads, and the significantly higher the loading rate.

3. Increase the hopper size. The larger the capacity, the less frequent the loading frequency of the loader, and the significantly higher the loading rate.

4. Strengthen the sieve mesh. First tied and then woven, with a sturdy structure that is resistant to impact and friction, and has a long service life. The sieve hole is optional from 1-30mm, and can also be customized according to actual needs.



Equipment Placement Conditions

1. Reasonably arrange the storage areas for raw materials and finished products, and generally arrange the production volume of the stone washing machine according to the demand for finished materials during a certain period of time, to prevent pollution caused by environmental or climatic factors during the storage of finished products.

2. Reasonably arrange power supply lines to ensure electrical safety.

3. Reasonably arrange pipelines such as water supply, sedimentation tank, and return water to maintain the cleanliness of the production site.

4. Consider storage, care, transportation, and maintenance during equipment shutdown.



We will make every effort to meet the needs of our customers and provide efficient and high-quality Drum stone washing machines. We prioritize quality based on integrity and reasonable pricing. Our machines are manufactured strictly in accordance with national and international standards, and we conduct testing on each device before delivery. We pursue small profits and high sales, and we can offer you a lower price than other trading companies. If the product is really suitable and can benefit you, the price can be negotiated. Please call or contact us through other means for further discussion.



Parameter Table

Model Simplified RPM Sieve size (mm) Output (m ³/h) Power (kW)
TTD91-90-91 20 2-20 14-120 5.5
TTD91-90-92 20 2-20 15-130 5.5
TTD91-90-93 17 2-20 16-140 5.5
TTD91-90-94 17 2-20 18-180 7.5



Intelligent Multifunctional Drum Stone Washing Machine Used In Chemical Industry 0Intelligent Multifunctional Drum Stone Washing Machine Used In Chemical Industry 1
