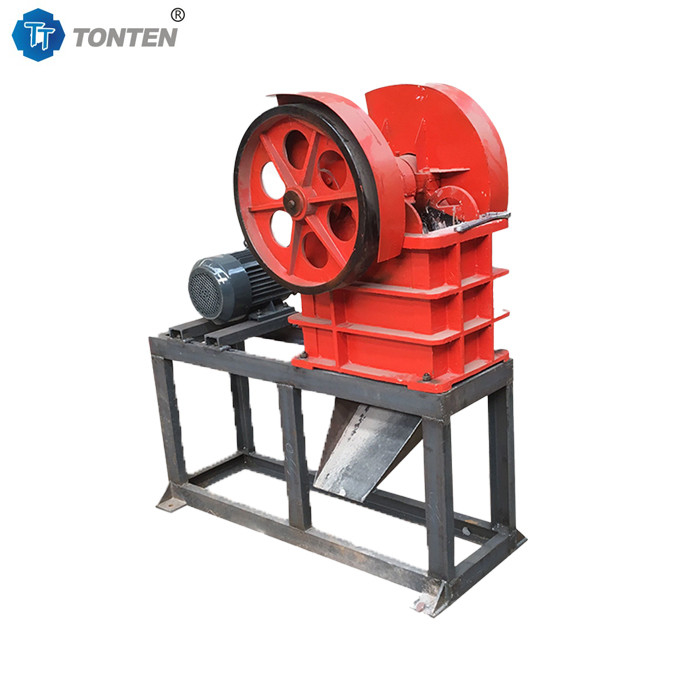

Small Mini Portable Jaw Crusher Gravel Rock Crushing Machine

Small Mini Portable Jaw Crusher Gravel Rock Crushing Machine For Sale

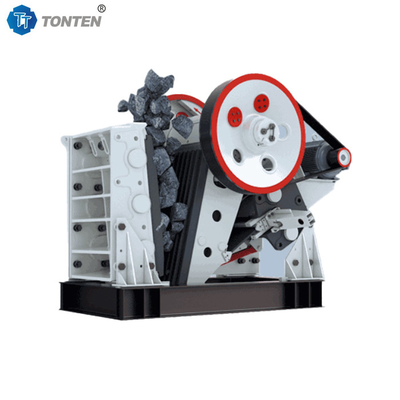

Structural composition:
Crusher body: The fixed jaw plate is fixed to the frame and is responsible for supporting the material; The movable jaw plate: Moves up and down under the drive of the motor to crush the material; Transmission system: Motor: Provides power, usually uses a high-efficiency motor or diesel engine that can also work outdoors; Belts and gears: Transmit the motor power to the crusher and control the movement of the movable jaw plate; Chassis: Tires or tracks: Facilitate the movement of the equipment and adapt to the needs of different construction sites; Feed port and discharge port: Adjustable design: Adjust the particle size of the crushed material as needed.

Working principle of small portable jaw crusher machine:
Feeding: The material enters the TONTEN jaw crushing chamber through the feed port.
Crushing process: The motor drives the movable jaw plate to move up and down. When the movable jaw plate moves downward, the material is compressed and crushed; when the movable jaw plate moves upward, the crushed material is discharged through the discharge port.
Discharging: The crushed material is discharged through the discharge port to reach the required particle size. The discharge particle size can also be adjusted according to customer requirements.
Circulation process: The equipment continues to work, and the material is continuously fed, crushed and discharged, forming a cycle, which greatly improves production efficiency and saves manual transmission.

Jaw crusher machine specification:

Customer site:
