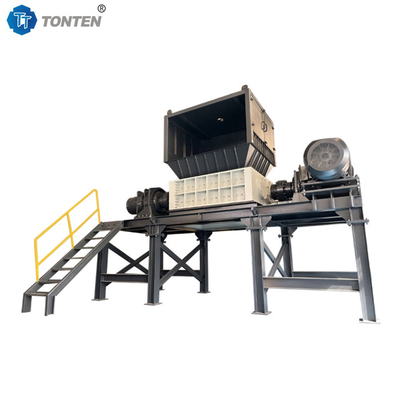

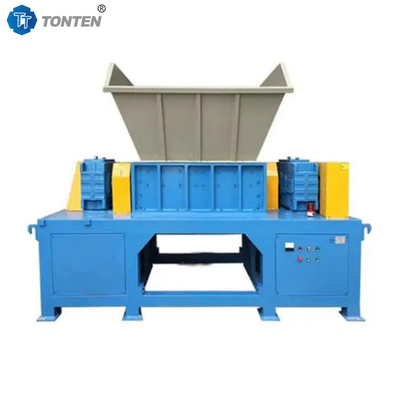

Double Shaft Shredder Metal Garbage Shredder Plastic Wood Crusher
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-S600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Small models are packed in wooden boxes, large models load in containers |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Motor Power: | 11x2kw | Capacity: | 600-800kg/h |
|---|---|---|---|
| Blade Number: | 24 | Feed Port: | 900x860mm |
| Blade Diameter: | 220/320mm | Name: | Double Shaft Shredder |
| Item: | Plastic Wood Crusher | Key Words: | Metal Garbage Shredder |
| Highlight: | Plastic Wood Crusher,Double Shaft Shredder,Metal Garbage Shredder |
||
Product Description
Double Shaft Shredder Metal Garbage Shredder Plastic Wood Crusher
Introduction For Double Shaft Shredder:
Double shaft shredder machine equipment is mechanical crushing equipment specifically designed for processing solid waste. The main function of a shredder is to shred various solid waste materials (such as general industrial waste, leather and fabric, household waste, pipes, car shells, films, waste plastics, metals, paper, wood, electronic waste, paint cans, iron sheets, rubber, tires, kitchen waste, etc.) into smaller pieces. This can reduce the volume of solid waste and achieve the effect of reducing volume and quantity. Facilitating subsequent processing, packaging, and recycling. Due to its simple structure, stability, and reliability, it is widely used in fields such as waste recycling and garbage disposal.
Workflow:
Feed: Solid waste is first sent to the double shaft shredder machine through the conveying system.
Shredding: The blades or shredding devices inside the shredder machine tear waste into smaller pieces. The cutting tools in the knife box crush solid waste through principles such as cutting, squeezing, and tearing. During the tearing process, a strong impact force is generated between the blade and the material, causing the material to break into small pieces.
Discharge: The discharge is transported to the discharge bin through the conveying system or directly discharged into the finished product through the bottom discharge port of the double shaft shredder machine.
Specification:
|
Model |
Dimension(mm) |
Input feed size(mm) |
Blads(mm) |
Motor power(kw) |
Weight(kg) |
|
TT-S600 |
2600×1200×1800 |
900×860 |
200 |
11×2 |
2300 |
|
TT-S800 |
3120×1300×1650 |
980×900 |
260 |
15×2 |
3100 |
|
TT-S1000 |
3300×1900×2200 |
1000×920 |
300 |
22×2 |
5200 |
|
TT-S1200 |
3500×2000×2300 |
1200×980 |
320 |
30×2 |
6400 |
|
TT-S1500 |
4100×2100×2800 |
1500×1000 |
550 |
55×2 |
7200 |
|
TT-S1600 |
5800×2400×3300 |
1800×1206 |
560 |
75×2 |
7800 |
|
TT-S1800 |
6100×2700×3500 |
2000×1490 |
600 |
90×2 |
8800 |
Shredder machine workshop:
