Large Capacity Easy Clean Screening System for Mining Operations
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-SFJ02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 5-11 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| Capacity: | Depends On The Size And Type Of Materials | Layers: | 1-6/1-5 |
|---|---|---|---|
| Screen Drum Length: | 3meter | Automation Level: | Fully Automatic |
| Measurement Unit: | Unit | Selling Points: | Easy To Operation |
| Liner Thickness: | 10mm | Mesh Size: | 1.5x3.6m |
Product Description

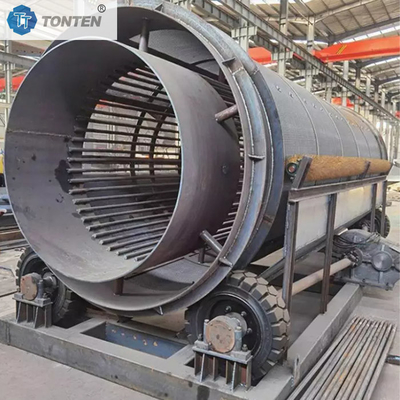

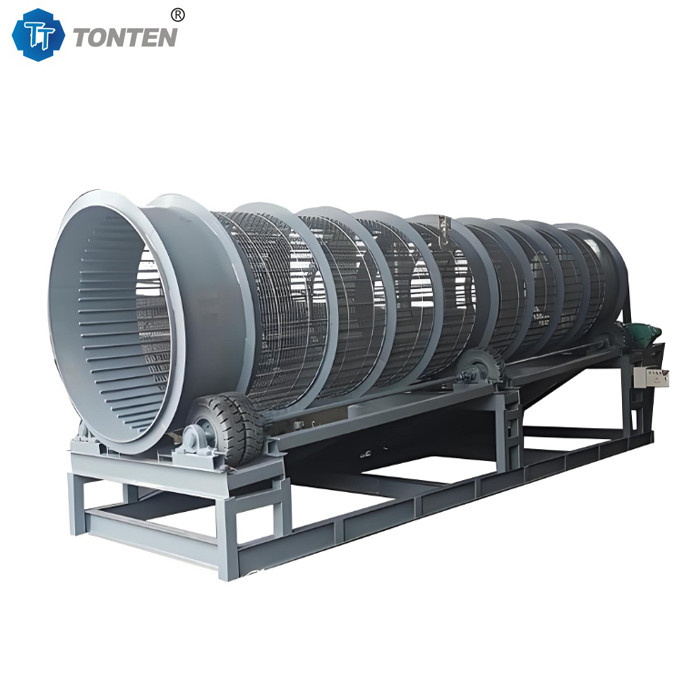

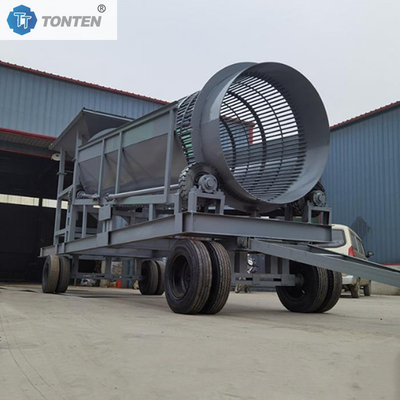

Large Capacity Easy Clean Screening System for Mining Operations
Product Introduction
The screening machine is mainly composed of an electric motor, a reducer, a drum device, a frame, a feeding hopper, a discharging hopper, etc. During operation, materials enter the inclined drum and roll over as the drum rotates. Qualified undersized materials are discharged through the sieve holes, while unqualified undersized materials are discharged from the end of the drum. By adjusting the sieve hole size and the length of the sieve section, multi-stage screening can be achieved. In addition, it has a simple and reliable structure, smooth operation, good sealing, low pollution, convenient network replacement, fine grading, large sorting ratio, high output, accurate sorting, low failure rate, and easy maintenance. Screening machines are widely used in various fields such as garbage comprehensive treatment, mining, building materials, chemical industry, metallurgy, etc. They can effectively achieve material grading and screening, improve production efficiency, and reduce labor intensity. They are key equipment on many production lines.
Product Advantages
Clear and concise structure,The overall structure is simple, and some models adopt detachable casting large rolling rings and modular design, which is easy to maintain, inspect and install, reducing maintenance costs; The shaftless design avoids material entanglement, and the screen support is stable, running smoothly without vibration.
Superior screening performance
Using specially designed wear-resistant screen mesh, with high screening efficiency, large processing capacity, and precise grading; The material flips and rolls inside the drum, which can eject the material stuck in the sieve hole, effectively preventing blockage and ensuring screening accuracy.
Using specially designed wear-resistant screen mesh, with high screening efficiency, large processing capacity, and precise grading; The material flips and rolls inside the drum, which can eject the material stuck in the sieve hole, effectively preventing blockage and ensuring screening accuracy.
Strong durability
Using wear-resistant materials and innovative screen structure, some screens can be replaced with sheet connections to extend the service life of equipment and screens, and reduce the frequency of accessory replacement.
Using wear-resistant materials and innovative screen structure, some screens can be replaced with sheet connections to extend the service life of equipment and screens, and reduce the frequency of accessory replacement.
Operating Principle
The motor of the screening machine drives the drum to rotate, and the material rolls inside the drum. The fine material is separated by the sieve, and the coarse material is discharged from the lower end, achieving graded screening.
Parameter List
| Drum Screen Model | Processing Capacity per Hour (m³/h) | Outer End Diameter (mm) | Length (mm) | Power (KW) | Overall Dimensions (mm) |
| GS1230 | 20 - 50 | 1200 | 3000 | 3 | 3580×1590×1675 |
| GS1530 | 40 - 80 | 1500 | 3000 | 5.5 | 3980×1790×1975 |
| GS1830 | 80 - 150 | 1800 | 3000 | 7.5 | 4150×1870×2240 |
