Product Details:

Place of Origin: China
Brand Name: TONTEN
Model Number: TT-SFJ03

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Container
Delivery Time: 5-11 work days
Payment Terms: T/T
Supply Ability: 20 units/month
Get Best Price Contact Now

Detail Information

Cylinder Speed: 28-45r/min Screen Capacity: 200-300m³/h
Frequency: 50Hz-60Hz Hopper Size: 3600*1600mm
Principle: Different Conductivity Of Substances Use For: Mud Stone Soil Clay
Reducer: JZQ400x3 Production Process: Vibration Separation

Product Description

High Efficiency Precise Separation Screening Machine Low Maintenance



Product Introduction

High-efficiency sifter adopts precise separation technology, equipped with adjustable screen and automatic control to realize flexible sorting. Stainless steel ensures durability and the low noise design is suitable for industrial environments. Ideal for use in mining, chemical processing and food processing, they increase capacity and reduce maintenance costs.

Product Advantages
The sieving machine is characterized by simple structure, convenient installation and maintenance, high efficiency and even screening, strong processing capacity, good anti-clogging, suitable for wet and viscous materials, adjustable screening accuracy, low noise, less dust, good environmental protection, and durability and long service life.



Simple and compact structural design
Tumbler screening machine adopts modular design, the overall structure is simple and solid, the layout of each component is scientific and reasonable. The installation process does not require complex debugging, and can be quickly positioned and fixed, saving installation time and labor costs. During daily maintenance, the screen mesh, bearings and other wear parts can be dismantled conveniently, and the replacement process is simple and efficient, which greatly reduces the frequency of downtime for maintenance and is especially suitable for industrial scenarios that require continuous operation.



Highly efficient and uniform screening efficiency
The continuous rotating motion of the drum makes the material form a uniform spiral trajectory in the drum, which fully contacts the screen surface and avoids the accumulation of material or dead space of screening. By adjusting the drum inclination and rotation speed, the residence time of the material in the cylinder can be precisely controlled, realizing the efficient classification of materials with different particle sizes.



Large processing capacity to match the high production capacity
The cylinder diameter and length of the tumbler screen can be customized according to the actual demand, and the hourly processing capacity of a single machine can reach tens to hundreds of tons, which meets the screening requirements of large production capacity in mining, gravel quarry and other scenes. Its continuous feeding and discharging design can seamlessly connect the crushing equipment at the front end of the production line with the conveying system at the back end, forming an automated workflow and significantly improving the overall production efficiency.



Strong clogging resistance to adapt to complex materials

The curved design effectively removes the adherents on the screen mesh through the self-weight of the material and centrifugal force to minimize the clogging phenomenon. For wet coal, viscous chemical raw materials and other difficult to screen materials, can be equipped with comb screen with inclined angle or add a clearing device, to further enhance the anti-clogging ability, to ensure that the screening process is stable and continuous.



Operating Principle

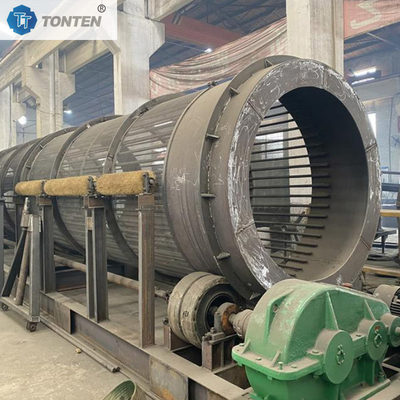

The sieving machine adopts scientific rotary design, and the central separating drum consists of a number of ring-shaped flat steel rings to form the screen structure. The equipment is equipped with plate-type automatic sieve cleaning device. During the screening process, the sieve cleaning device produces relative motion with the sieve body, and continuously “combs” the sieve body to ensure that the sieve body stays clean in the whole process operation, and put an end to the impact of screening performance due to the clogging of the sieve holes.



Parameter List

Drum Screen Model Processing Capacity per Hour (m³/h) Outer End Diameter (mm) Length (mm) Power (KW) Overall Dimensions (mm)
GS1230 20 - 50 1200 3000 3 3580×1590×1675
GS1530 40 - 80 1500 3000 5.5 3980×1790×1975
GS1830 80 - 150 1800 3000 7.5 4150×1870×2240
