Continuous Operation Rotary Screening Machine Large Capacity Stable Performance

Continuous Operation Rotary Screening Machine Large Capacity Stable Performance

Product Details:

Place of Origin: China
Brand Name: TONTEN
Model Number: TT-SFJ04

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Container
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 20 units/month
Get Best Price Contact Now

Detail Information
Marketing Type: Ordinary Product Sorting Accuracy: >99%
Production Capacity: ≥20T/H, 20-100(t/h)(can Customized) Durability: Made With High-quality Materials For Long-term Use
Control Method: Variable Frequency Drive Screening Efficiency: Depends On The Material And Screening Method
Structure: Conveyor System Prodtce Name: Drum Screen Machine,roller Screen

Product Description

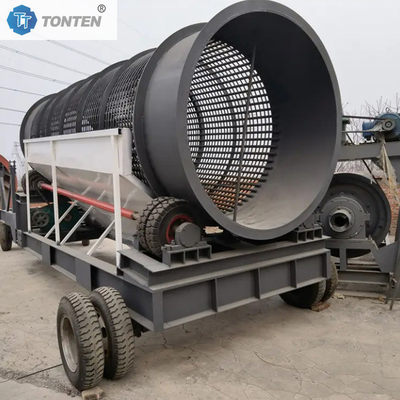

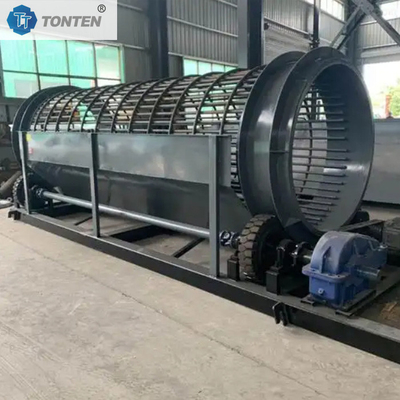

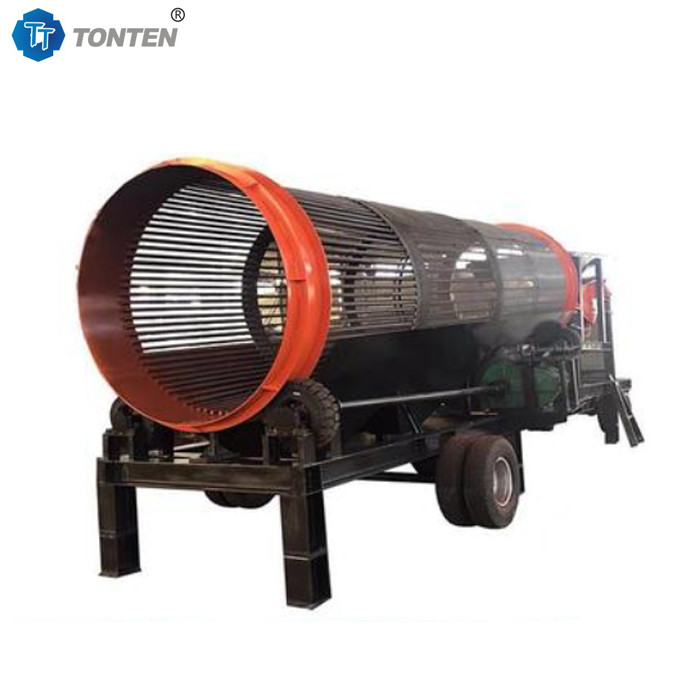

Continuous Operation Rotary Screening Machine Large Capacity Stable Performance



Product Introduction

Sieving machine is a kind of industrial screening equipment that realizes material classification through drum rotation, which is composed of motor, reducer, drum device, frame, sealing cover and inlet and outlet. When working, the motor drives the drum to rotate through the reducer, and the materials are subjected to tilting and rotating in the drum, and the fine materials are discharged through the screen mesh, and the coarse materials are output from the end of the drum. This equipment is widely used in mining, building materials, chemical industry, metallurgy, electric power and other fields, suitable for coal, ore, sand, coke and other types of materials, especially good at dealing with wet and easy to clog materials, to achieve high efficiency and accurate grading, and help to improve production efficiency and quality.

Product Advantages
Simple structure, convenient installation, easy maintenance, reduce maintenance costs and time; part of the modular design, easy to quickly assemble and replace parts.


High efficiency
High screening efficiency, large processing capacity, special screen mesh is not easy to block, and the screen mesh is mostly combined or piece-loaded connection, which can be flexibly replaced to meet the needs of different materials and particle size.



Operation Characteristics
Smooth running, low noise; sealed structure design to reduce dust spillage, good environmental protection; part of the equipment adopts frequency conversion drive, energy saving and high efficiency.



Durability

High-quality materials are used, and the key parts are strengthened to resist abrasion and impact, with long service life and low failure rate.


Applicability
Wide range of application, can handle a variety of materials such as ore, sand, coal, organic fertilizer, etc., especially good at coping with wet, sticky and other easily clogged materials, and the installation of small tilt angle to adapt to different working conditions.



Operating Principle

Sieving machine using scientific and reasonable rotary structure, the center of the separation drum by a number of ring-shaped flat steel rings constitute the screen structure. The equipment is equipped with plate-type automatic sieve cleaning mechanism, in the screening operation, the sieve cleaning mechanism and the sieve body to form a relative movement, continue to the sieve body “combing”, to ensure that the sieve body in the entire workflow to maintain clean, to avoid clogging due to the sieve holes and affect the efficiency of the sieve.



Parameter List

Drum Screen Model Processing Capacity per Hour (m³/h) Outer End Diameter (mm) Length (mm) Power (KW) Overall Dimensions (mm)
GS1530 40 - 80 1500 3000 5.5 3980×1790×1975
GS1830 80 - 150 1800 3000 7.5 4150×1870×2240
GS2030 130 - 200 2000 3000 11 4230×1950×2950
