Circuit Board Wood Cans Shredding Double Shaft Shredder Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-DS800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Small models are packed in wooden boxes, large models load in containers |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Rated Power: | 25x2kw | Spindle Speed: | 25-35 Rpm |
|---|---|---|---|
| Number Of Tools: | 24-36 | Discharge Size: | 10-100 Mm (adjustable) |
| Spindle Diameter: | 250-300 Mm | Blade Arrangement: | Staggered Spiral Arrangement |
| Pushing Device: | Hydraulic Pusher (optional) | Equipment Item: | Double Shaft Shredder Machine |
Product Description
Circuit Board Wood Cans Shredding Double Shaft Shredder Machine
The main components of the double-shaft multifunctional shredder are:
Frame: welded with high-strength steel plates to ensure the stability and impact resistance of the equipment.
Double-shaft system: two parallel main shafts, with removable cutters installed on the surface, synchronously rotating in the opposite direction through gears or chains.
Cutter: Made of high-hardness alloy steel (such as Cr12MoV, D2, etc.), wear-resistant and impact-resistant, replaceable or repairable.
Screen (optional): Control the particle size of the discharge material. Some models can adjust or replace screens with different apertures.
Drive system: Motor + reducer (or hydraulic motor) provides low-speed and high-torque power.
Hydraulic system (optional): used for pushing, overload protection and tool gap adjustment.
Control system: PLC + touch screen to achieve automated operation, fault alarm and reverse protection.
Advantages:
1. Low speed and high torque: The speed is usually 15-40 rpm, ensuring efficient crushing of large pieces of material with low energy consumption.
2. The double shafts rotate in the opposite direction, and the cutters interlock to shear, tear and squeeze the material. The crushed materials are discharged through the screen (if any), and the unqualified materials continue to be crushed in a cycle.
3. Safety protection: When encountering super-hard materials or jamming, the PLC controls automatic reversal or hydraulic system pressure relief protection.
4. Modular tools: can be replaced separately to reduce maintenance costs.
5. Intelligent control: supports automatic lubrication, overload protection and remote monitoring (optional).
Double shaft shredder specification:
|
Model type |
Dimension size(mm) |
Feed size(mm) |
Blads(mm) |
Motor power(kw) |
Weight(kg) |
|
TT-S600 |
2300x1500x1620 |
600X460 |
200 |
11×2 |
1580 |
|
TT-S800 |
2820×1600×2050 |
800X600 |
260 |
15×2 |
3500 |
|
TT-S1000 |
3300×1900×2200 |
1000×920 |
300 |
22×2 |
5000 |
|
TT-S1200 |
3500×2000×2500 |
1200×980 |
320 |
30×2 |
6200 |
|
TT-S1500 |
4100×2260×2800 |
1500×1000 |
550 |
55×2 |
7000 |
|
TT-S1600 |
5800×2400×3300 |
1800×1206 |
560 |
75×2 |
7500 |
|
TT-S1800 |
6100×2700×3500 |
2000×1490 |
600 |
90×2 |
8900 |

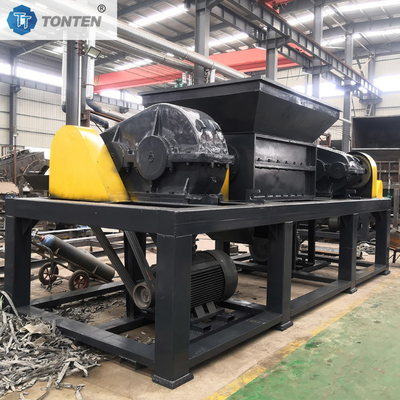

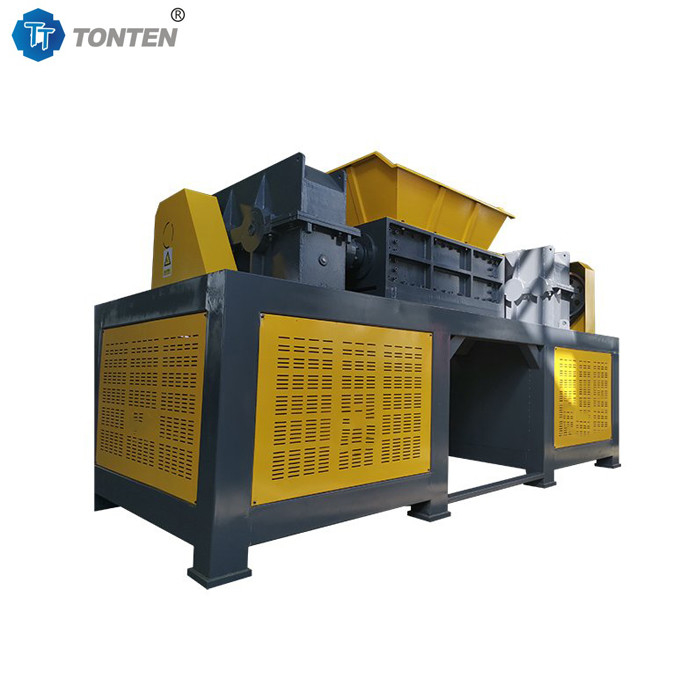

Shredder machine photo:
