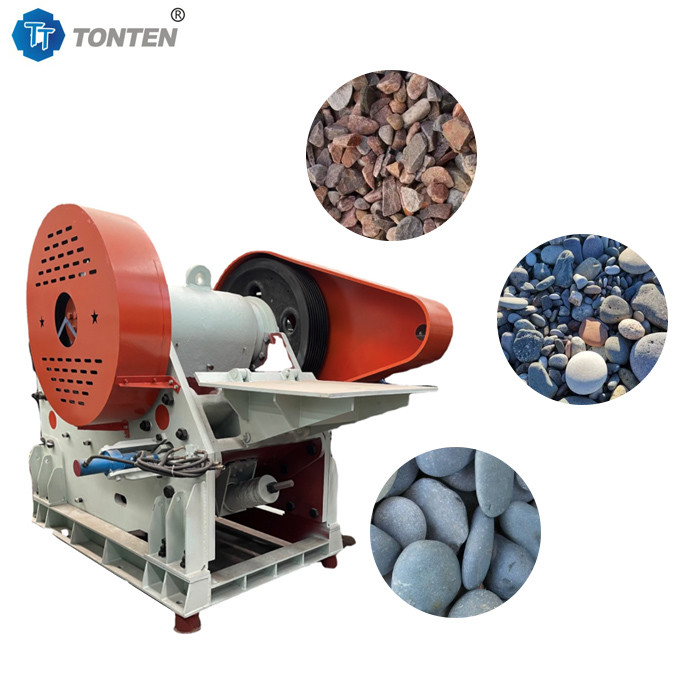

Pebble Glass Concrete Jaw Crusher Machine Crushing Crusher Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | PE400x600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing, container or as required |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Processing Capacity: | 20-70t/hour | Specific Power Consumption: | 0.5-1.2kWh/ton |
|---|---|---|---|
| Maximum Feed Size: | 350mm | Rack Type: | Q345B,ZG270-500 |
| Lining Material: | ZGMn13,42CrMo | Spindle Speed: | 180-330rpm |
| Design Life: | Key Components Can Be Replaced | Key Words: | Pebble Glass Concrete Jaw Crusher Machine |
Product Description

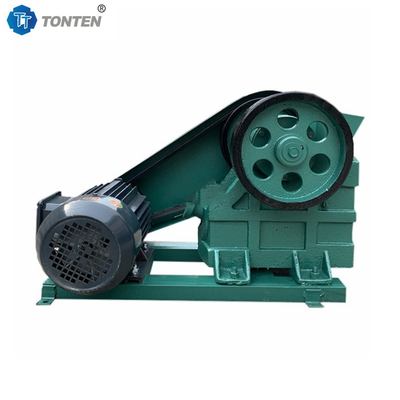

Pebble Glass Concrete Jaw Crusher Machine Crushing Crusher Machine
Working principle of jaw crusher:
The jaw crusher achieves crushing through the relative movement between a movable jaw and a fixed jaw. The material to be crushed enters the crushing chamber of the jaw crusher through the feed port.
When the movable jaw moves downward, the movable jaw and the fixed jaw form a wedge-shaped crushing chamber, and the material is periodically squeezed in the chamber, gradually reducing its size. The liner tooth design generates lateral shear force to help the material cleave and crush. When the movable jaw moves upward, the crushed material is squeezed toward the fixed jaw. The crushed material is discharged through the discharge port. Large particles are crushed first in the upper part of the crushing chamber. The crushed material undergoes secondary crushing when it moves downward to ensure uniform discharge.
Advantages:
1.Simple structure: The jaw crusher has a simple design and is easy to manufacture and maintain.
2.Reliable operation: Due to the working principle and structure of the jaw crusher, the jaw crusher performs well in operation with a low failure rate.
3.High output: The jaw crusher has a strong processing capacity and is suitable for large-scale production.
Introduction:
Jaw crushers are widely used in mining, metallurgy, building materials, roads, railways, chemicals and other industries for crushing materials of various hardness. Ordinary jaw crusher: suitable for crushing various ores and rocks, widely used in mining and building materials industries. Fine jaw crusher: used for fine and ultra-fine crushing, suitable for crushing some harder materials. Compound swing jaw crusher: The moving jaw has a compound swing motion, which is suitable for crushing medium hardness materials. Simple swing jaw crusher: The moving jaw makes a simple up and down motion along the fixed jaw, with a simple structure, which is suitable for small-scale production.
Jaw crusher machine specification:
|
Model |
Feed port size (mm) |
Maximum feed size (mm) |
Discharge port adjustment range (mm) |
Machine capacity (T/H) |
Speed |
Power (KW) |
Weight |
|
PE-250X400 |
250X400 |
210 |
20-60 |
5-20 |
300r/min |
15 |
2800kg |
|
PE-400X600 |
400X600 |
360 |
40-100 |
16-50 |
260r/min |
30 |
7600kg |
|
PE-500X750 |
500X750 |
450 |
50-100 |
40-100 |
275r/min |
55 |
12000kg |
|
PE-600X900 |
600X900 |
500 |
65-160 |
50-150 |
250r/min |
75 |
18000kg |
|
PE-750X1060 |
750X1060 |
650 |
80-140 |
110-300 |
250r/min |
90-110 |
29000kg |
|
PE-900X1200 |
900X1200 |
780 |
90-165 |
220-350 |
200r/min |
110-132 |
35000kg |
|
PE-1200X1500 |
1200X1500 |
1100 |
150-300 |
400-500 |
180r/min |
160-180 |
51800kg |
|
PE-250X750 |
250X750 |
210 |
25-60 |
13-50 |
300r/min |
30 |
5560kg |
|
PE-250X1000 |
250X1000 |
210 |
25-80 |
20-80 |
330r/min |
42 |
7120kg |
