Gold Mining Ball Mill Grinding Machine Potash Feldspar Ball Mill
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | BM-750x1060 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 2200-2800USD/Set |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-10work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Cylinder Diameter: | 1.5-6m Customized | Lining Material: | High Manganese Steel |
|---|---|---|---|
| Bearing Type: | Sliding Bearing, Rolling Bearing | Ball Filling Rate: | 30% - 45% Cylinder Volume |
| Grinding Media Type: | Steel Balls, Ceramic Balls, Rod Media | Grinding Efficiency: | 0.5kWh/t - 30kWh/t |
| Installation Angle: | Horizontal/inclined | Type: | Gold Mining Ball Mill Grinding Machine |
| Highlight: | Gold Mining Ball Mill,Grinding Machine Ball Mill,Potash Feldspar Ball Mill |
||
Product Description

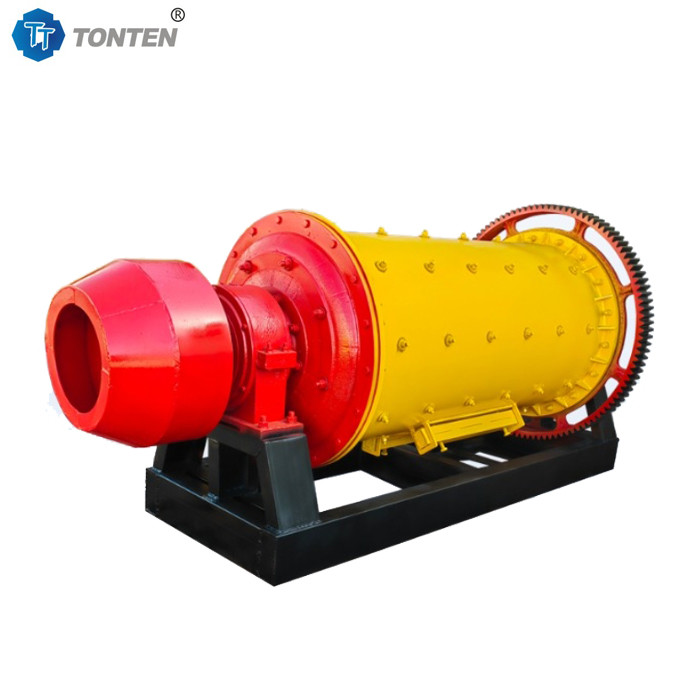

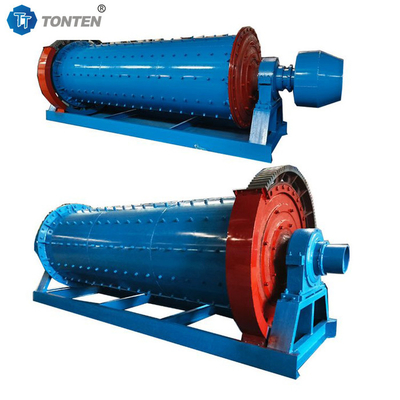

Gold Mining Ball Mill Grinding Machine Potash Feldspar Ball Mill
Machine overview:
Ball mill is a crushing equipment that drives grinding media (such as steel balls, ceramic balls, etc.) to impact and grind materials through rotating cylinders. It is widely used in mining, building materials, chemical industry, metallurgy and other industries. Its core function is to grind block or granular materials to micron or even nanometer fineness to meet subsequent process requirements. It grinds the materials and grinding balls in the cylinder to achieve the refinement and mixing of materials. TONTEN Machinery ball mill is made of high-quality materials, with strong wear resistance, which prolongs the service life of the equipment. It has reasonable design, convenient daily maintenance and overhaul, and reduces maintenance costs. The ball mill can handle different kinds of materials and is suitable for dry grinding and wet grinding.
Features of ball mill:
1. Good sealing: effectively prevent dust leakage and protect the environment.
2. High efficiency: with high crushing efficiency, the required fineness can be achieved in a short time.
3. Controllable particle size: obtain the target particle size by adjusting parameters such as grinding time and medium ratio
4. Continuous operation: supports 24-hour continuous operation, suitable for large-scale industrial production.
5. Stable structure: The cylinder is welded with thick steel plates, and the lining is wear-resistant and has a long service life.
6. Strong adaptability: It can handle materials of different hardness (Mohs hardness 3-9), such as ore, coal, cement clinker, fertilizer, etc.
Ball Mill Grinding Machine Parameters:
|
Items |
Simplified speed |
Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Power(kw) | Weght(t) | ||||
| BM900x1800 | 36-38 | 1.5 |
≤20 |
0.075-0.89 | 0.65-2.5 | 18.5 | 5.8 | ||||
| BM900x3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.95 | ||||
| BM1200x2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.56 | ||||
| BM1200x3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 14.31 | ||||
| BM1200x4500 | 32.4 | 5.2 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 | ||||
| BM1500x3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 19.5 | ||||
| BM1500x4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 |
22.1 |
||||
| BM1500x5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 | ||||
| BM1830x3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 | ||||
| BM1830x4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 | ||||
| BM1830x6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 | ||||
| BM1830x7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 | ||||
| BM2100x3000 | 23.5 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 45 | ||||
