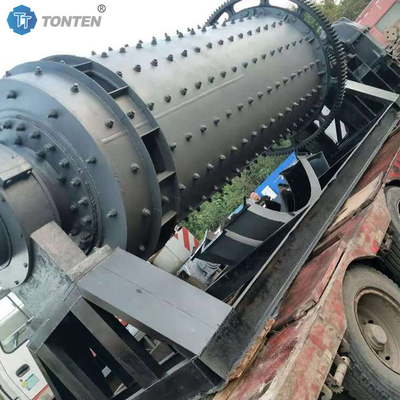

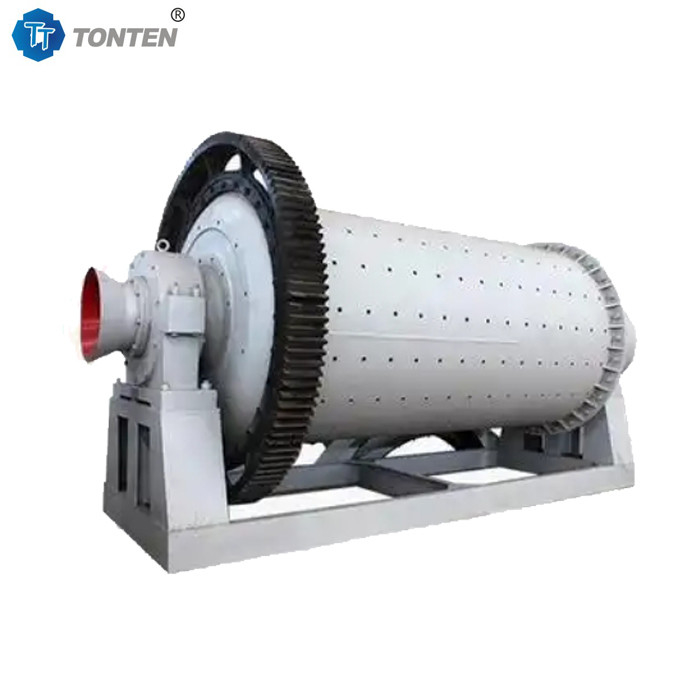

Lime Overflow Ball Mill Dry Wet Type Grinding Ball Mill Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | BM-2700x3600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Cylinder Diameter: | 2700mm | Cylinder Length: | 3600mm |
|---|---|---|---|
| Production Capacity: | 30-50tons/h | Overflow Particle Size (P80): | 0.074-0.2mm |
| Rated Speed: | 18-21 RPM | Overflow Weir Height: | 300-500mm (adjustable) |
| Main Bearing Diameter: | Φ1000-Φ1200mm | Name Type: | Lime Overflow Ball Mill Grinding Machine |
Product Description
Lime Overflow Ball Mill Dry Wet Type Grinding Ball Mill Machine
Ball mill features:
1. Cylinder structure: The cylinder is usually cylindrical and contains grinding balls to ensure uniform grinding of materials.
2. Feeding and discharging system: The ball mill is reasonably designed to ensure smooth material flow and reduce blockage.
3. Transmission device: The ball mill includes a motor, a reducer and a gear to ensure stable rotation of the cylinder.
4. Liner: A liner is set on the inner wall of the cylinder to protect the cylinder and improve the grinding efficiency of the grinding balls.
5. Small footprint: The structure is compact and suitable for various site layouts
6. Low over-grinding rate: Compared with other crushing equipment, the ball mill has less over-grinding of materials.
7. Adjustable particle size: By adjusting parameters such as grinding time and medium ratio, different fineness (0.074-0.5mm) can be obtained.
Application areas:
Cement: grinding of limestone, clinker, gypsum, and cement production.
Mining: crushing of gold, copper, iron ore and other ores before beneficiation.
Chemicals: ultrafine grinding of pigments, coatings, and fertilizer raw materials.
Metallurgy: preparation of metal powders (such as aluminum powder, iron powder).
Environmental protection: recycling of solid waste (such as waste batteries).
Classification of ball mills:
According to the grinding method
1. Dry ball mill: suitable for moisture-sensitive materials such as quartz sand.
2. Wet ball mill: grinding with water to reduce dust, suitable for mineral processing.
According to the structural form
1. Horizontal ball mill: the most common, placed horizontally.
2. Vertical ball mill: saves space and is used for ultra-fine grinding.
According to the discharge method
1. Overflow type: fine materials overflow with the slurry, and the particle size is finer.
2. Grid type: discharges through the screen plate, with a large processing capacity.
Ball Mill Grinding Machine Parameters:
|
Items |
Simplified speed |
Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Power(kw) | Weght(t) | ||||
| BM900x1800 | 36-38 | 1.5 |
≤20 |
0.075-0.89 | 0.65-2.5 | 18.5 | 5.8 | ||||
| BM900x3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.95 | ||||
| BM1200x2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.56 | ||||
| BM1200x3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 14.31 | ||||
| BM1200x4500 | 32.4 | 5.2 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 | ||||
| BM1500x3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 19.5 | ||||
| BM1500x4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 |
22.1 |
||||
| BM1500x5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 | ||||
| BM1830x3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 | ||||
| BM1830x4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 | ||||
| BM1830x6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 | ||||
| BM1830x7000 | 24.1 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 | ||||
| BM2100x3000 | 23.5 | 16 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 45 | ||||
