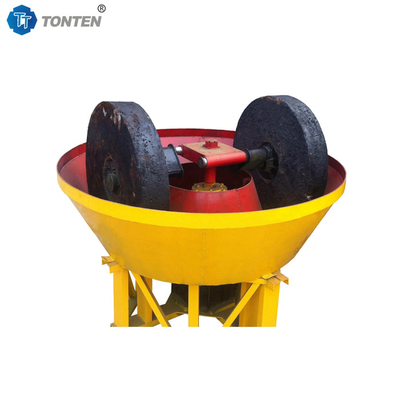

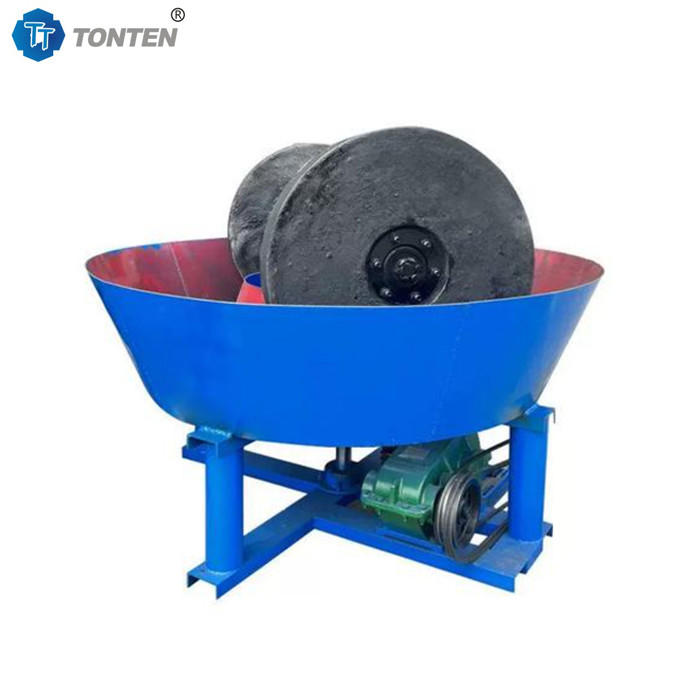

Gold Grinding Machine Model 1200B Gold Mine Wet Pan Mill in Sudan
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TONTEN |
| Model Number: | 900*140 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Product Name: | Wet Pan Mill | Usage: | Gold Selection |
|---|---|---|---|
| Input Size: | 30mm | Power: | 7.5KW |
| Rotate Speed: | 21-23 R/min | Application: | Gold Ores,copper Ores,stones,rocks |
| Color: | Customized | Keywords: | Gold Mill |
| Highlight: | Wet Pan Mill Gold Grinding Machine,1200B Gold Grinding Machine,Sudan Gold Grinding Machine |
||
Product Description
Hot Selling Gold Grinding Machine Model 1200B Gold Mine Wet Pan Mill in Sudan
Product Description:
Wet grinding machine is called wet grinding machine, according to the different operation methods, divided into gold grinding machine, amalgamated mercury grinding machine, iron grinding machine, electric grinding; according to the different structure methods, divided into wheel grinding machine, double roller grinding machine, three roller grinding machine. The wet mill is based on the old stone mill and developed through modernization. It is used for grinding operations of various ferrous metals,non-ferrous metals, non-metallic minerals, as well as grinding, selecting and processing operations of rare precious metals gold and silver, and is the grinding equipment of the majority of small and medium-sized mineral processing plants and powder making plants.
Parameters:
| Product Model | Motor Power(KW) | Capacity(T) | Weight(T) |
| 900*140 | 3 | 0.5-0.8 | 2.3 |
| 1100*180 | 5 | 3.5 | 4.2 |
| 1200*180 | 7.5 | 3.5 | 4.8 |
| 1400*250 | 18.5 | 15 | 8.5 |
| 1500*300 | 22 | 20 | 11 |
Product Features:
Easy installation and maintenance, small investment, high outputApplication scope: widely used in gold, iron, molybdenum, lead, zinc, antimony, black non-ferrous metal processing and other production industries.
1.Thickening roller
Thickened roller, solid material,High wear resistance, durable
2.Spindle drive shaft
Good aging resistance,Durable,Stable and reliable
3.Power device
Safe and reliable,It runs smoothly,The structure is simple
4.Smooth operation
The roller runs smoothly, and it can roll the ore to a fine size in a short time to achieve the mineral monomer dissociation.
Working Principle:
The motor is driven to the reducer through the V-belt, and then the small bevel gear on the reducer drives the big gear connected with the grinding plate, so as to make the rotary table run counter clockwise. The raw materials in the plate are moved by the internal and external scraper when the plate is running, so as to achieve the purpose of uniform mixing. At the same time, the roller supported on the crossbeam is made to rotate by the friction between the raw material and the roller, and the raw material is squeezed, broken, squeezed and broken (repeated operation) until the raw material meets the use requirements. At this time, the discharging scraper is put down, and the raw material overflows out of the plate along the scraper to complete the purpose of mixing, stirring and extrusion.
Application:
It is widely used in gold, iron, molybdenum, lead, zinc, antimony, black nonferrous metal processing and other production industries to dry or wet grind various ores and other grindable materials.
Packing and Shipping:
1.Small parts in wooden boxes
2. Large parts packed in plastic film
3.The whole big machine is packed in a container
