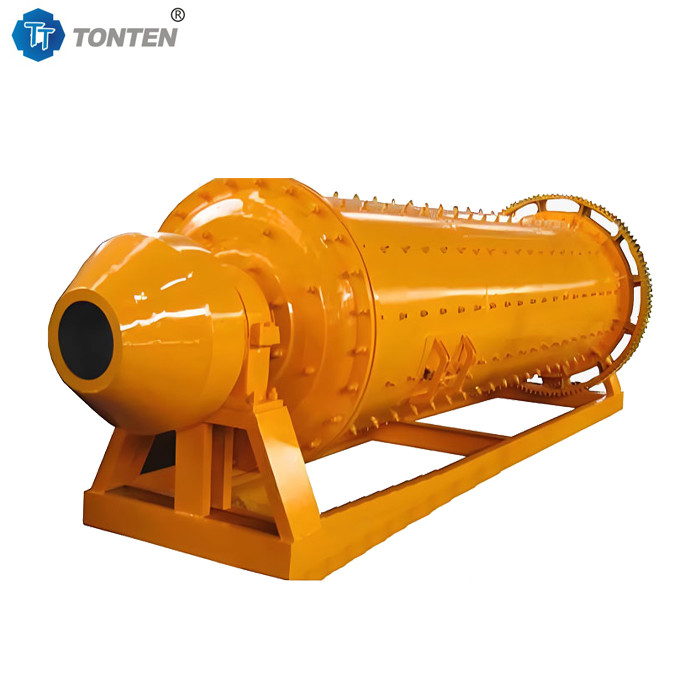

Hot Selling Limestone Powder Mining Ball Mill Grinding Equipment 3-50 Tons
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TONTEN |
| Model Number: | 1200*2400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-25 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Product Name: | Ball Grinding Mill | Keyword: | Large Ball Mill |
|---|---|---|---|
| Voltage: | 220/380/440v | Application: | Iron Ore, Copper, Quartz, Limestone Etc. |
| Material: | Clinker | Color: | Customized Color |
| Liner: | Mn13 | Quality: | High-Quality |
| Highlight: | Hot Selling Limestone Powder Grinding Equipment,Iron Ore Limestone Powder Grinding Equipment |
||
Product Description
Hot Selling Limestone Powder Mining Ball Mill Grinding Equipment 3-50 Tons
Product Description:
This machine has changed the original mill structure, so that the machine body and underframe are integrated, and can be hoisted on the foundation plane at one time during installation. The main bearing adopts double row self-aligning spherical roller bearing, which can reduce energy consumption by 30%. The original grid type forced discharge is changed to overflow type controlled discharge, which can improve the grinding fineness and increase the processing capacity by 15-20%.
Parameters:
| Model | Ball Weight(t) | Max Input Size(mm) | Output Size(mm) | Capacity(t/h) | Power(kw) |
| 900*1800 | 1.5 | 20 | 0.075-0.89 | 0.65-2 | 18.5 |
| 900*3000 | 2.7 | 20 | 0.075-0.89 | 1.1-3.5 | 22 |
| 1200*2400 | 3 | 25 | 0.075-0.6 | 1.5-4.8 | 30 |
| 1200*3000 | 3.5 | 25 | 0.074-0.4 | 1.6-5 | 37 |
| 1200*4500 | 5 | 25 | 0.074-0.4 | 1.6-5 | 55 |
| 1500*3000 | 7.5 | 25 | 0.074-0.4 | 1.6-5.8 | 55 |
| 1500*4500 | 11 | 25 | 0.074-0.4 | 2-5 | 75 |
Working Principle:
This machine is a skeleton ball mill driven by horizontal cylindrical turning gear, external gear and two hoppers. The material enters the first hopper through the hollow shaft screw of the feeding equipment. The hopper is provided with trapezoidal sheath or corrugated sheath, which is equipped with steel balls. Under the action of centrifugal force of the cylinder, the material is ground. After rough grinding in the first hopper, the material enters the second hopper through the single-layer partition. The second hopper has a flat scale plate with steel balls for grinding the material. The powder is discharged from the grid plate to complete the grinding.
Product Features:
1.Energy saving:
Full hydraulic operation is adopted, which is convenient to use and easy to realize automation, and its reliability and service life are greatly improved.
2.Design chores of material discharging Department:
The outlet design is reasonable, and customers can choose the iron remover according to their own needs.
3.Rotary part:
The cylinder, lining plate, medium, partition plate and discharge grate plate of the rotary part are all composed of high-quality components.
4.Large feeding volume of feeding Department:
Reasonable inlet design increases the inlet.
5.High grinding efficiency and good lining quality:
The lining plate and grinding body are made of alumina ceramics, quartz, silex or special materials, and the hard minerals are designed to be free of iron pollution.
6.Adopt closed system to reduce dust:
The ultra-fine ball mill and classifier form a closed system, with negative pressure transmission and small dust, reducing the harm to human body.
Application:
It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal beneficiation, glass ceramics and other production industries. According to the different ore discharge methods, it can be divided into grid type and overflow type.
