Gold Mill Grinding Machine Silver Zinc Gravity Separator Wet Pan Mill
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box packaging or container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Product Features: | Gold Mill Grinding Gravity Separator | Use: | Gold Selection |
|---|---|---|---|
| Feed Size: | 20mm | Motor Power: | 15kw |
| Dimensions: | 2400x2400x1600mm | Roller: | Cast Iron |
| Roller Diameter: | 1600mm | Roller Width: | 600mm |
Product Description
Gold Mill Grinding Machine Silver Zinc Gravity Separator Wet Pan Mill
Working Principle:
The operating principle of gold grinding wet pan mill primarily on the rotation of rollers and the friction between the ore and the ore. After the ore is fed into the mill, it is crushed into fine particles under high pressure by the interaction of two or more rollers. The pressure between the rollers and the rotational speed can be adjusted according to the ore's characteristics, enabling precise control of the ore's particle size. This method not only improves ore processing efficiency but also effectively reduces energy consumption.
Application Areas:
Gold grinding wet pan mill for ore dressing are widely used in the processing of various ores, including gold, copper, lead-zinc, and iron ore. They are suitable not only for crushing hard ores but also for processing softer ores, demonstrating excellent adaptability. In the gold beneficiation process, gold mills can effectively increase gold recovery, reduce metal loss, and enhance overall economic benefits. Gold mills also play a key role in the processing of lead-zinc and copper ores, refining the ore to enhance the effectiveness of subsequent flotation and gravity separation processes.
Features:

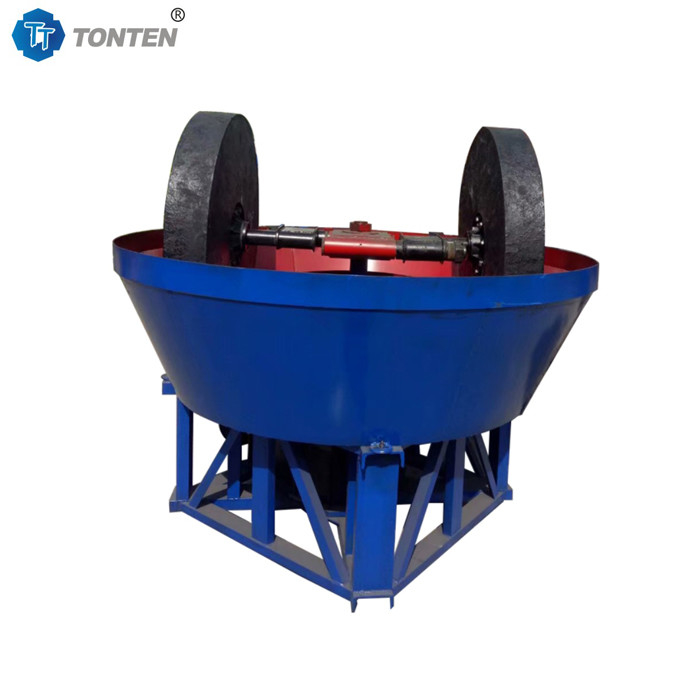

Grinding wheel: The rollers are made of cast iron, heavy and stable, capable of crushing ore to a finer particle size.
Drive shaft: Durable, stable and reliable with excellent aging resistance.
Motor: A copper-core motor provides high power, low noise, and strong overload resistance.
High efficiency: Rapidly processes large quantities of ore, improving beneficiation efficiency.
Versatility: Suitable for crushing and beneficiating a wide range of ores, offering high flexibility.
Precise particle size control: Adjustable roller spacing allows for precise control of ore particle size.
Wear-resistant material: Constructed from highly wear-resistant materials, extending equipment life.
Specification:
|
Model
|
Feeding size
(mm)
|
Output size
(mm)
|
Capacity
(t/h)
|
Speed
(r/min)
|
Motor power
(kw)
|
Weight
(kg)
|
|
900
|
<15
|
0.6-0.07
|
0.3
|
17-19
|
5.5
|
3500
|
|
1000
|
<20
|
0.6-0.07
|
0.5
|
16-18
|
5.5
|
4800
|
|
1100
|
<20
|
0.6-0.07
|
0.6-0.8
|
16-18
|
7.5
|
5200
|
|
1200B
|
<20
|
0.6-0.07
|
0.8-1.2
|
16-18
|
7.5
|
5530
|
|
1200A
|
<20
|
0.6-0.07
|
1-1.3
|
21-23
|
7.5
|
5500
|
|
1300
|
<20
|
0.6-0.07
|
1.5
|
16-18
|
15
|
7560
|
|
1400
|
<20
|
0.6-0.07
|
1.5-2
|
16-18
|
18.5
|
8570
|
|
1500B
|
<30
|
0.6-0.07
|
2.5-3
|
20-22
|
22
|
12600
|
|
1600
|
<30
|
0.6-0.07
|
4-5
|
20-22
|
30
|
15000
|
