Gold Mineral Gold Grinding Machine Wet Stone Wheel Grinding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-1600A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box packaging or container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Roller Diameter: | 1600±20 | Motor Power: | 30kw 6-stage |
|---|---|---|---|
| How It Works: | Disc Grinding | Applicable Areas: | Industrial Mineral Processing And Gold Selection |
| Discharge Size: | 0.5mm | Grinding Method: | Rolling |
| Advantages: | Energy Saving | Name: | Gold Mineral Gold Grinding Machine |
Product Description

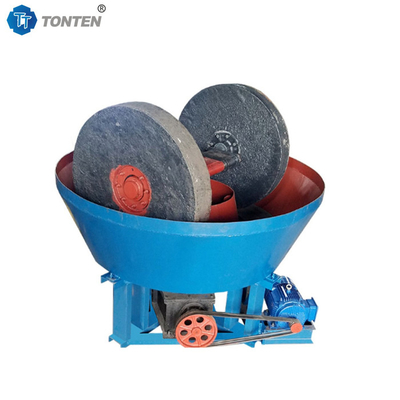

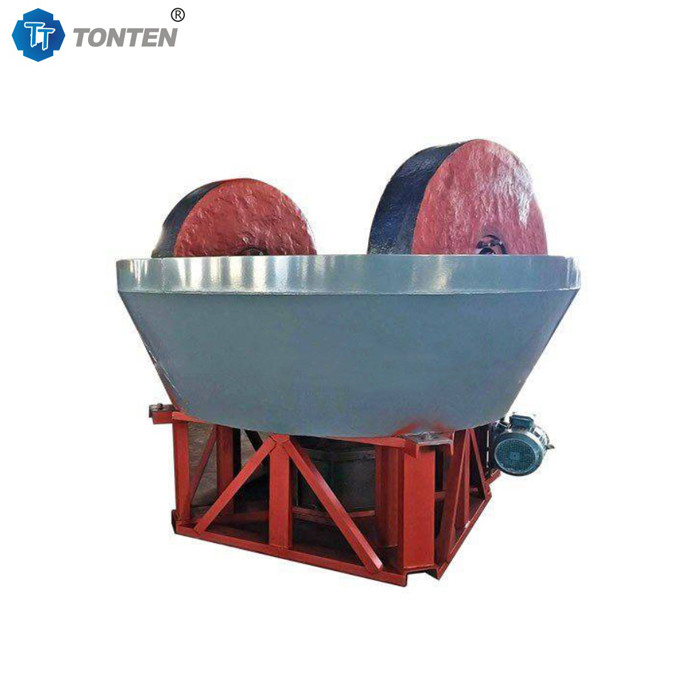

Gold Mineral Gold Grinding Machine Wet Stone Wheel Grinding Machine
Introduction:
Gold grinding machines are highly efficient equipment specifically designed for gold ore beneficiation. The TONTEN gold grinding machine's primary function is to refine raw ore through crushing and grinding, facilitating subsequent gold separation processes. A gold grinding machine typically consists of multiple components, including rollers, a frame, a drive system, and a control system. Its operating principle is to utilize gravity and friction to apply pressure to the ore via the rollers, reducing it to smaller particles. This refinement not only helps increase gold recovery rates but also improves the performance of subsequent flotation or gravity separation processes. Gold grinding machines are designed for high efficiency and low energy consumption, thereby enhancing the overall economic benefits of mining operations.
Features:
High Efficiency: The gold grinding machine boasts a high processing capacity, enabling it to process large quantities of ore in a short period of time, significantly improving production efficiency.
Precise Particle Size Control: The equipment features an adjustable roller spacing that can be adjusted based on ore characteristics to ensure a uniform product particle size that meets the requirements of subsequent processes. Wear-Resistant Materials: The equipment's rollers are typically made of highly wear-resistant alloys, ensuring a long service life and reducing maintenance costs.
Easy Maintenance: The equipment's rational structure facilitates maintenance and overhaul, reducing downtime and improving production efficiency.
Automated Control: Modern gold mills are generally equipped with a PLC automatic control system, which is easy to operate and provides real-time monitoring of equipment operating status, ensuring safety and efficiency.
Small Footprint: The equipment's compact structure facilitates integration with other mineral processing equipment, effectively utilizing production space.
Specification:
|
Model
|
Feeding size
(mm)
|
Output size
(mm)
|
Capacity
(t/h)
|
Speed
(r/min)
|
Motor power
(kw)
|
Weight
(kg)
|
|
900
|
<15
|
0.6-0.07
|
0.3
|
17-19
|
5.5
|
3500
|
|
1000
|
<20
|
0.6-0.07
|
0.5
|
16-18
|
5.5
|
4800
|
|
1100
|
<20
|
0.6-0.07
|
0.6-0.8
|
16-18
|
7.5
|
5200
|
|
1200B
|
<20
|
0.6-0.07
|
0.8-1.2
|
16-18
|
7.5
|
5530
|
|
1200A
|
<20
|
0.6-0.07
|
1-1.3
|
21-23
|
7.5
|
5500
|
|
1300
|
<20
|
0.6-0.07
|
1.5
|
16-18
|
15
|
7560
|
|
1400
|
<20
|
0.6-0.07
|
1.5-2
|
16-18
|
18.5
|
8550
|
|
1500B
|
<30
|
0.6-0.07
|
2.5-3
|
20-22
|
22
|
12000
|
|
1600
|
<30
|
0.6-0.07
|
4-5
|
20-22
|
30
|
14600
|
