Mineral Iron Ore Gold Silver Wet Pan Mill Gold Grinding Mill Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-1300A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box packaging or container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Processing Capacity: | 5-10 TPH | Roller Diameter: | 1300MM |
|---|---|---|---|
| Roller Width: | 1000MM | Roller Spacing: | Adjustable From 1 To 10 Mm |
| Feed Size: | ≤50 Mm | Equipment Weight: | 7600kg |
| Discharge Size: | 0.1-1mm | Name: | Wet Pan Mill Gold Grinding Mill Machine |
Product Description

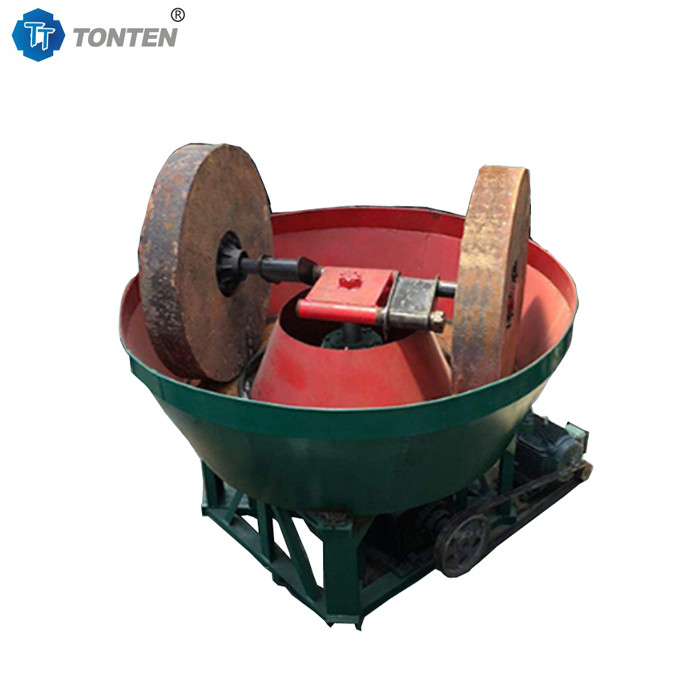

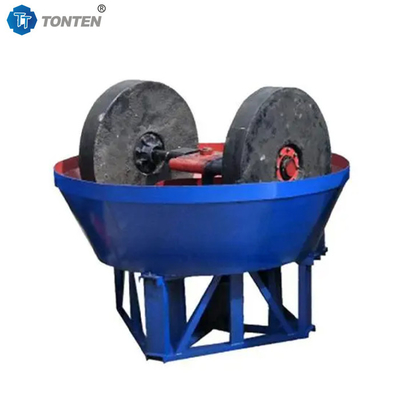

Mineral Iron Ore Gold Silver Wet Pan Mill Gold Grinding Mill Machine
Gold Extraction and Gold Grinding Machine Structure:
Frame: The frame is the basic structure of the equipment and is constructed of high-strength steel, ensuring its stability and durability.
Rollers: The rollers are the core component of the equipment, typically consisting of two or more rollers. The design and material selection of the rollers directly impact the gold grinding results.
Drive System: The drive system is responsible for transmitting the power from the motor to the rollers, typically utilizing an efficient belt or gear drive to ensure stable power output.
Control System: Modern gold extraction and gold grinding machines are equipped with a PLC control system, providing automated operation and monitoring functions to enhance production efficiency and safety.
Feed and Discharge System: The feed and discharge ports are rationally designed to ensure smooth material flow and prevent blockages.
Advantages:
Increased Recovery Rate: Through refined processing, the gold extraction and gold grinding machine can effectively increase gold recovery rates, reduce resource waste, and enhance the company's economic benefits.
Reduced Energy Consumption: The equipment's high efficiency and low energy consumption significantly reduce energy consumption during production, lowering operating costs. High Operational Safety: Advanced control systems and multiple safety features ensure safe operation and reduce the risk of accidents.
Easy Maintenance: The equipment's rational structure facilitates maintenance and overhaul, reducing downtime and improving production efficiency.
Continuous Innovation: Its high efficiency, economical, and safe features make it an ideal choice for mining companies looking to increase production and recovery rates. With the continuous advancement of technology, gold mills will continue to develop. Through continuous optimization and upgrading, they will bring higher efficiency and lower costs to mining operations, driving the progress and development of the entire industry.
Strong Adaptability: Flexible adjustments can be made to suit different ore characteristics and production requirements, offering a wide range of adaptability to meet diverse mineral processing needs.
Specification:
|
Model
|
Feeding size
(mm)
|
Output size
(mm)
|
Capacity
(t/h)
|
Speed
(r/min)
|
Motor power
(kw)
|
Weight
(kg)
|
|
900
|
<15
|
0.6-0.07
|
0.3
|
17-19
|
5.5
|
3500
|
|
1000
|
<20
|
0.6-0.07
|
0.5
|
16-18
|
5.5
|
4800
|
|
1100
|
<20
|
0.6-0.07
|
0.6-0.8
|
16-18
|
7.5
|
5200
|
|
1200B
|
<20
|
0.6-0.07
|
0.8-1.2
|
16-18
|
7.5
|
5530
|
|
1200A
|
<20
|
0.6-0.07
|
1-1.3
|
21-23
|
7.5
|
5500
|
|
1300
|
<20
|
0.6-0.07
|
1.5
|
16-18
|
15
|
7600
|
|
1400
|
<20
|
0.6-0.07
|
1.5-2
|
16-18
|
18.5
|
8550
|
|
1500B
|
<30
|
0.6-0.07
|
2.5-3
|
20-22
|
22
|
12000
|
|
1600
|
<30
|
0.6-0.07
|
4-5
|
20-22
|
30
|
14600
|
