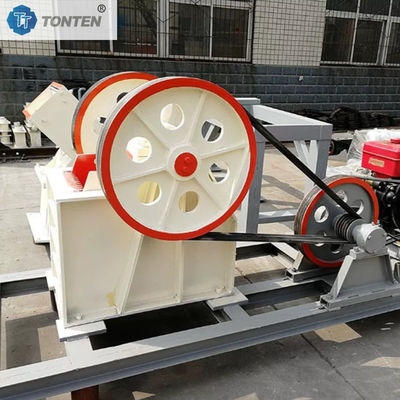

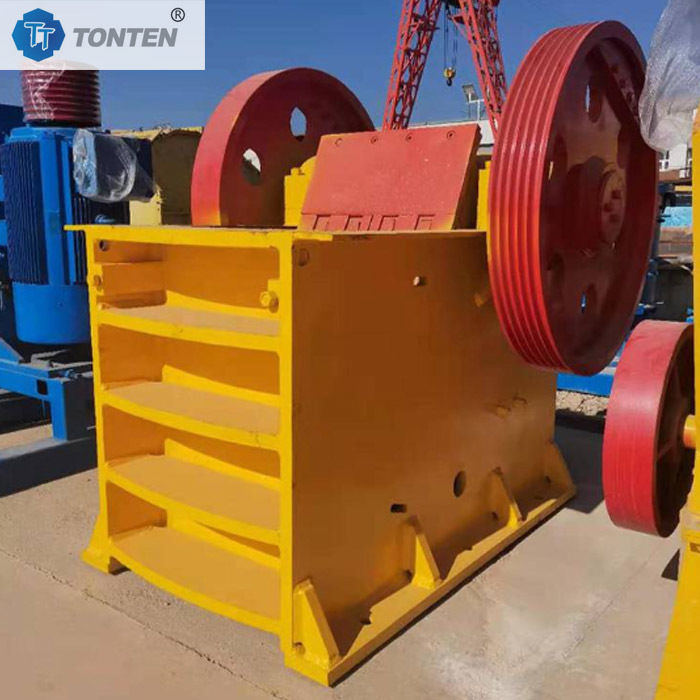

High Quality 250x400 Stationary Jaw Crusher 5-20t/H Small Crusher For Gold Mining

High Quality 250x400 Stationary Jaw Crusher 5-20t/H Small Crusher For Gold Mining

Product Introduction:

Jaw crushers are widely used for crushing various mineral materials, such as stone, granite, porous rock, coke, coal, manganese, ore sand, iron ore, diamond sand, molten aluminum, oxides, molten carbides, limestone, quartzite, alloys, etc. Mobile tires can be installed at the bottom to make the machine move more conveniently. Diesel engines generate electricity, making them particularly suitable for workplaces without electricity or where frequent machine movement is required. The advantages of the jaw crusher are: it is not easy to be damaged, the machine is durable and has few vulnerable parts.

Product Parameters:

Working Principle:

The motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger, so as to push the movable jaw plate to approach the fixed jaw plate. At the same time, the materials are crushed or split to achieve the purpose of crushing; When the movable jaw descends, the included angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crusher jaw makes periodic movement to crush and discharge materials, so as to realize mass production.

Product Features:

1. The crushing cavity is deep and has no dead zone, which improves the feeding capacity and output;

2. Its crushing ratio is large and the product particle size is uniform;

3. The gasket type discharge port adjustment device is reliable and convenient, with a large adjustment range, which increases the flexibility of the equipment;

4. Lubrication system, easy to replace components and small maintenance workload;

5. Simple structure, reliable operation and low operation cost;

6. Energy saving of equipment: energy saving of single machine is 30%~40%, and energy saving of system is more than twice;

7. The discharge port has a large adjustment range, which can meet the needs of different users;

8. Low noise and less dust.

Packing Details:

1.Standard export packing or according to customer's requirements.
2.If bulk purchasing, We will use standard container. High output full automatic concrete block making machine delivery.
