Limestone Mining Impact Crusher Machine Mobile Impact Crusher For Sale

Product Details:

Place of Origin: China
Brand Name: TONTEN
Model Number: TPF-1007

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 9000-9800USD
Packaging Details: standard international export packing, container or as required
Delivery Time: 7-15 work days
Payment Terms: T/T
Supply Ability: 30 sets/month
Get Best Price Contact Now

Detail Information

Name: Limestone Mining Impact Crusher Machine Capacity: 30-50t/hour
Motor Power: 37-55kw Weight: 9500kgs
LxWxH: 2400x1558x2660mm Max Feed Size: 300mm
Feed Port: 400x730mm Specification: 1000x700

Product Description

Limestone Mining Impact Crusher Machine Mobile Impact Crusher For Sale



Introduction:

Impact crushers machine primarily utilize impact energy—complemented by inter-particle collisions (the "rock-on-rock" effect)—to achieve highly efficient crushing. They offer a high reduction ratio, capable of crushing large feed material (up to 500 mm in size and 350 MPa in compressive strength) into fine finished products in a single stage, thereby simplifying the crushing circuit (e.g., by eliminating a crushing stage).
The finished products feature excellent particle shape, predominantly cubic in form; the output size can be adjusted—either continuously or in discrete steps—by varying the gap settings or rotor speed, allowing the machine to meet diverse specification requirements.



Impact Crusher Structure:
Frame: Heavy-duty welded or cast steel structure consisting of upper and lower housing sections with internal wear-resistant liners; equipped with access doors and hydraulic or mechanical opening mechanisms for quick maintenance.
Rotor Assembly: Comprising the main shaft, rotor discs, and blow bars, this is the core impact component; it features high rotational inertia and requires precise dynamic balancing. Blow bars are typically made of wear-resistant materials like high-chromium cast iron or high-manganese steel and are reversible or replaceable.
Impact Assembly (Impact Rack + Impact Plate): Usually features multi-stage (front and rear) impact racks with angled or arc-shaped impact plates fitted with wear-resistant liners. One end is hinged, while the other allows for gap adjustment via tie rods or hydraulic cylinders; the assembly serves both crushing and overload protection functions (retracting to allow passage of uncrushable material).
Drive System: Motor and narrow V-belt pulleys (or coupling plus gearbox) drive the rotor at high speeds; some models utilize keyless expansion sleeve connections for easy assembly and disassembly.
Adjustment and Protection Systems:
Gap Adjustment: Mechanical screw rods or fully hydraulic systems adjust the position of the impact racks.
Overload Protection: Spring-loaded or gravity-based safety mechanisms and hydraulic relief/retraction systems.
Auxiliary Features: Vibration damping devices, dust sealing, chain curtains (to prevent material splash at the feed inlet), etc.



Specifications:

Model Specification Feed size Motor power Machine weight Dimension Capacity
TPF-1007 1000x700 400x730mm 37-55kw 9500kgs 2400x1558x2660mm 30-50t/hour
TPF-1010 1000x1050 400x1080mm 55-75kw 12200kgs 2400x2250x2620mm 50-80t/hour
TPF-1210 1250x1050 400x1080mm 110-132kw 14900kgs 2690x2338x2890mm 70-120t/hour
TPF-1214 1250x1400 400x1430mm 132-160kw 18600kgs 2690x2668x2890mm 110-180t/hour
TPF-1315 1320x1500 860x1520mm 180-260kw 19300kgs 3096x3273x2667mm 160-250t/hour
TPF-1320 1320x2000 860x2030mm 300-375kw 28000kgs 3096x3560x3185mm 160-350t/hour
TPF-1520 1500x2000 1315x2040mm 400-450kw 42800kgs 3890x3560x3220mm 300-500t/hour

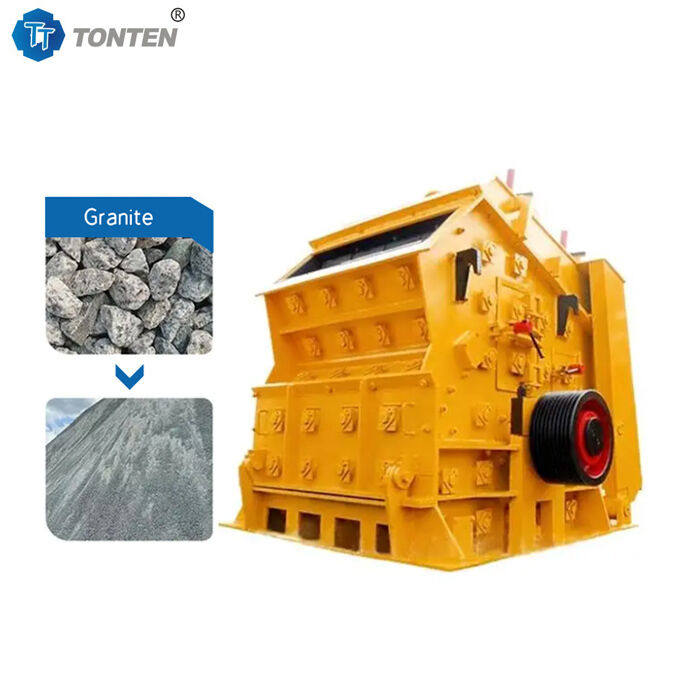

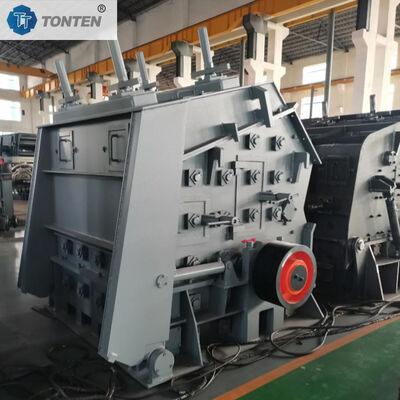

Limestone Mining Impact Crusher Machine Mobile Impact Crusher For Sale 0Limestone Mining Impact Crusher Machine Mobile Impact Crusher For Sale 1
